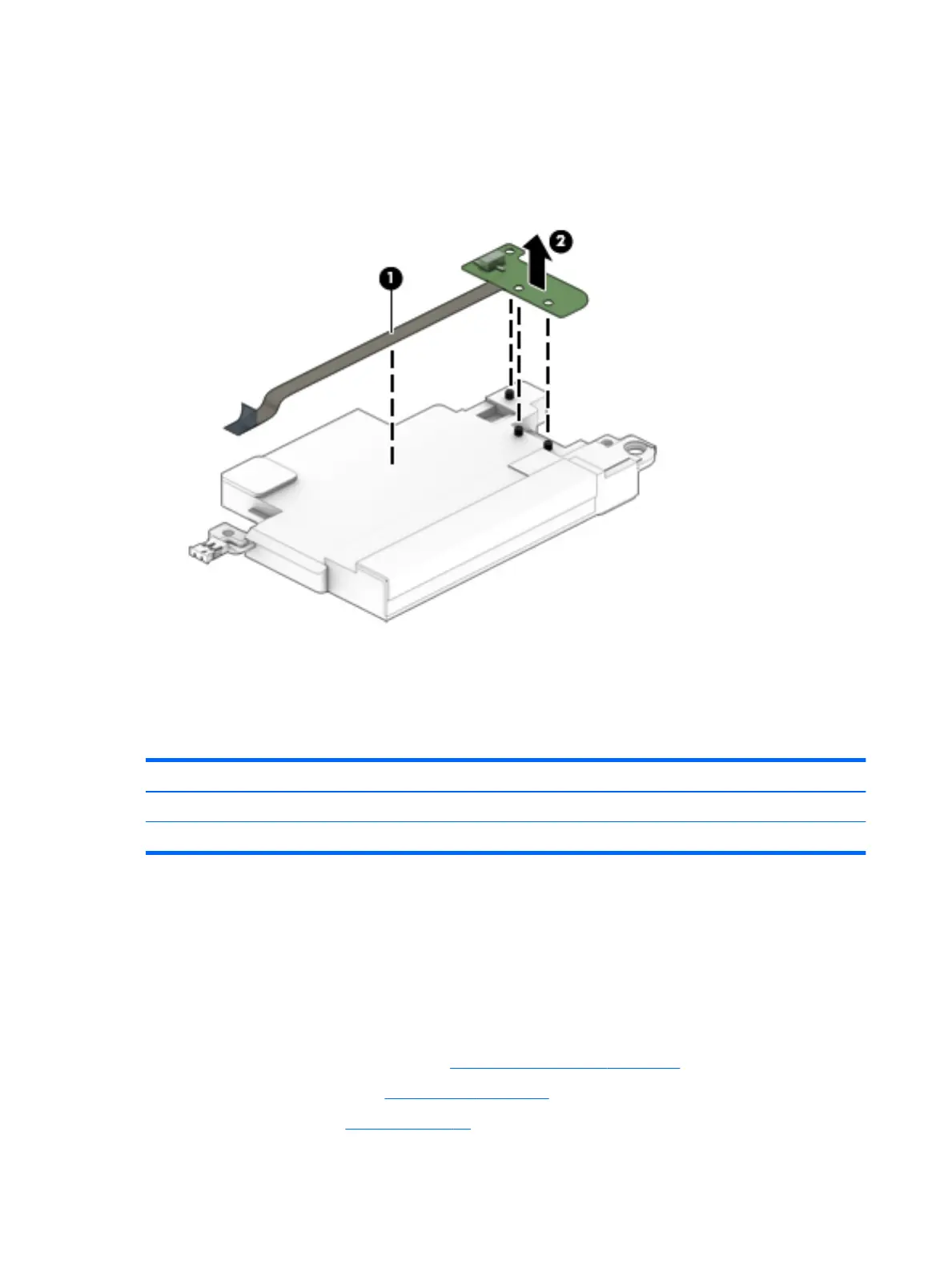

Remove the power button board:
1. Detach the power button board cable (1) from the right speaker. (The power button board cable is
attached to the right speaker with double-sided adhesive.)
2. Detach the power button board (2) from the back cover. (The power button board is attached to
the back cover with double-sided adhesive.)
3. Remove the power button board and cable.
Reverse this procedure to install the power button board.
Microphones
Description Spare part number
Left microphone (includes cable and rubber isolators) 924840-001
Right microphone (includes cable and rubber isolators) 924839-001
Before removing the microphones, follow these steps:
1. Shut down the tablet. If you are unsure whether the tablet is o or in Hibernation, turn the tablet on,
and then shut it down through the operating system.
2. Disconnect all external devices connected to the tablet.
3. Disconnect the power from the tablet by rst unplugging the power cord from the AC outlet, and then
unplugging the AC adapter from the tablet.
4. Remove the display panel assembly (see Display panel assembly on page 20).
5. Remove the bottom bezel (see Bottom bezel on page 24).
6. Remove the battery (see Battery on page 25).
38 Chapter 5 Removal and replacement procedures
