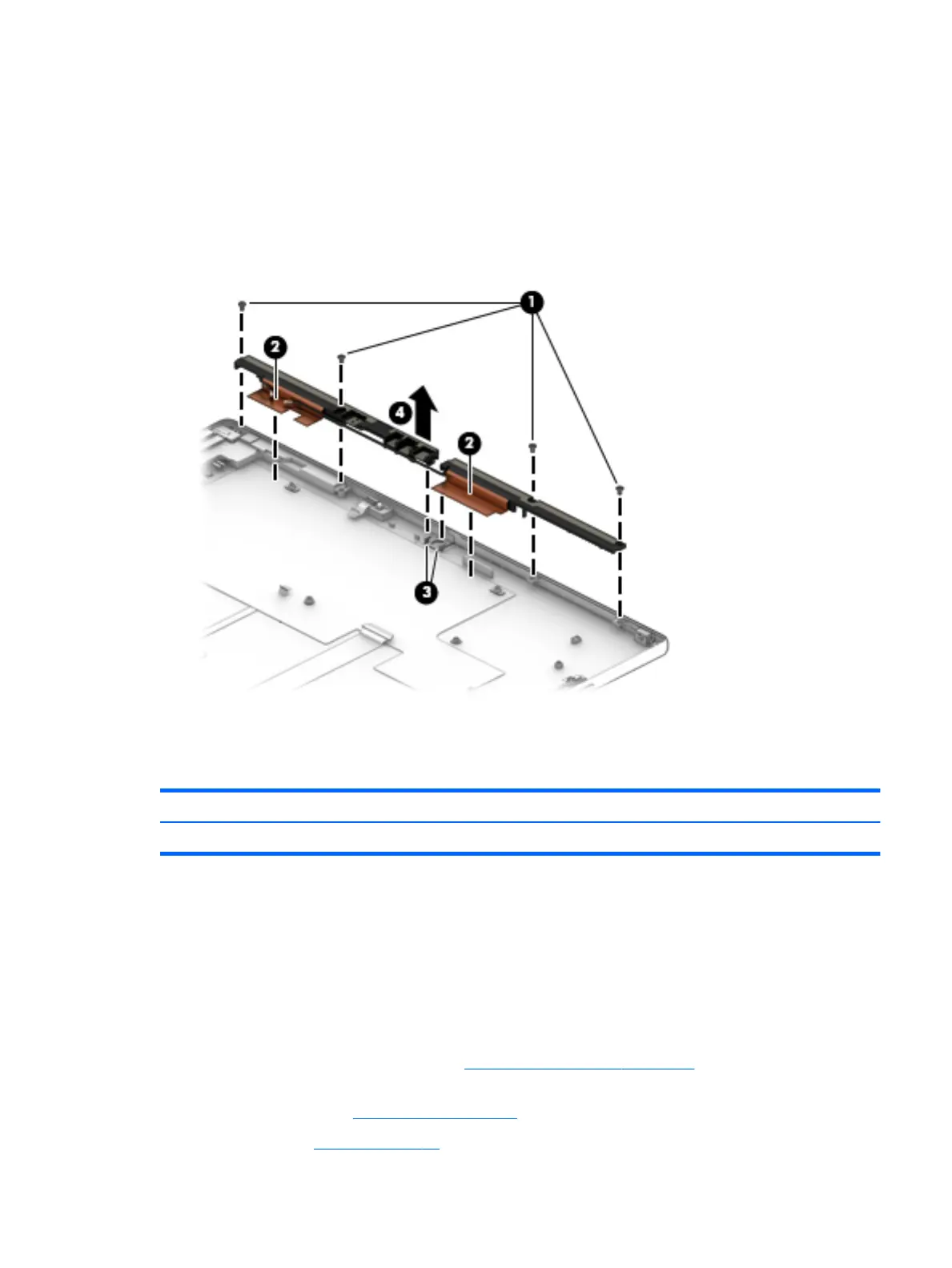

Remove the wireless antenna:
1. Remove the four Phillips PM2.0×3.8 screws (1) that secure the wireless antenna transceivers to
the back cover.
2. Detach the wireless antenna transceivers (2) from the back cover. (The wireless antenna transceivers are
attached to the back cover with double-sided adhesive.)
3. Release the wireless antenna cable from the retention clip (3) built into the back cover.
4. Remove the wireless antenna cables (4) and transceivers.
Reverse this procedure to install the wireless antenna.
Left speaker
Description Spare part number
Left speaker (includes cable) 924846-001
Before removing the left speaker, follow these steps:
1. Shut down the tablet. If you are unsure whether the tablet is o or in Hibernation, turn the tablet on,
and then shut it down through the operating system.
2. Disconnect all external devices connected to the tablet.
3. Disconnect the power from the tablet by rst unplugging the power cord from the AC outlet, and then
unplugging the AC adapter from the tablet.
4. Remove the display panel assembly (see Display panel assembly on page 20), and then remove
the following components:
a. Bottom bezel (see Bottom bezel on page 24)
b. Battery (see Battery on page 25)
Component replacement procedures 51
