HP Spectre x2

POGO pin connector cable
Description Spare part number
Display panel cable (includes double-sided adhesive) 924173-001
Before removing the POGO pin connector cable, follow these steps:
1. Shut down the tablet. If you are unsure whether the tablet is o or in Hibernation, turn the tablet on,
and then shut it down through the operating system.
2. Disconnect all external devices connected to the tablet.
3. Disconnect the power from the tablet by rst unplugging the power cord from the AC outlet, and then
unplugging the AC adapter from the tablet.
4. Remove the display panel assembly (see Display panel assembly on page 20).
5. Remove the bottom bezel (see Bottom bezel on page 24).
6. Remove the battery (see Battery on page 25).

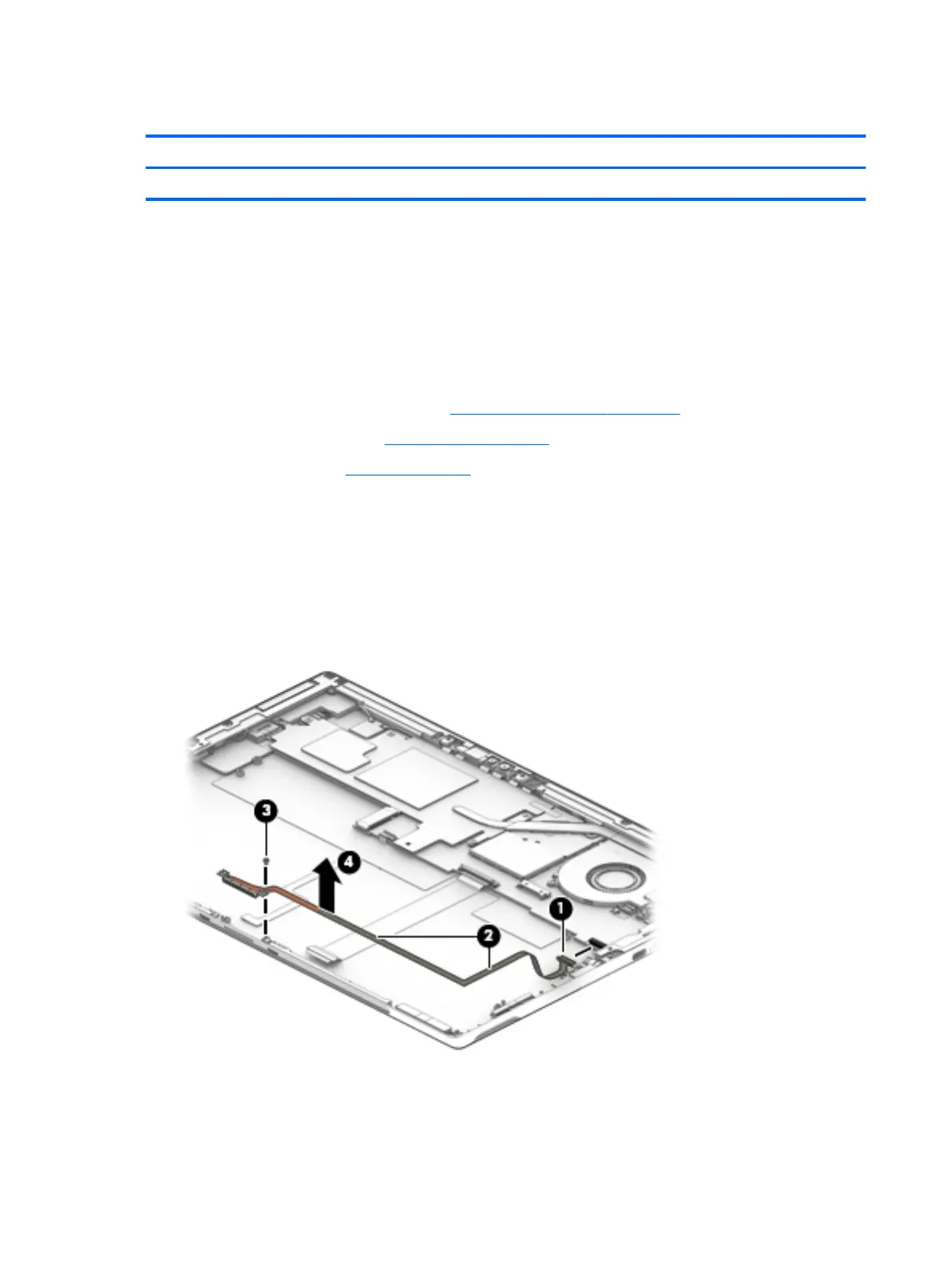

Remove the POGO pin connector cable:
1. Disconnect the POGO pin connector cable (1) from the system board.
2. Detach the POGO pin connector cable (2) from the back cover. (The POGO pin connector cable is attached
to the back cover with double-sided adhesive in two locations.)
3. Remove the Phillips PM1.5×2.2 screw (3) that secures the POGO pin connector to the back cover.
4. Remove the POGO pin connector cable (4).
5. Remove the POGO pin connector cable.
Reverse this procedure to install the POGO pin connector cable.
