Display panel cable
Description Spare part number
Display panel cable (includes double-sided adhesive) 924171-001
Before removing the display panel cable, follow these steps:
1. Shut down the tablet. If you are unsure whether the tablet is o or in Hibernation, turn the tablet on,
and then shut it down through the operating system.
2. Disconnect all external devices connected to the tablet.
3. Disconnect the power from the tablet by rst unplugging the power cord from the AC outlet, and then
unplugging the AC adapter from the tablet.
4. Remove the display panel assembly (see Display panel assembly on page 20).
5. Remove the bottom bezel (see Bottom bezel on page 24).
6. Remove the battery (see Battery on page 25).

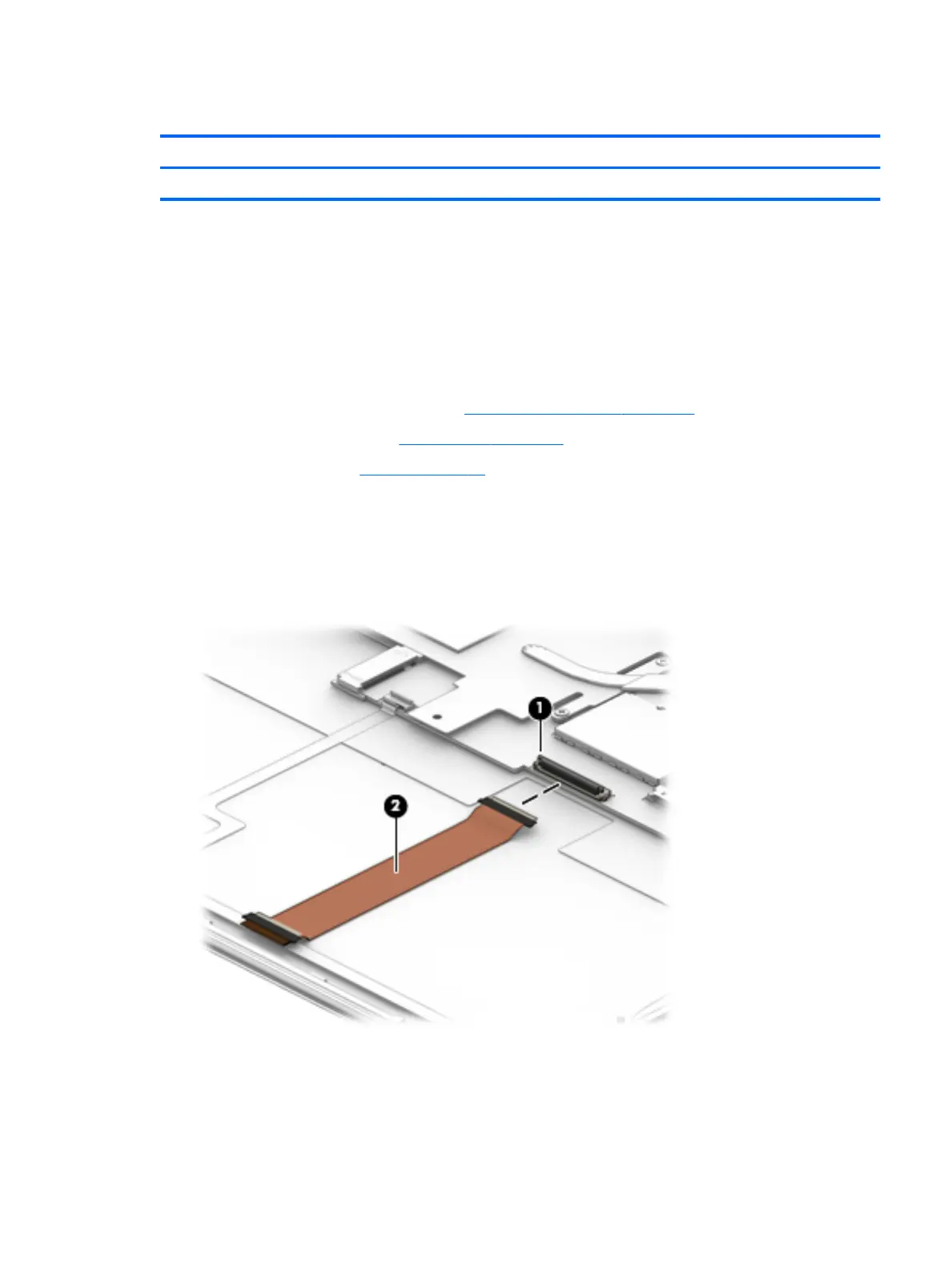

Remove the display panel cable:
1. Release the ZIF connector (1) to which display panel cable is connected, and then disconnect the display
panel cable from the system board.
2. Detach the display panel cable (2) from the back cover. (The display panel cable is attached to
the back cover with double-sided adhesive.)
3. Remove the display panel cable.
Reverse this procedure to install the display panel cable.
