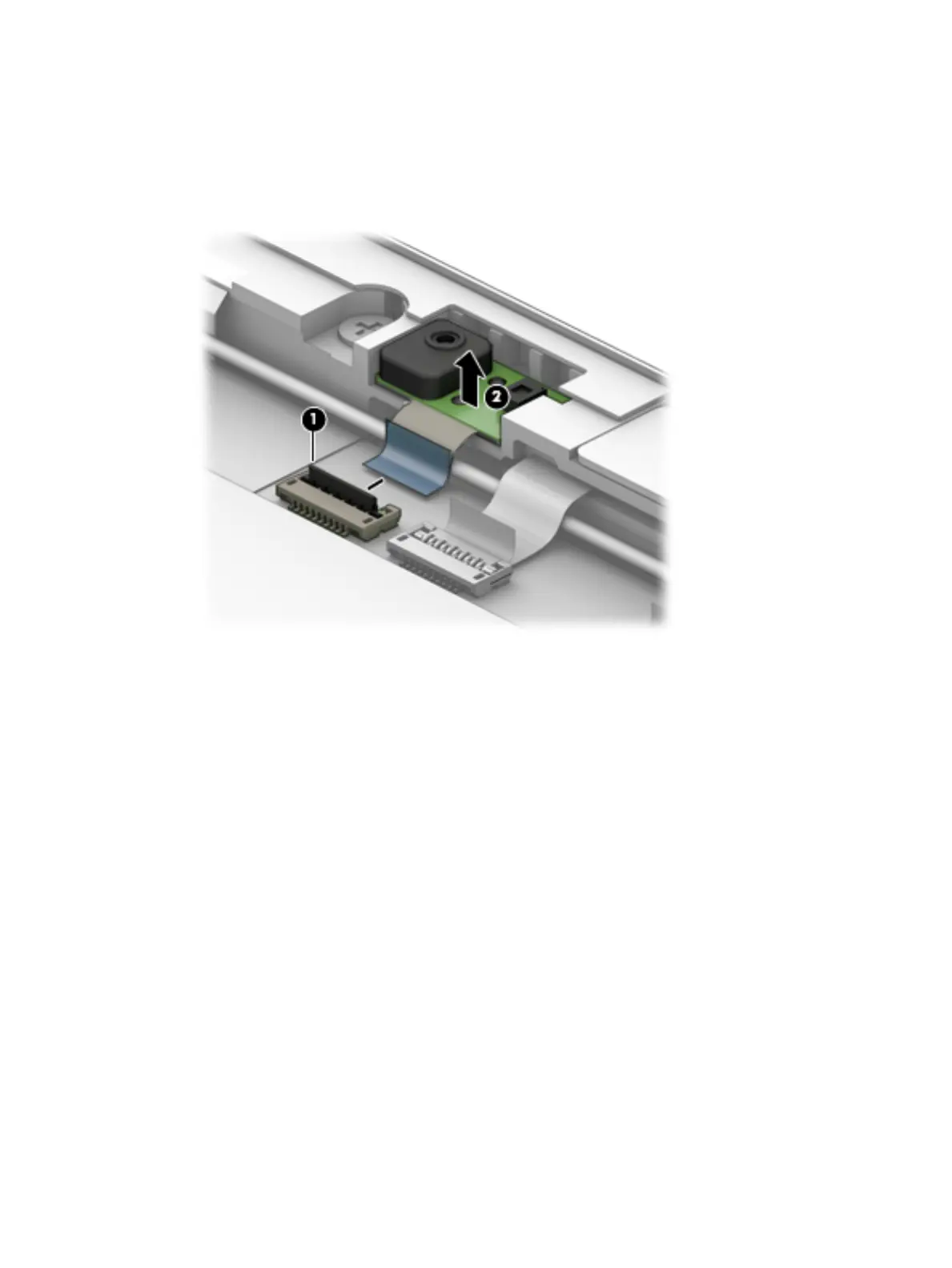

Remove the left microphone:
1. Release the ZIF connector (1) to which the left microphone cable is connected, and then disconnect
the left microphone cable from the system board.
2. Detach the left microphone (2) from the back cover. (The left microphone is attached to the back cover
with double-sided adhesive.)
3. Remove the left microphone.
Remove the right microphone:
1. Release the ZIF connector (1) to which the right microphone cable is connected, and then disconnect
the right microphone cable from the system board.
Component replacement procedures 39
