HP Spectre x2

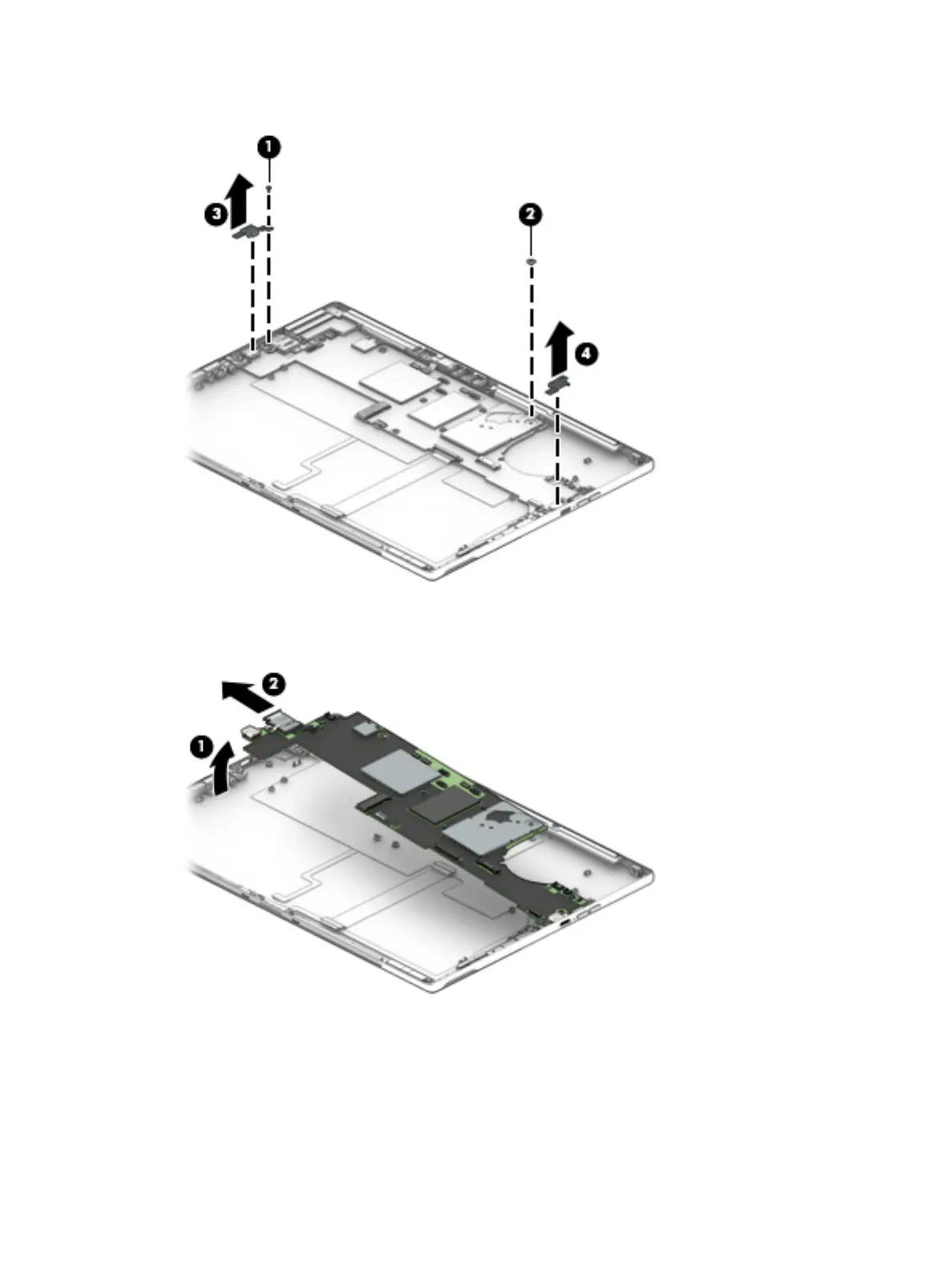

4. Remove the left (3) and right I/O brackets (4).
5. Lift the left side of the system board (1) until it rests at an angle.
6. Remove the system board (2) by sliding it up and to the left at an angle.
Reverse this procedure to install the system board.
