Remove the bottom cover:

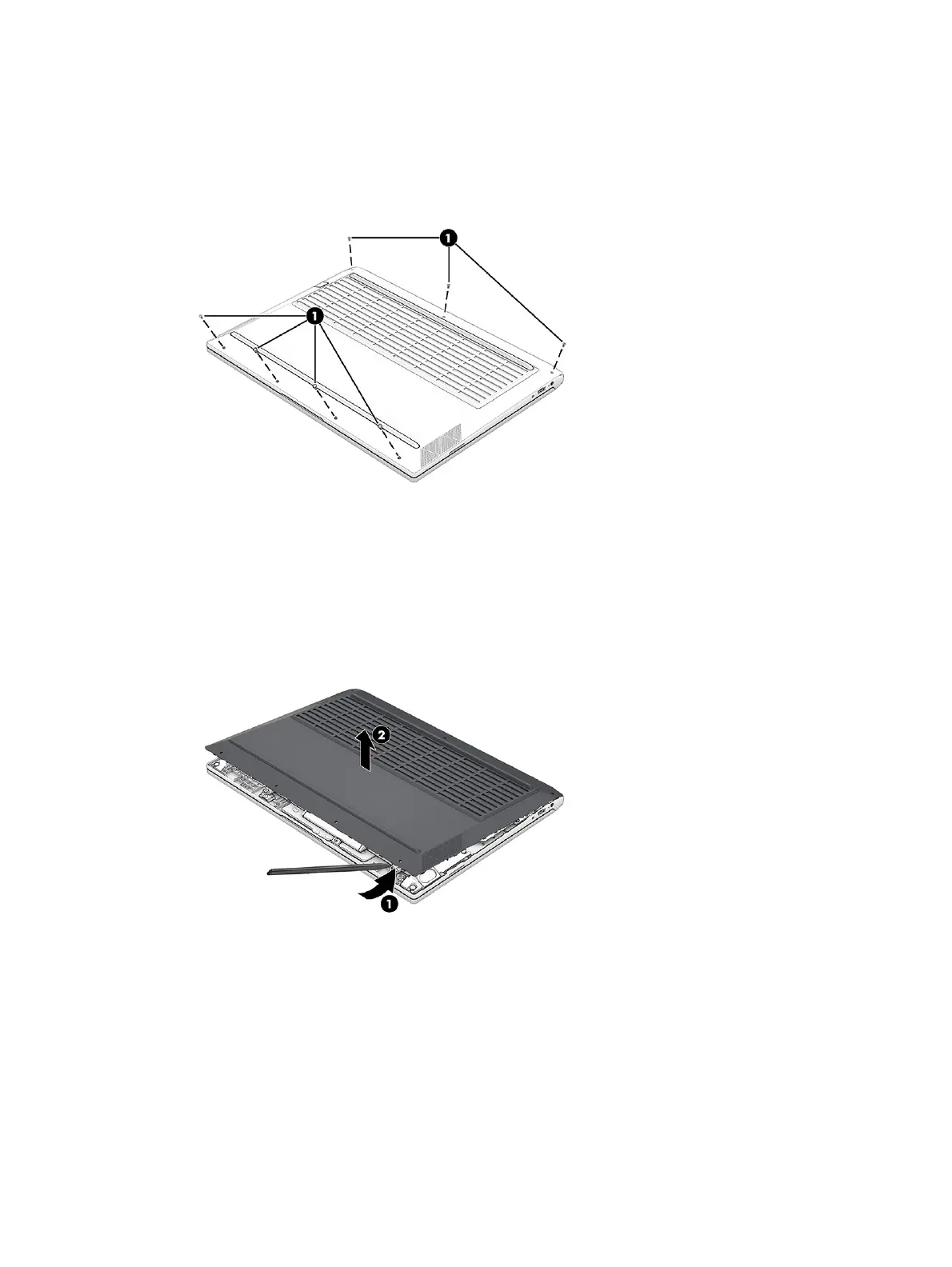

1. Close the computer and rest it upside down on a at work surface with the front toward you.
2. Remove the seven Phillips M2.0 × 5.0 screws (1) that secure the bottom cover to the computer.
3. In one of the bottom corners, insert a thin, plastic tool in the seam between the bottom cover and
computer (1) to release the cover.
4. Remove the bottom cover (2).
To replace the bottom cover, reverse the removal procedures.
When installing a bottom cover, make sure the thermal pad is installed as shown in the following illustration.
38
Chapter 6Removal and replacement procedures for authorized service provider parts
