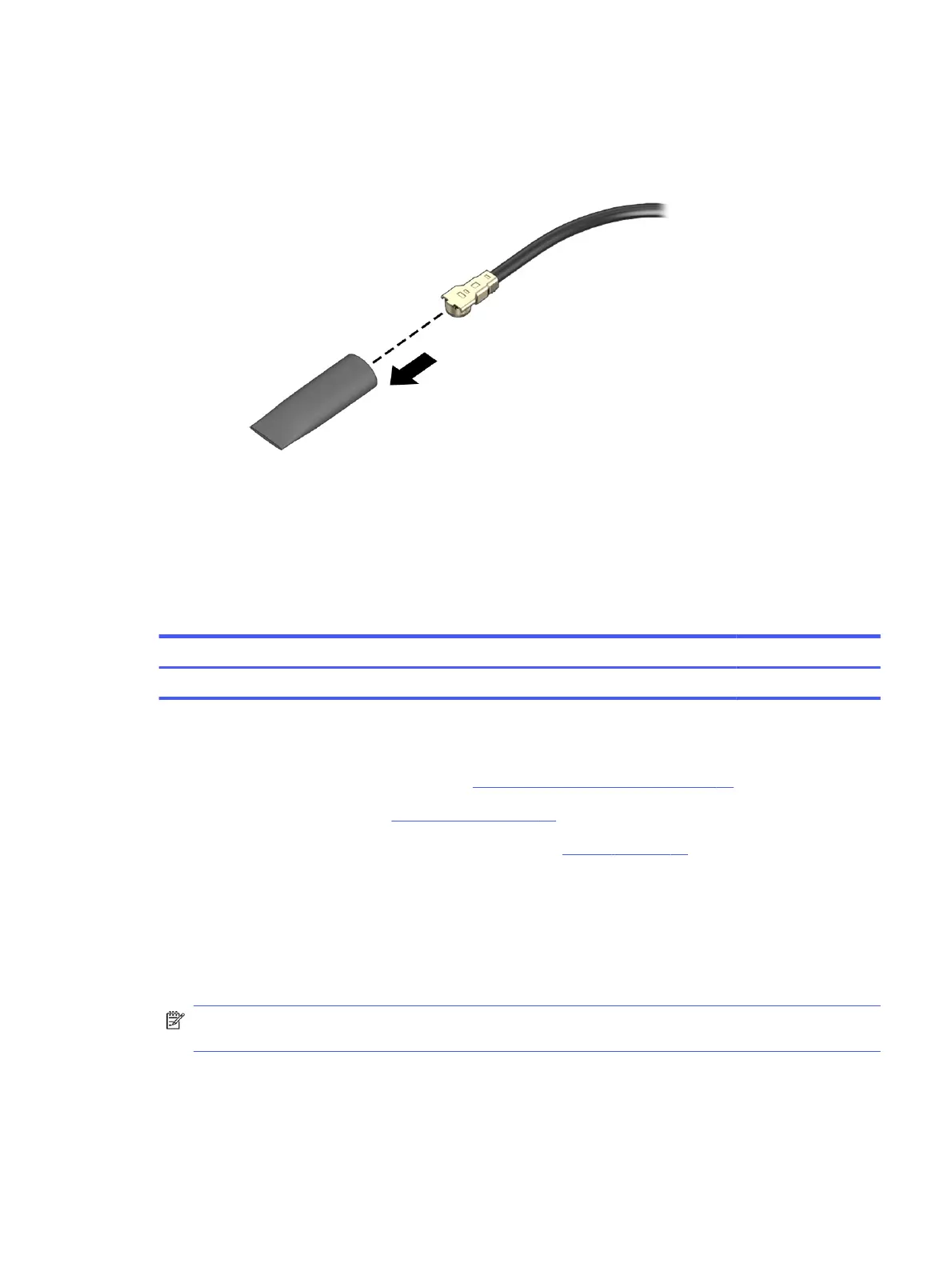

4. If the WLAN antenna is not connected to the terminal on the WLAN module, install a protective sleeve on
the antenna connector, as shown in the following illustration.
To install the WLAN module, reverse this procedure.
Speakers
To remove the speakers, use this procedure and illustration.
Table 6-4
Speaker description and part number
Description Spare part number
Speaker Kit N13315-001
Before removing thespeakers, follow these steps:
1. Prepare the computer for disassembly (see Preparation for disassembly on page 37).
2. Remove the bottom cover (see Bottom cover on page 37).
3. Disconnect the battery cable from the system board (see Battery on page 39).
Remove the speakers:
1. Remove the two Phillips M2.0 × 2.0 broadhead screws (1) that secure each speaker to the computer.
2. Disconnect the speaker cables from the system board (2).
3. Remove the speakers from the computer (3) .
NOTE: When removing the speakers, make note of the location of the rubber isolators. The absence of
or damage to these isolators can result in degraded speaker performance.
Speakers
45
