WARNING! To reduce potential safety issues, use only the user-replaceable battery provided with the
computer, a replacement battery provided by HP, or a compatible battery purchased from HP.
IMPORTANT: Removing a battery that is the sole power source for the computer can cause loss of
information. To prevent loss of information, save your work or shut down the computer through Windows
before you remove the battery.

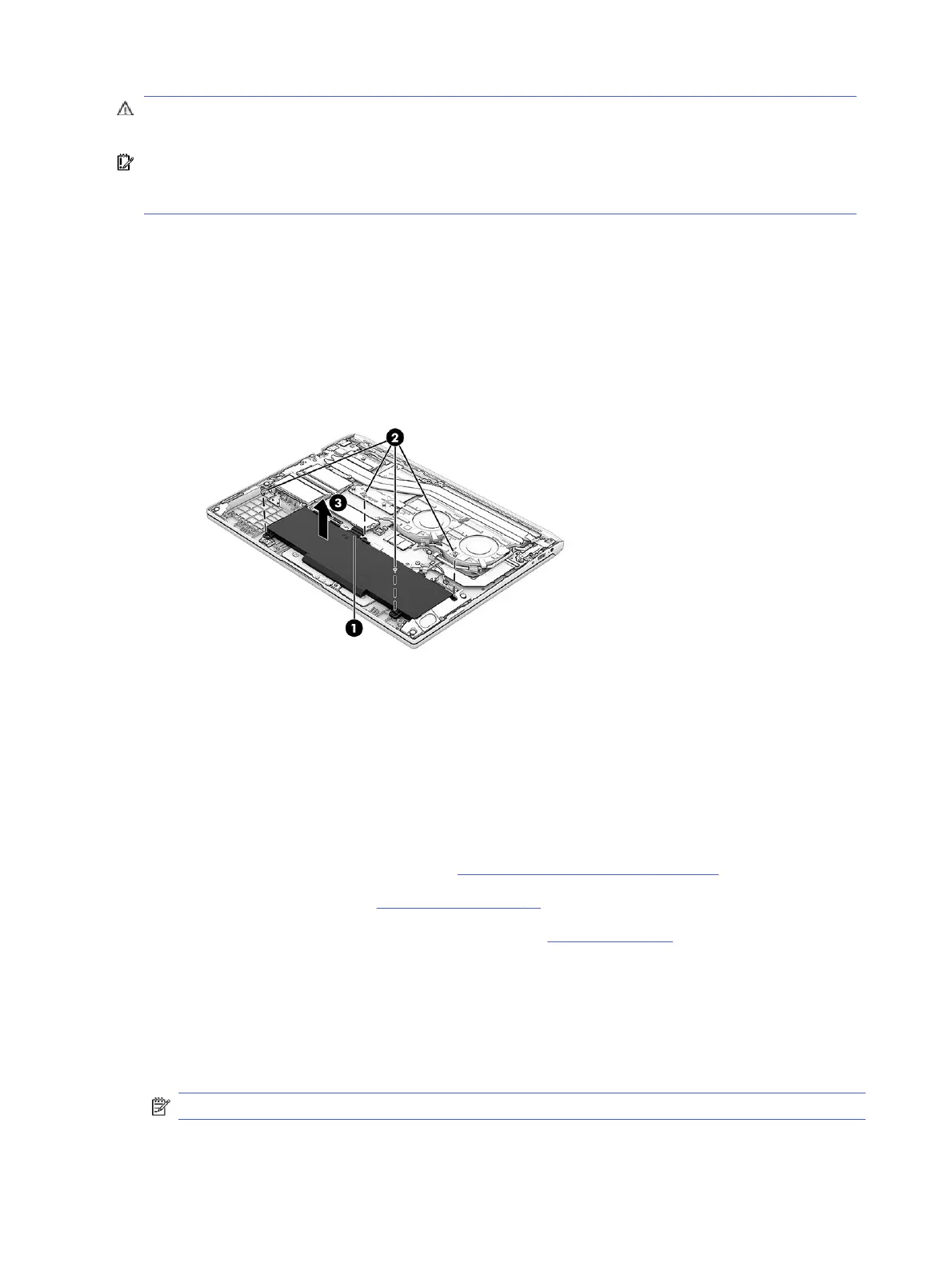

Remove the battery:
1. Disconnect the battery cable (1) from the system board.
2. Remove the six Phillips M2.0 × 5.0 screws (2) that secure the battery to the computer.
3. Remove the battery (3).
To install the battery, reverse the removal procedures.
Display subcomponents (without removing the display)
You can remove some display subcomponents without removing the entire display assembly from the
computer. To remove the bezel, display panel, and camera module, use these procedures and illustrations.
Before removing thedisplay subcomponents, follow these steps:
1. Prepare the computer for disassembly (see Preparation for disassembly on page 37).
2. Remove the bottom cover (see Bottom cover on page 37).
3. Disconnect the battery cable from the system board (see Battery on page 39).
Remove the display assembly:
1. You can remove the bezel with the display assembly connected to the computer. To remove the bezel:
a. Flex the top (1), the left and right sides (2), and then the bottom of the bezel (3) to release it.
b. Remove the bezel from the display (4).
NOTE: The display assembly remains attached to the computer for these procedures.
