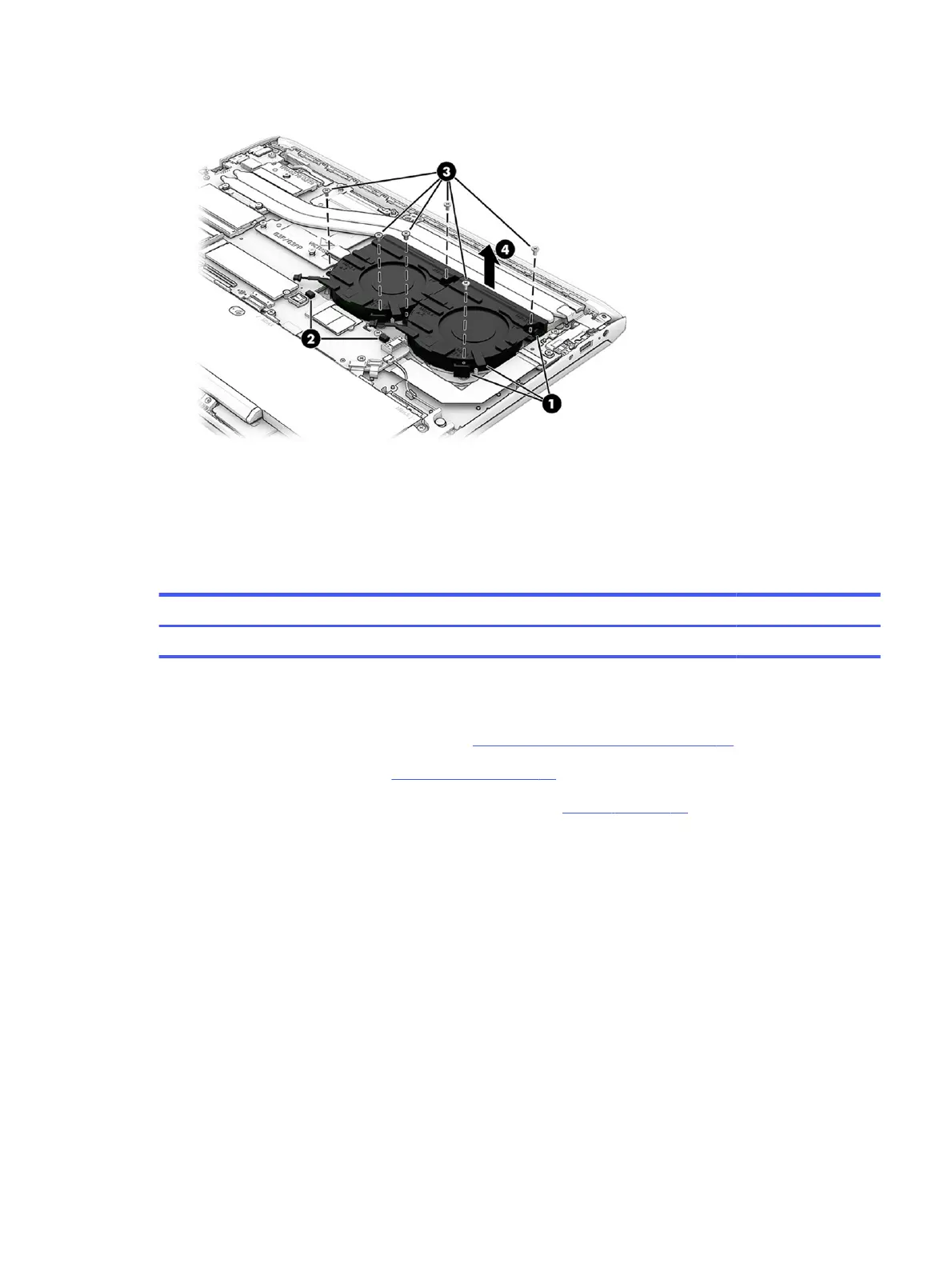

4. Remove the fan assembly from the computer (4).
To install the fan assembly, reverse this procedure.
Power connector cable
To remove the power connector cable, use this procedure and illustration.
Table 6-6
Power connector cable description and part number
Description Spare part number
Power connector cable N13314-001
Before removing the power connector cable, follow these steps:
1. Prepare the computer for disassembly (see Preparation for disassembly on page 37).
2. Remove the bottom cover (see Bottom cover on page 37).
3. Disconnect the battery cable from the system board (see Battery on page 39).
Remove the power connector cable:
1. Remove the Phillips M2.0 × 4.0 screws (1) that secures the bracket, and then remove the bracket (2).
2. Disconnect the cable from the system board (3).
Power connector cable 47
