3. Lift the left side of the heat sink up, and then pull it up and left to remove it (4).
4. Thoroughly clean the thermal material from the surfaces of the heat sink and the system board
components each time the heat sink is removed. Replacement thermal material is included with the
heat sink and system board spare part kits. The following illustrations show the replacement thermal
material locations.

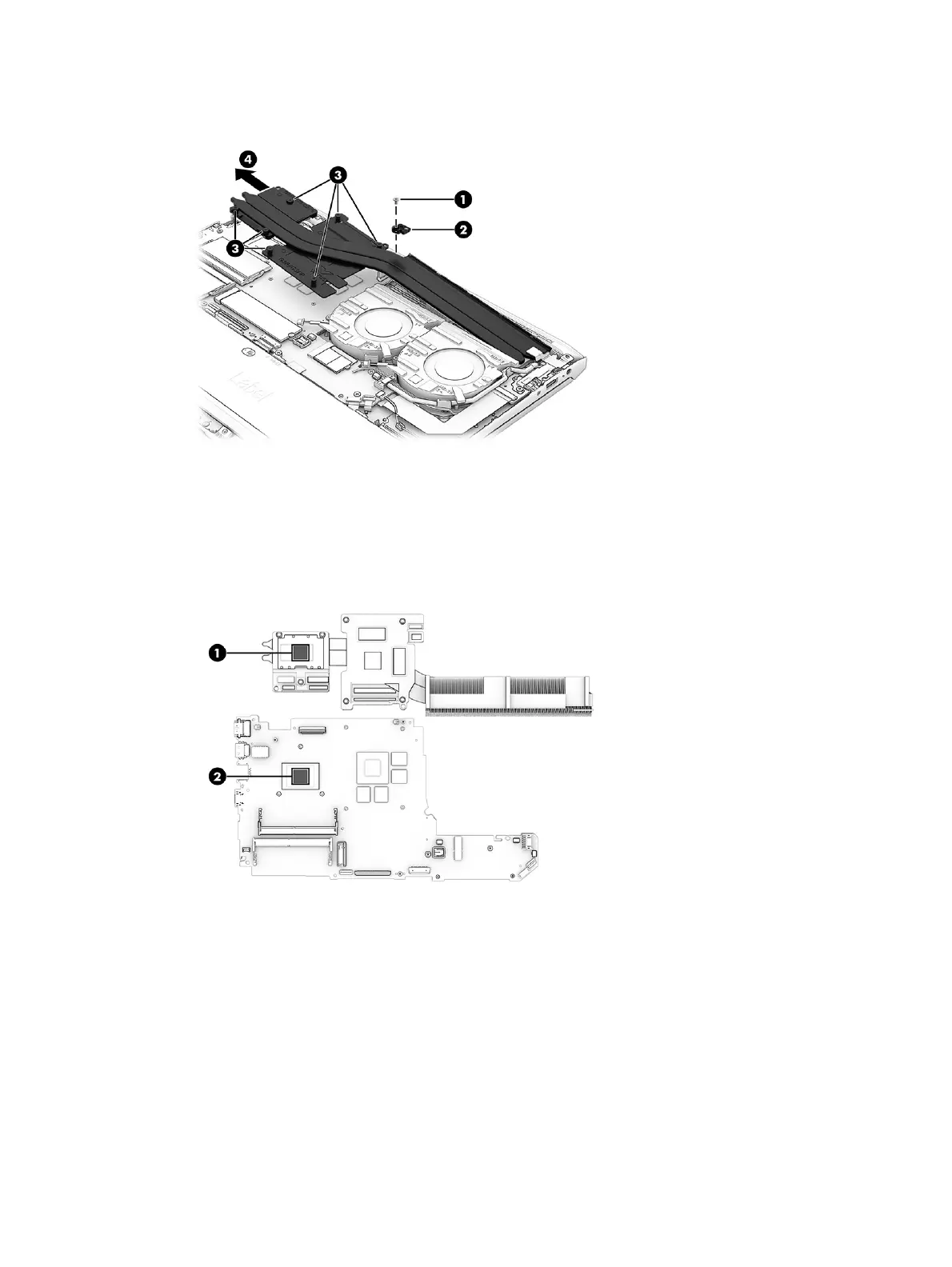

Thermal paste is used on the heat sink (1) and on the processor component on the system board (2).
Heat sink 51
