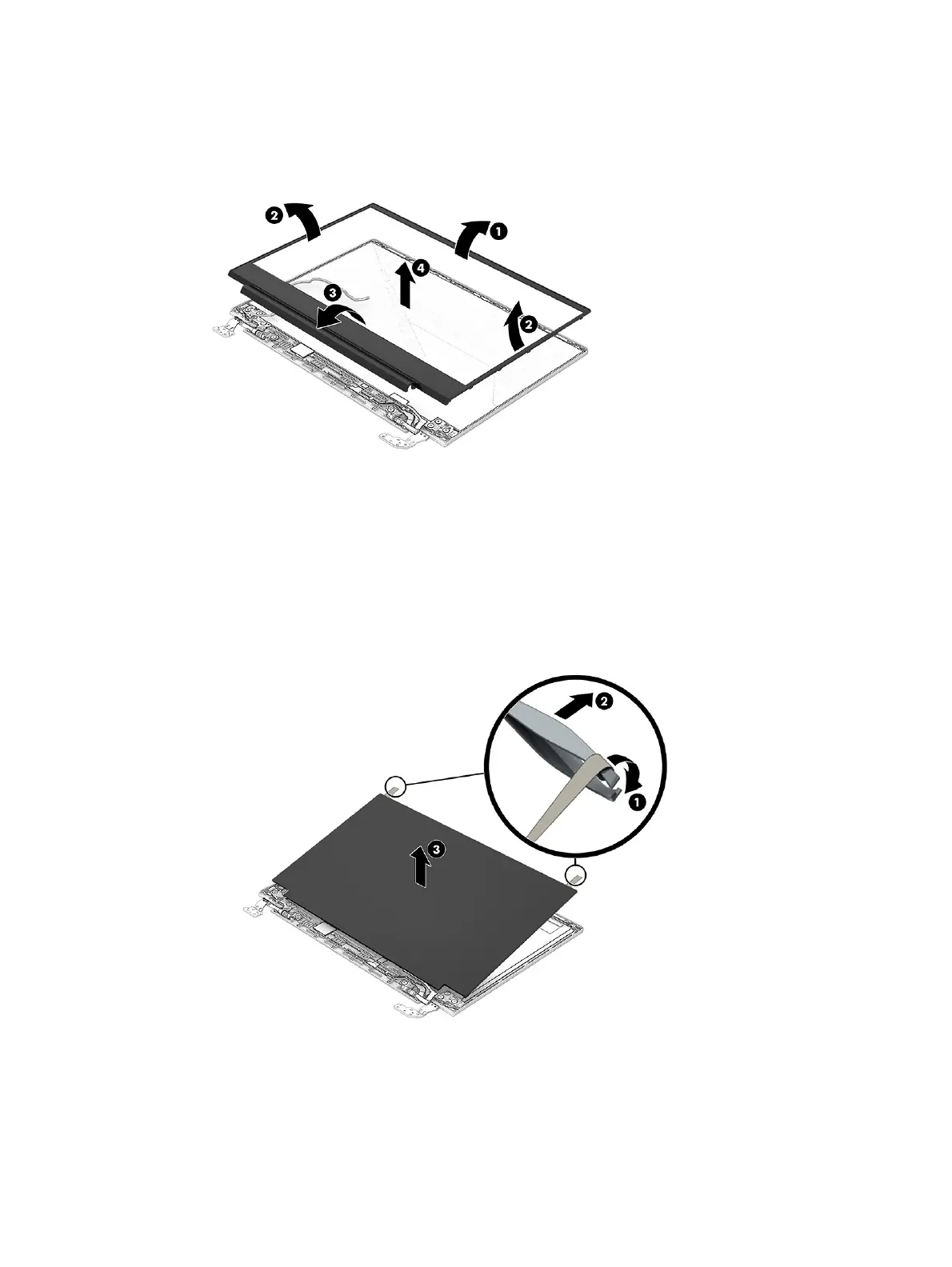

b. Remove the bezel from the display (4).
The display bezel is available as spare part number N13327-001.
5. If you need to remove the display panel:
a. At the top of the panel, use tweezers to grasp the end of the retention tape that is installed under
the panel in three locations.
b. While turning the tweezers (1), wrap the tape around the tweezers as you continue to pull the tape
(2) out from behind the display panel.
c. Rotate the panel up and set it next to the display back cover (3).
Display assembly 59
