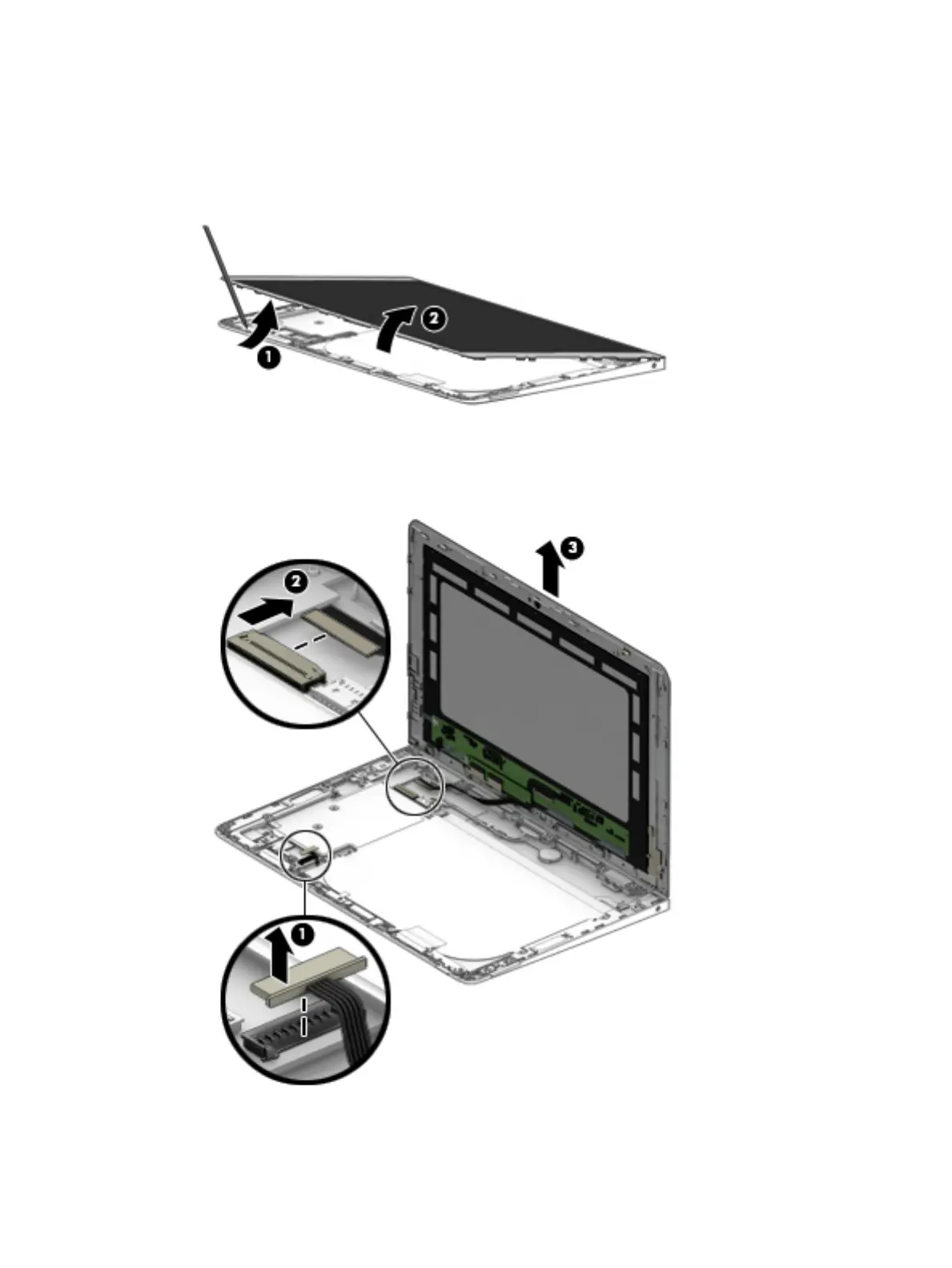

1. Place the tablet on a at surface, display panel side down.
2. Starting from the sides, insert a thin, plastic tool in the seam to disengage the top and bottom of the
display (1).
3. Remove the back cover (2).
4. Disconnect the battery cable from the system board (1).
5. Disconnect the display cable from the system board (2), and then remove the display from the enclosure
(3).
Reverse this procedure to install the back cover.
Tablet component replacement procedures 23
