Front webcam module
Description Spare part number
Front webcam module (includes microphone rubber) 902255-001
Front webcam cable 902355-001
Before removing the front webcam module, follow these steps:
1. Turn o the tablet. If you are unsure whether the tablet is o or in Hibernation, turn the tablet on, and
then shut it down through the operating system.
2. Disconnect the power from the tablet by unplugging the power cord from the tablet.
3. Disconnect all external devices from the tablet.
4. Remove the back cover (see Back cover on page 22).

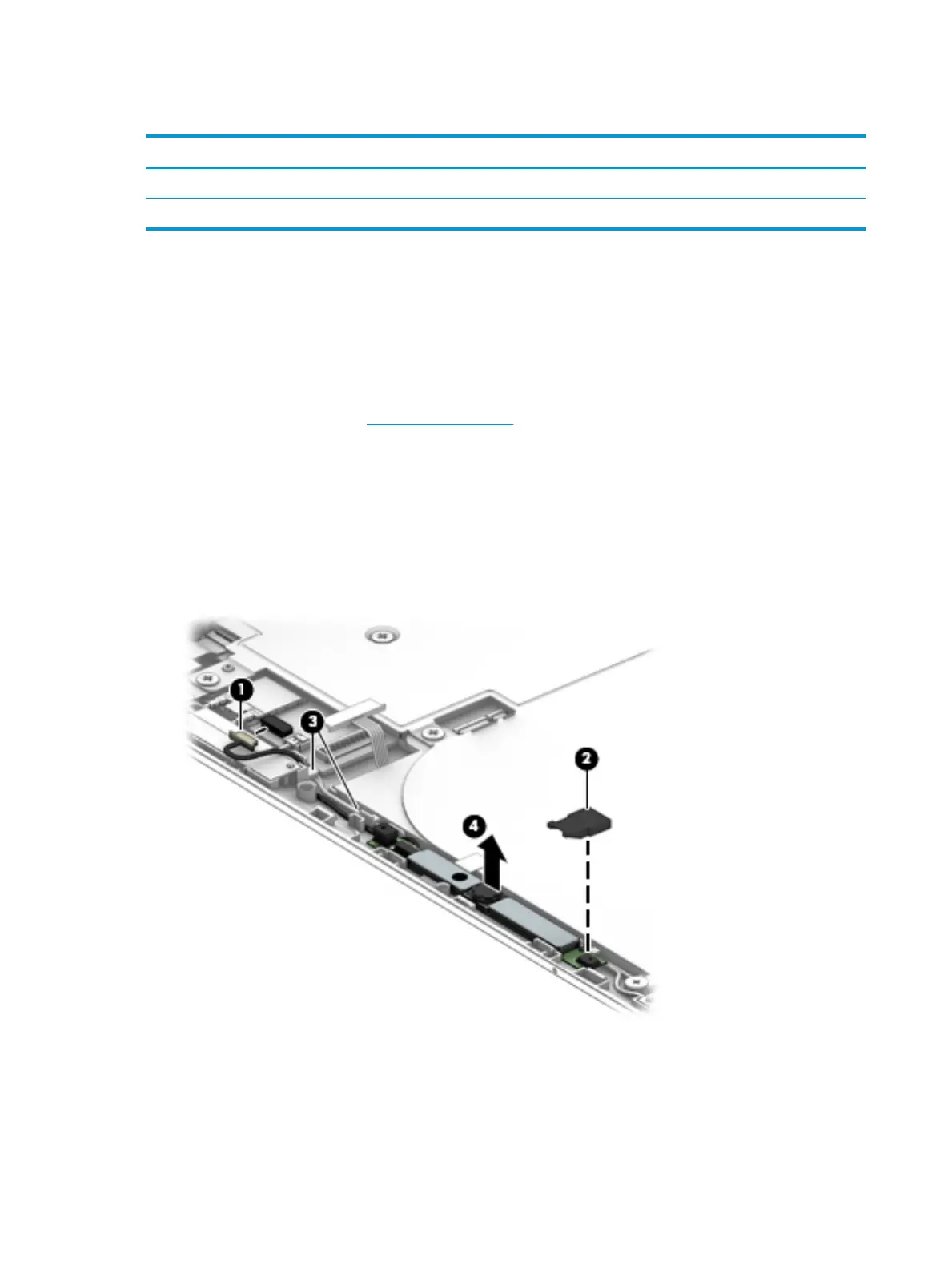

Remove the front webcam module:
1. Disconnect the webcam cable from the system board (1).
2. Lift the microphone rubber piece up and o the right side of the module (2).
3. Remove the cable from its routing path (3).
4. Remove the webcam module (4) from the display panel assembly (The webcam module cable is
attached to the display panel assembly with double-sided adhesive.
5. Remove the front webcam module and cable.
Reverse this procedure to install the front webcam module.
26 Chapter 5 Removal and replacement procedures
