Audio board
Description Spare part number
Audio board 902368-001
Audio board bracket 902361-001
Audio board cable 902351-001
Before removing the audio board, follow these steps:
1. Turn o the tablet. If you are unsure whether the tablet is o or in Hibernation, turn the tablet on, and
then shut it down through the operating system.
2. Disconnect the power from the tablet by unplugging the power cord from the tablet.
3. Disconnect all external devices from the tablet.
4. Remove the back cover (see Back cover on page 22).
5. Remove the LCD shield (see LCD shield on page 28).
6. Remove the battery (see Battery on page 29).

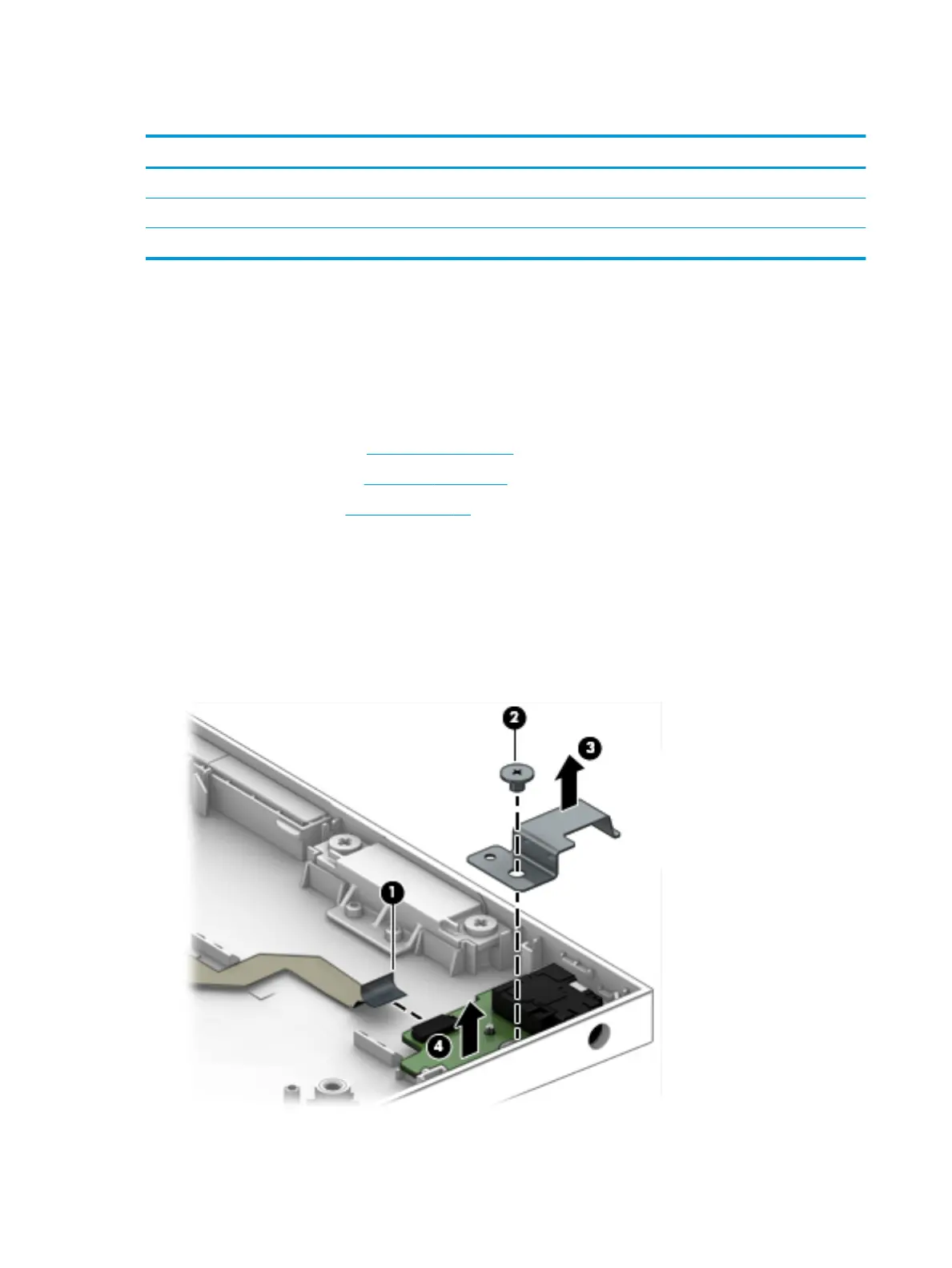

Remove the audio board:
1. Release the ZIF connector (1) to which the audio board cable is attached, and then disconnect the audio
jack board cable from the audio board.
2. Remove the Phillips PM2.0×2.0 screw (2) that secures the audio board bracket to the display assembly.
3. Lift the bracket out of the display panel assembly (3).
4. Remove the audio board (4) and cable.
Reverse this procedure to install the audio board.
32 Chapter 5 Removal and replacement procedures
