Power button board
Description Spare part number
Power button board 902369-001
Power button board cable 902352-001
Before removing the power button board, follow these steps:
1. Turn o the tablet. If you are unsure whether the tablet is o or in Hibernation, turn the tablet on, and
then shut it down through the operating system.
2. Disconnect the power from the tablet by unplugging the power cord from the tablet.
3. Disconnect all external devices from the tablet.
4. Remove the back cover (see Back cover on page 22).
5. Remove the LCD shield (see LCD shield on page 28).
6. Remove the battery (see Battery on page 29).
Remove the power button board:

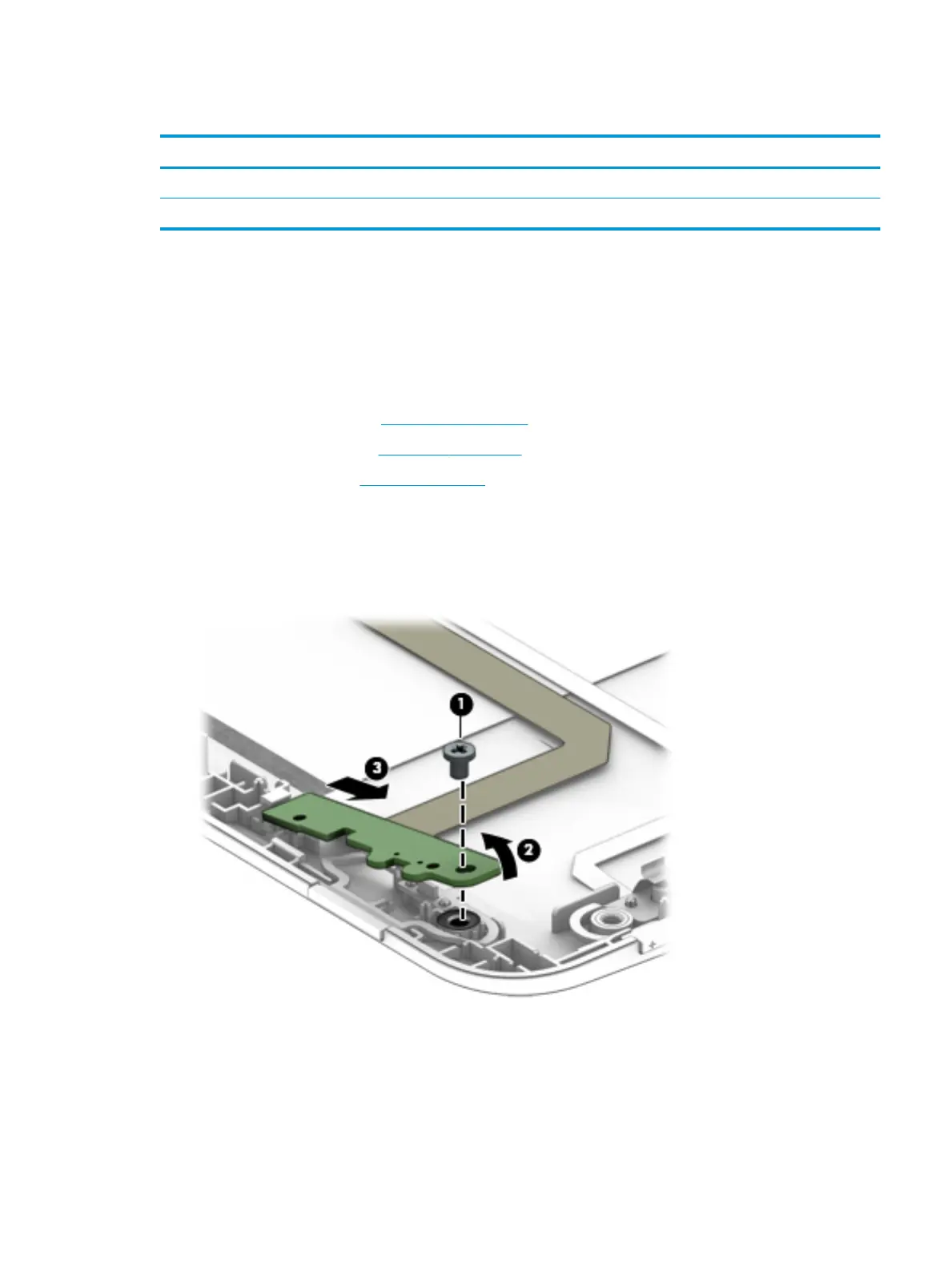

1. Remove the Phillips PM2.0×2.0 screw (1) that secures that secures the power button board to the
display panel assembly.
2. Lift the top of the board upward (2), and then pull the board out from under the tab (3).
3. Turn the board over so you can access the connector underneath (4).
4. Disconnect the cable from the system board (5).
Tablet component replacement procedures 33
