Hard drive
Description Spare part number
Hard drive, 1 TB 762990-005
Hard drive, 500 GB 778186-005
Hard Drive Hardware Kit 902362-001
Before disassembling the dock, follow this step:
▲
Remove the bottom cover (see Bottom cover on page 40).

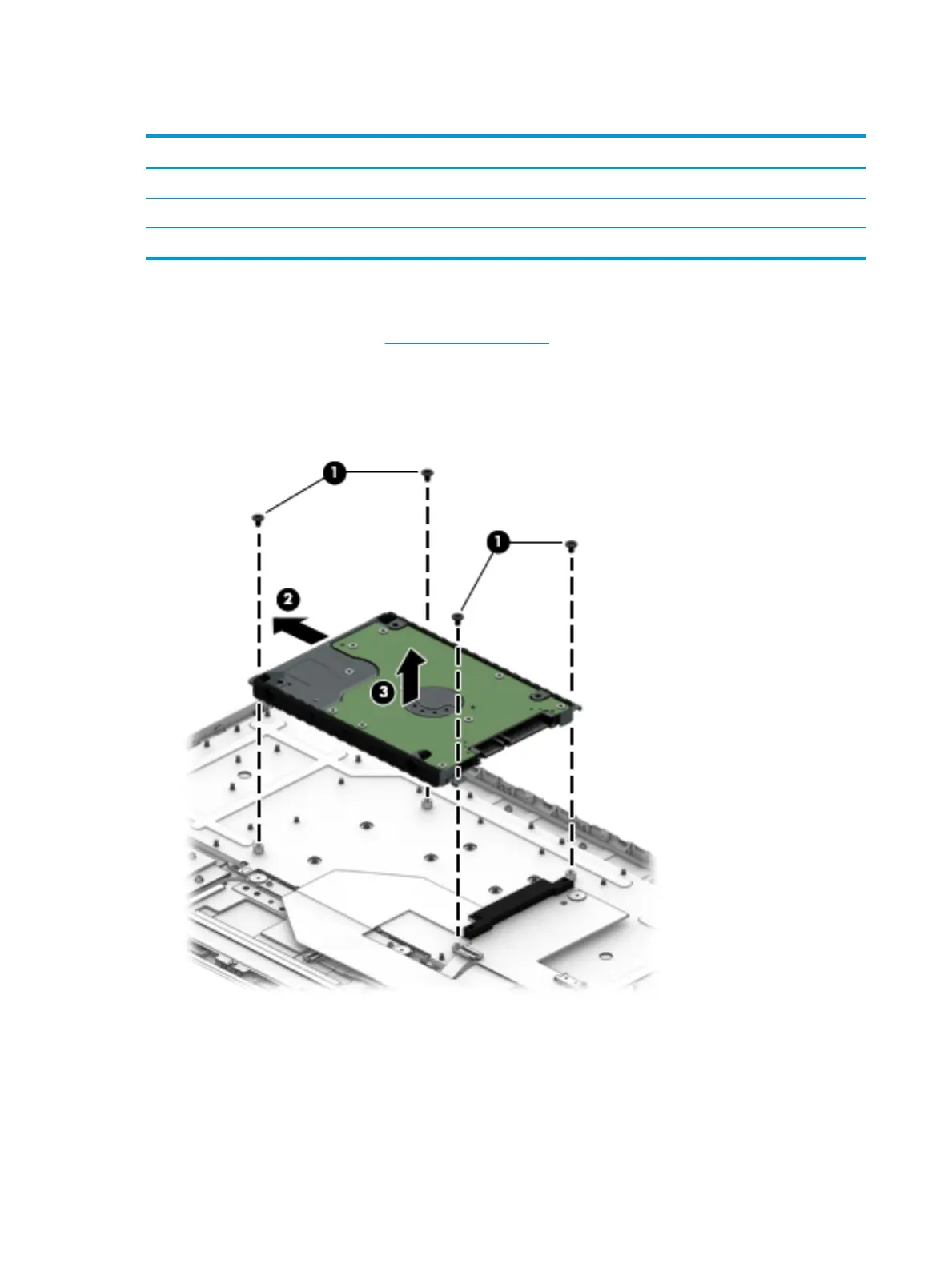

Remove the hard drive:
1. Remove the four Phillips PM2.0×3.0 screws (1) that secure the hinges to the dock.
2. Pull the hard drive away from the connector (2), and then remove the hard drive from the dock (3).
3. To remove the hard drive brackets, remove the four Phillips PM3.0×3.0 screws (1) that secure the
brackets to the hard drive.
