Docking board (models without a hard drive)
Description Spare part number
Docking board (models without a hard drive) 902371-001
Before disassembling the dock, follow this step:
▲
Remove the bottom cover (see Bottom cover on page 40).

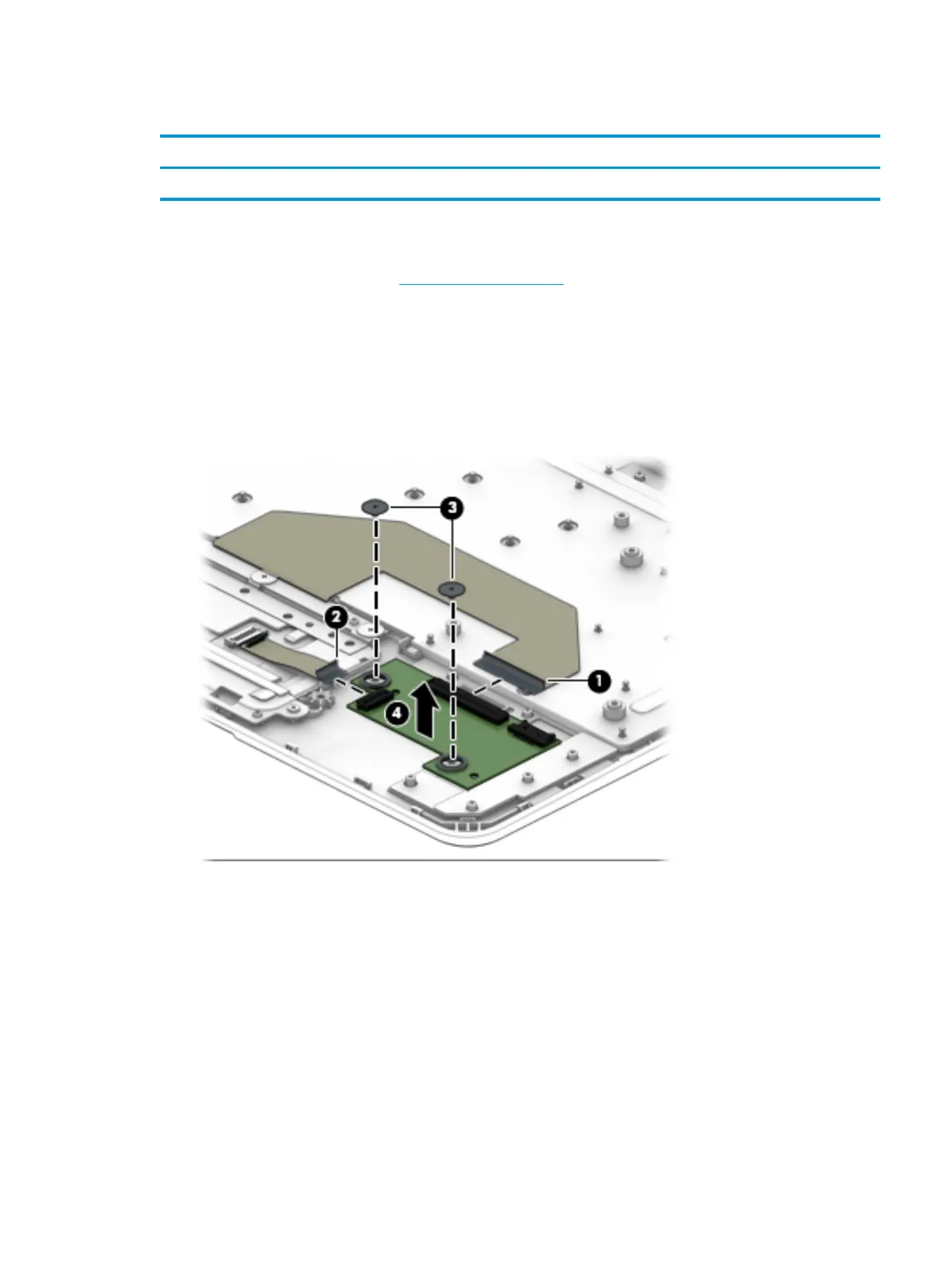

Remove the docking board:
1. Disconnect the keyboard cable from the docking board (1).
2. Disconnect the touchpad cable from the docking board (2).
3. Remove the two Phillips PM2.0×2.0 screws (3) that secure the board to the doc.
4. Remove the docking board from the dock (4).
Reverse this procedure to install the docking board.
Dock component replacement procedures 45

HP x2 Detachable 10-p0XX Specifications

General

Processor	Intel Atom x5-Z8350
Graphics	Intel HD Graphics 400
Storage	32 GB eMMC
Display	10.1-inch, 1280 x 800
Operating System	Windows 10 Home
Wireless	Bluetooth 4.2
Ports	headphone/microphone combo
