LCD shield
Description Spare part number
LCD shield (includes thermal pad) 902363-001
Before removing the LCD shield, follow these steps:
1. Turn o the tablet. If you are unsure whether the tablet is o or in Hibernation, turn the tablet on, and
then shut it down through the operating system.
2. Disconnect the power from the tablet by unplugging the power cord from the tablet.
3. Disconnect all external devices from the tablet.
4. Remove the back cover (see Back cover on page 22).

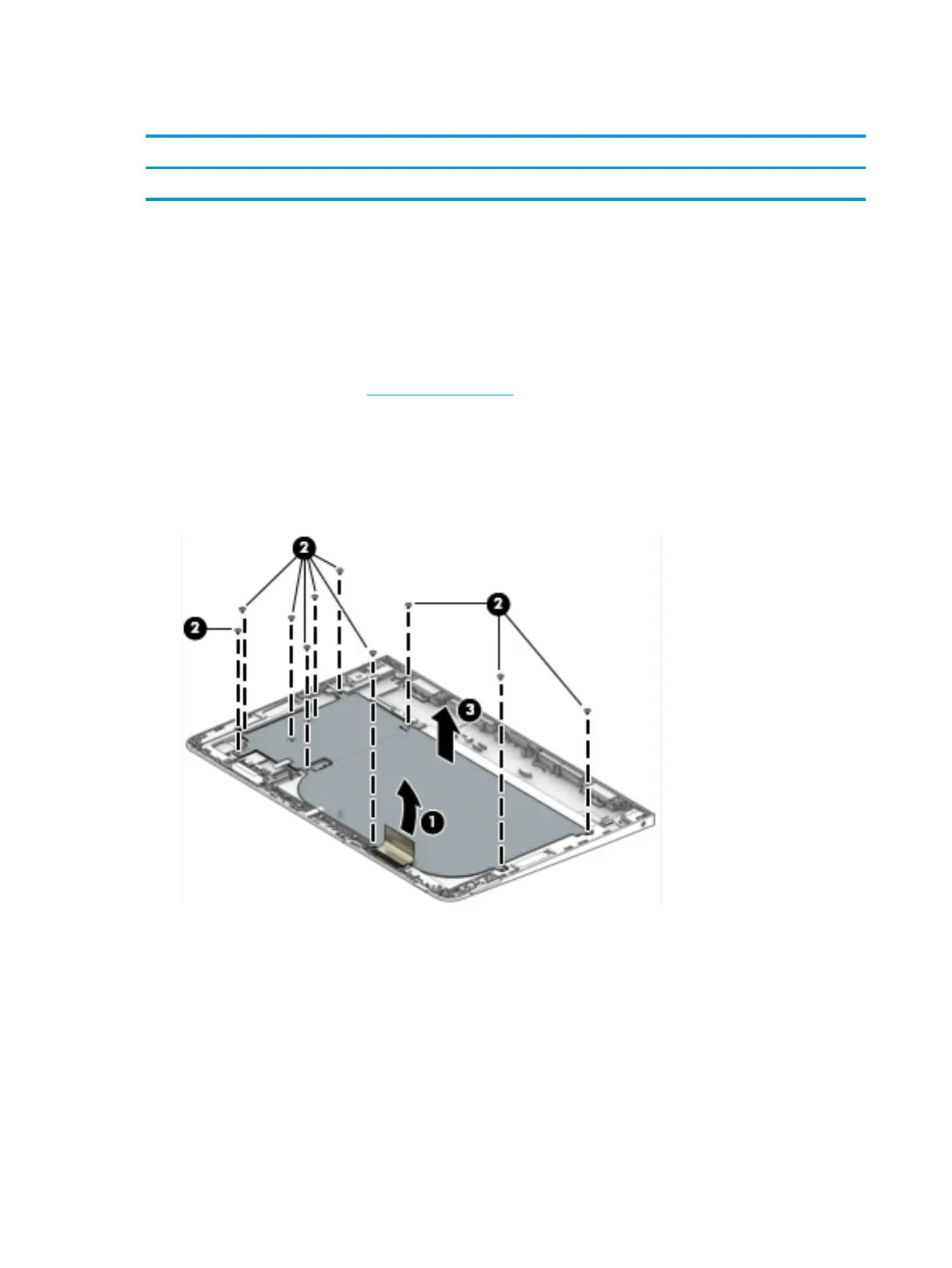

Remove the LCD shield:
1. Peel the antenna o the shield (1).
2. Remove the 10 Phillips PM2.0×2.5 screws (2) that secure the shield to the display.
3. Lift the shield from the display panel assembly (3).
Reverse this procedure to install the LCD shield.
28 Chapter 5 Removal and replacement procedures
