(6) Right speaker cable (see Speakers on page 30)
(7) Front webcam (see Front webcam module on page 26)
(8) WLAN antennas (see Antenna on page 27)

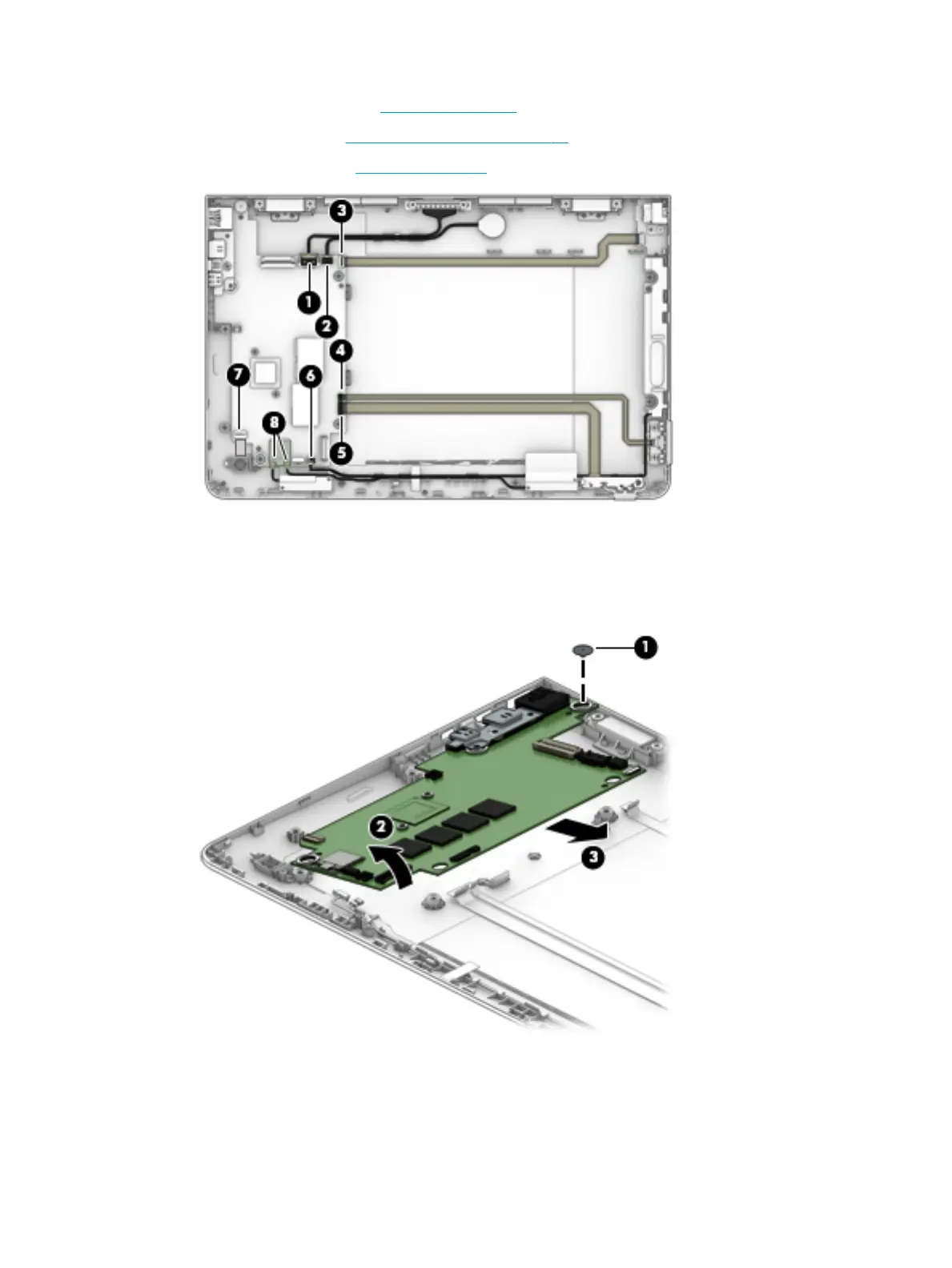

2. Remove the broadhead Phillips PM2.0×2.0 screw (1) that secures the system board to the display panel
assembly.
3. Lift the right side of the system board up (2), and then pull the board toward the right, away from the
connectors on the side of the display, and then out of the display enclosure (3).
Reverse this procedure to install the system board.
Tablet component replacement procedures 39
