HP XW8400

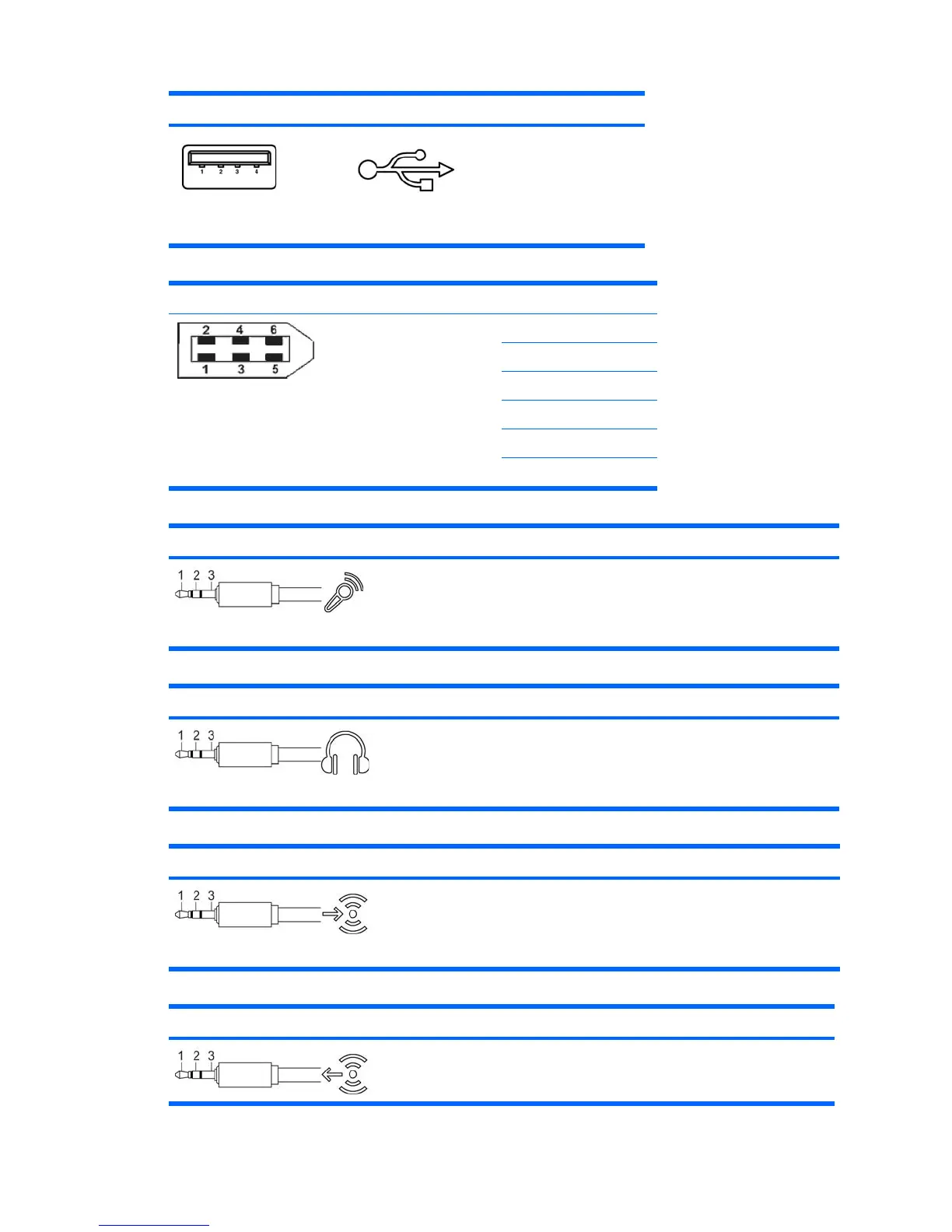

USB connector Pin Signal
1
2
3
4
+5 VDC
- Data
+ Data
GND
IEEE 1394 connector Pin Signal
1 power
2 gnd
3 tpb-
4 tpb+
5 tpa-
6tpa+
Microphone connector (1/8 inch) Pin Signal
1 (Tip)
2 (Ring)
3 (Shield)
Audio
Power
Ground
Headphone connector (1/8 inch) Pin Signal
1 (Tip)
2 (Ring)
3 (Shield)
Audio_Left
Audio_Right
Ground
Line-in audio connector (1/8 inch) Pin Signal
1 (Tip)
2 (Ring)
3 (Shield)
Audio_In_Left
Audio_In_Right
Ground
Line-out audio connector (1/8 inch) Pin Signal
1 (Tip)
2 (Ring)
Audio_Out_Left
Audio_Out_Right
ENWW Connector pin descriptions 155
