Line-out audio connector (1/8 inch) Pin Signal
3 (Shield) Ground

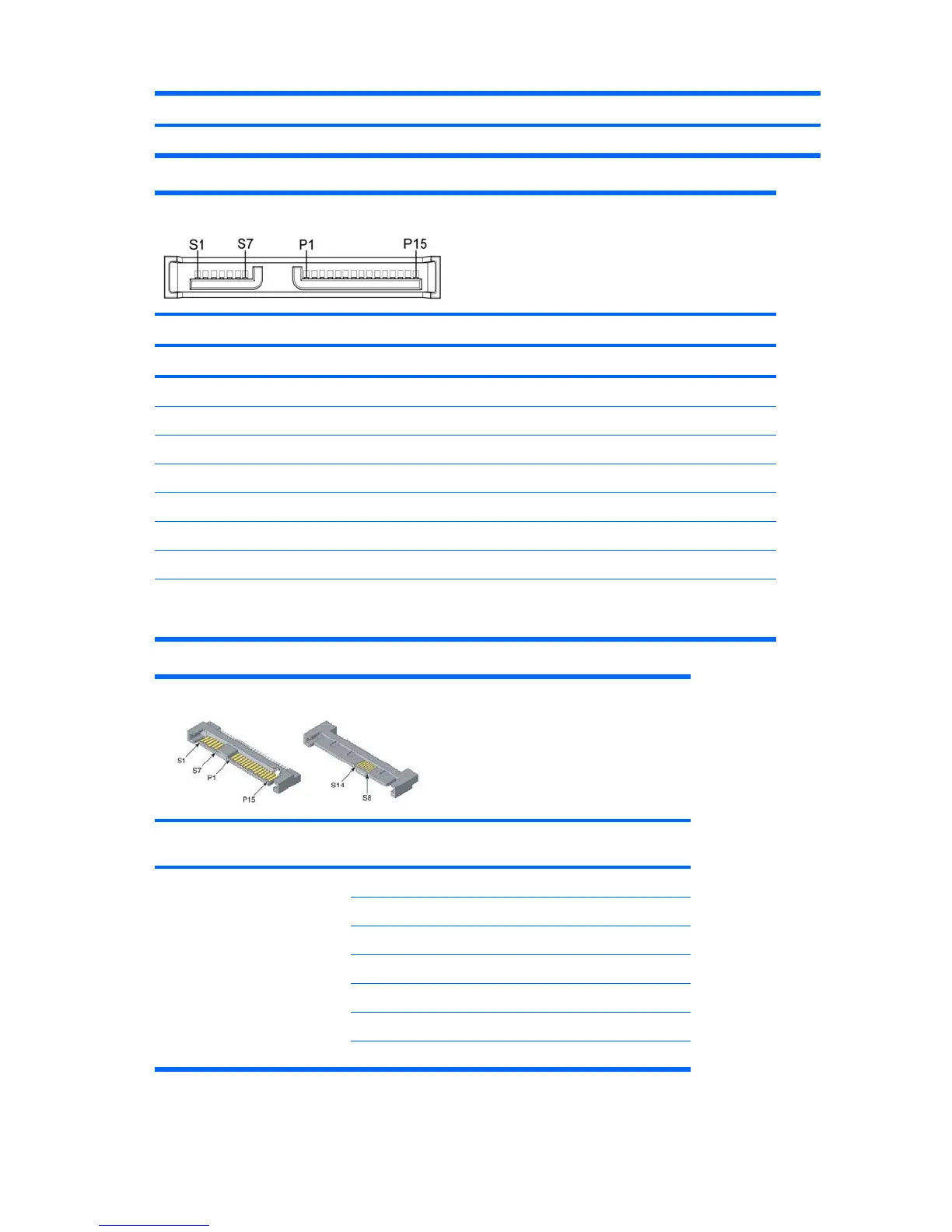

SATA connector
Pin Signal Pin Signal Pin Signal
Data Cable Power Cable Power Cable
S-1 Ground P-1 3.3-V power P-8 5-V power
S-2* A+ P-2 3.3-V power P-9 5-V power
S-3* A- P-3 3.3-V power P-10 Ground
S-4 Ground P-4 Ground P-11 Reserved
S-5** B- P-5 Ground P-12 Ground
S-6** B+ P-6 Ground P-13 12-V power
S-7 Ground P-7 5-V power P-14 12-V power
* S2 and S3 differential signal pair
**S5 and S6 differential signal pair
P-15 12-V power
SAS connector
Segment Pin Backplane receptacle Plug and cable
receptacles
Primary signal segment S1 SIGNAL GROUND
S2
TP+ RP+
S3 TP- RP-
S4 SIGNAL GROUND
S5
RP- TP-
S6 RP+ TP+
S7 SIGNAL GROUND
