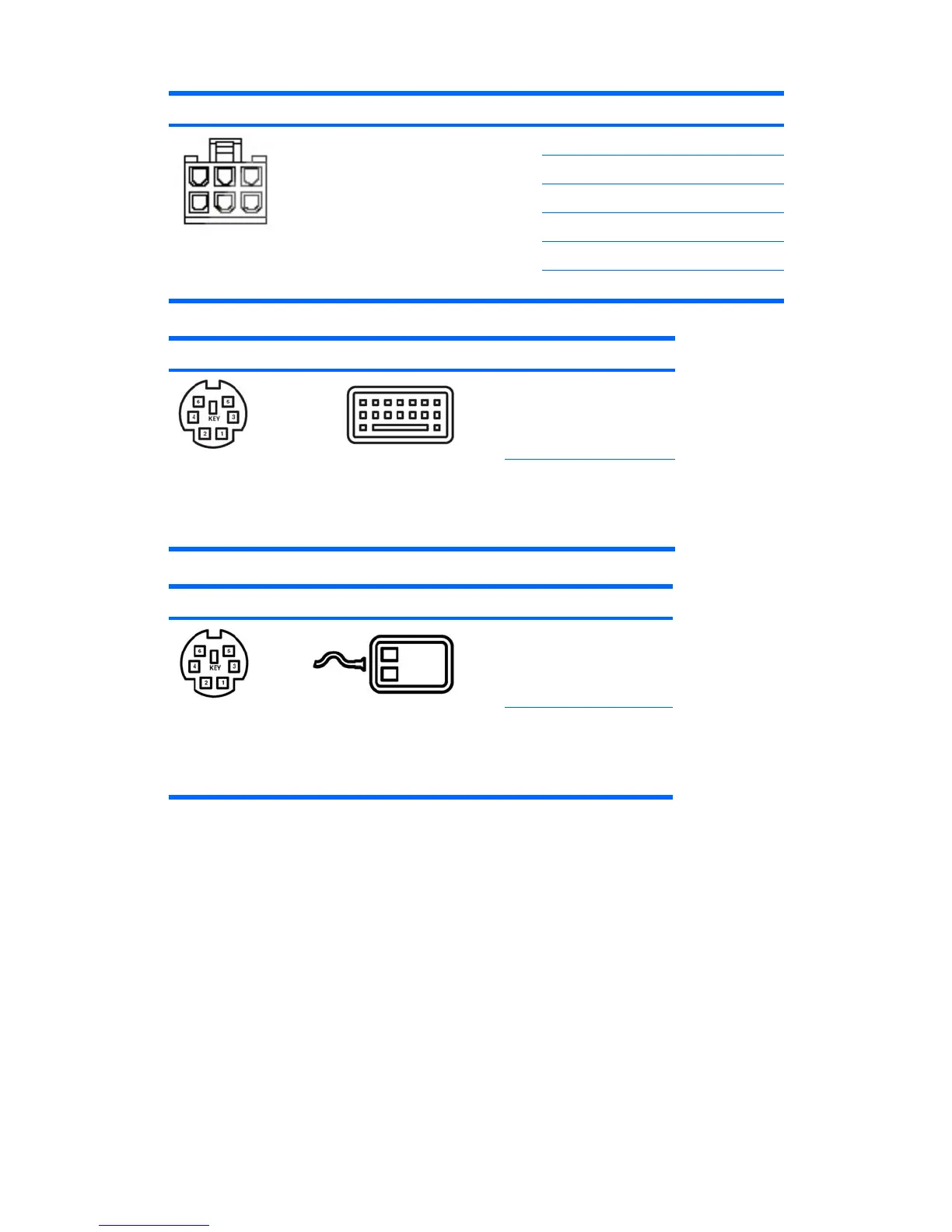

6-Pin power (auxiliary PCI Express) Pin Color Signal
46
3
1
1 BLK w/YEL stripe +12V-C
2 BLK w/YEL stripe +12V-C
3 BLK w/YEL stripe +12V-C
4 BLK GND
5 BLK GND
6BLKGND
Keyboard connector Pin Signal
1
2
3
Data
Unused
Ground
4
5
6
+5 VDC
Clock
Unused
Mouse connector Pin Signal
1
2
3
Data
Unused
Ground
4
5
6
+5 VDC
Clock
Unused
