Chassis components

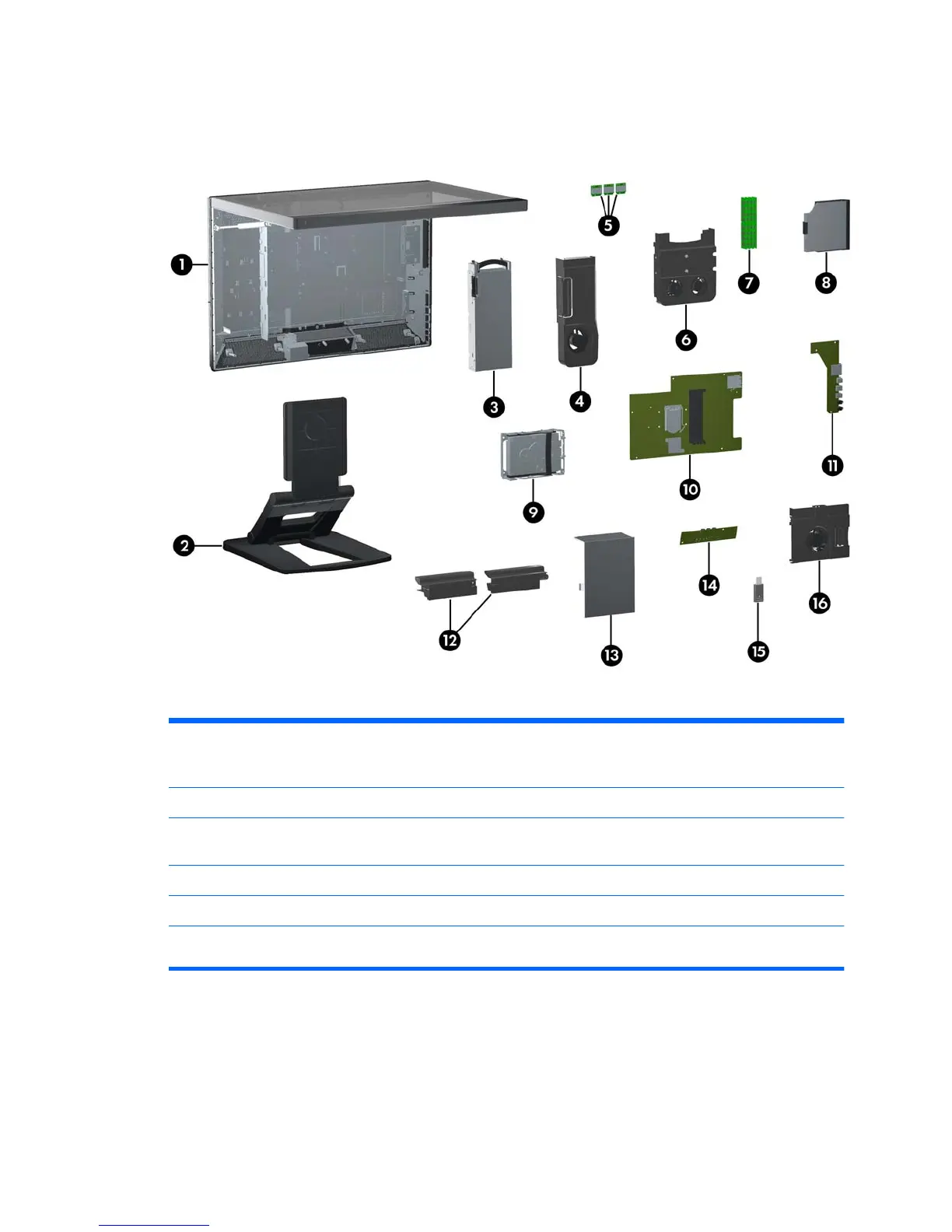

Figure 1-4 Chassis components
Table 1-4 Component descriptions
1 Chassis and display assembly 7 Memory modules (DIMMs) 13 Graphics filler block (installed if
graphics card assembly is not
ordered)
2 Stand 8 Slot-load optical drive 14 Rear I/O board
3 Power supply 9 Hard drive and carrier assembly 15 Wireless keyboard/mouse USB
receiver
4 Graphics card assembly 10 System board 16 Memory fan
5 Mini PCI cards 11 Side I/O board
6 Processor (CPU) heatsink 12 Speakers
Chassis components
5
