HP Z220 SFF Series User Manual

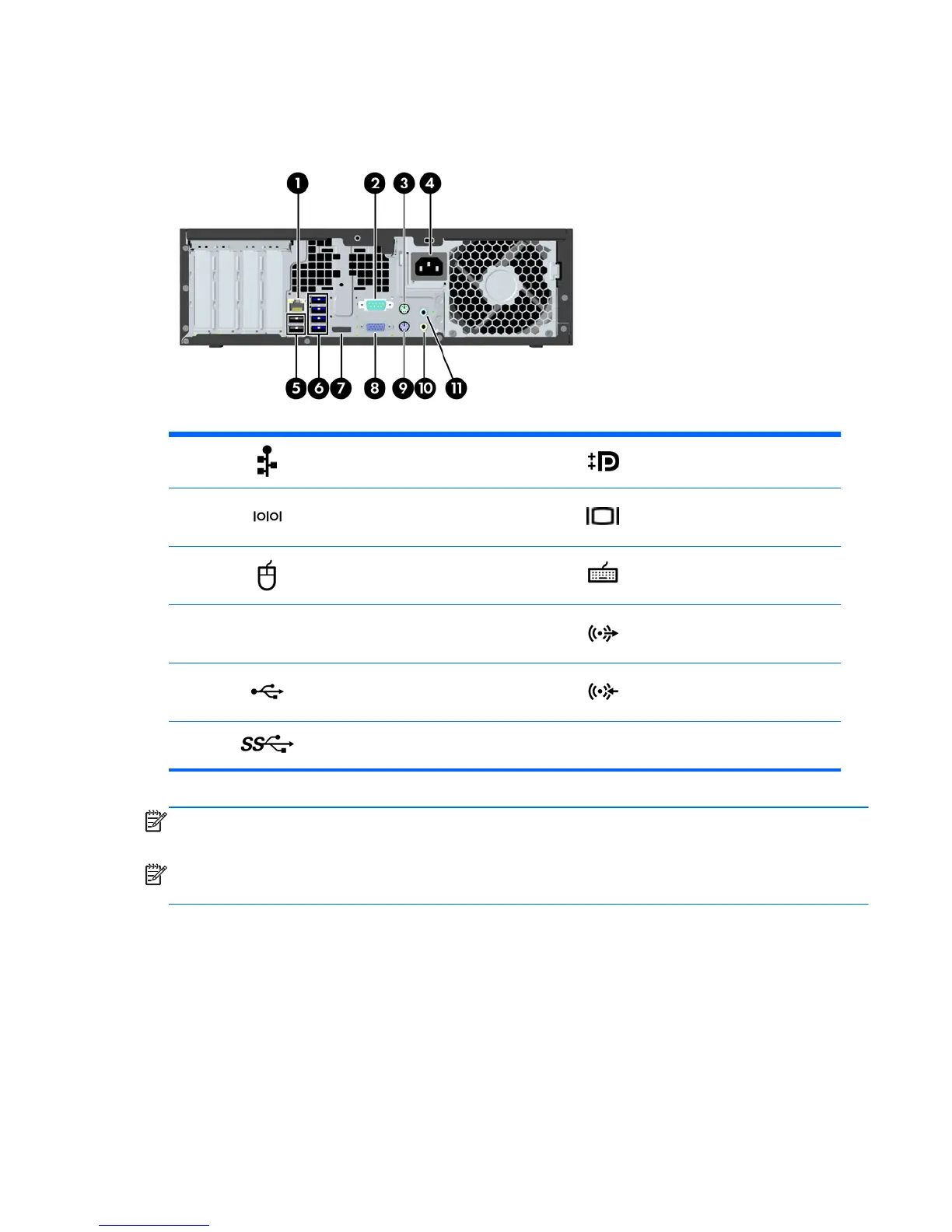

Z220 SFF Workstation rear panel
Figure 2-2 Rear panel components
Table 2-2 Component descriptions
1 RJ–45 network connector 7 DisplayPort (DP)
2
Serial port
8
VGA (monitor) (blue)
3
PS/2 mouse connector (green) 9
PS/2 keyboard connector
(purple)
4 Power cord connector 10
Audio line-out connector (green)
5
USB 2.0 ports (2) (back) 11 Audio line-in connector (blue)
6
USB 3.0 ports (4) (blue)
NOTE: The labels for the rear panel connectors use
industry-standard icons and colors.
NOTE:
The DP and VGA ports are not supported when the system is configured with Intel® Xeon E3-12x0 v2 processors. Also, if a discrete graphics
card is installed, these ports are disabled by default.
NOTE:
Simultaneous usage of integrated Intel HD graphics and discrete graphics cards (in order to drive more than two displays) can be enabled using
the Computer (F10) Setup Utility. However, HP recommends using only discrete graphics cards when attaching three or more displays.
HP Z220 SFF Workstation components
9

HP Z220 SFF Series Specifications

General

Chipset	Intel C216
Form Factor	Small Form Factor (SFF)
Processor Options	Intel Core i3, i5, i7
Memory	Up to 32GB DDR3 (4 DIMM slots)
Storage Options	SATA HDD or SSD
Graphics	Integrated Intel HD Graphics; Optional NVIDIA or AMD discrete graphics
Operating System	Windows 7, Windows 8, Linux (optional)
Power Supply	240W 90% efficient
Dimensions	100 x 338 x 381 mm (3.95 x 13.3 x 15 in)
Weight	Starting at 7.6 kg (16.75 lbs)
Audio	Integrated HD Audio
Expansion Slots	1 PCIe x16, 1 PCIe x1, 1 PCI
Ports	USB 2.0, USB 3.0, DisplayPort, VGA, audio in/out
Optical Drive	DVD-ROM, DVD+/-RW SuperMulti
