HP Z420 Workstation rear panel

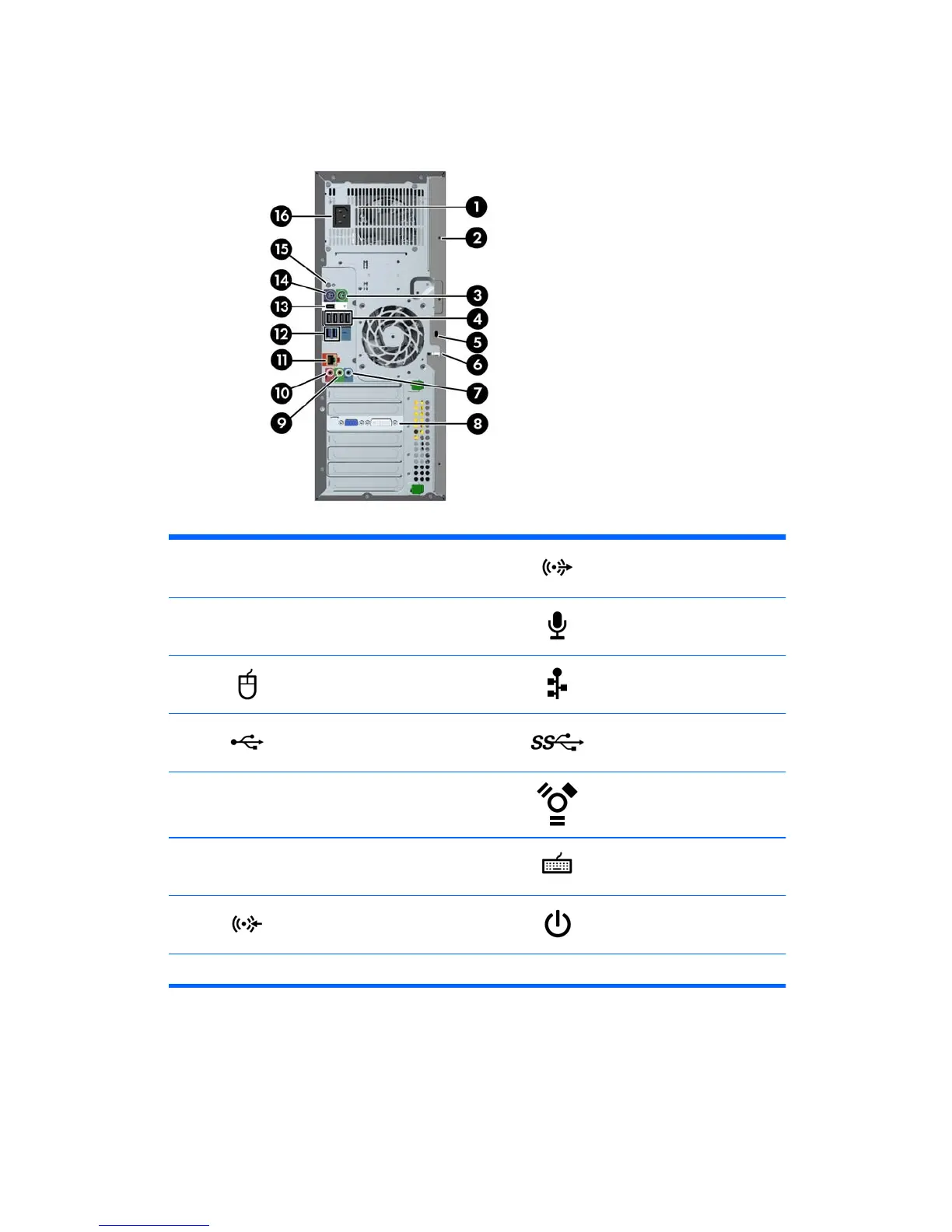

Figure 2-6 Rear panel components
Table 2-6 Component descriptions
1
Power supply Built-In Self Test
(BIST) LED
9
Audio line-out connector (green)
2 Universal chassis clamp opening 10
Microphone connector (pink)
3
PS/2 mouse connector (green) 11
AMT-enabled RJ-45 network
connector (orange)
4
USB 2.0 ports (4, black) 12 USB 3.0 ports (2, blue)
5 Security slot 13
IEEE-1394a FireWire connector
(white)
6 Padlock loop 14
PS/2 keyboard connector
(purple)
7
Audio line-in connector (blue) 15 Rear power button
8 Graphics card connector 16 Power cord connector
