HP Z24m G3 User Manual

12
4 Removal and replacement procedures
Adherence to these procedures and precautions is essential for proper service.
Preparation for disassembly
Use this information to properly prepare to disassemble and reassemble the monitor.
1) Read the “Important safety information” and “Important service information and precautions” sections in
the “Getting started” chapter of this guide.
2) Clean the room for disassembly.
3) Identify the disassembly area.
4) Check the position that the monitors are to be placed along with the number of monitors. Prepare the area
for material flow according to the disassembly layout.
5) Be sure to have the following equipment and materials:
 Press fixture
 Working table
 Screwdriver
 Knife
 Gloves
 Cleaning cloth
 ESD protection

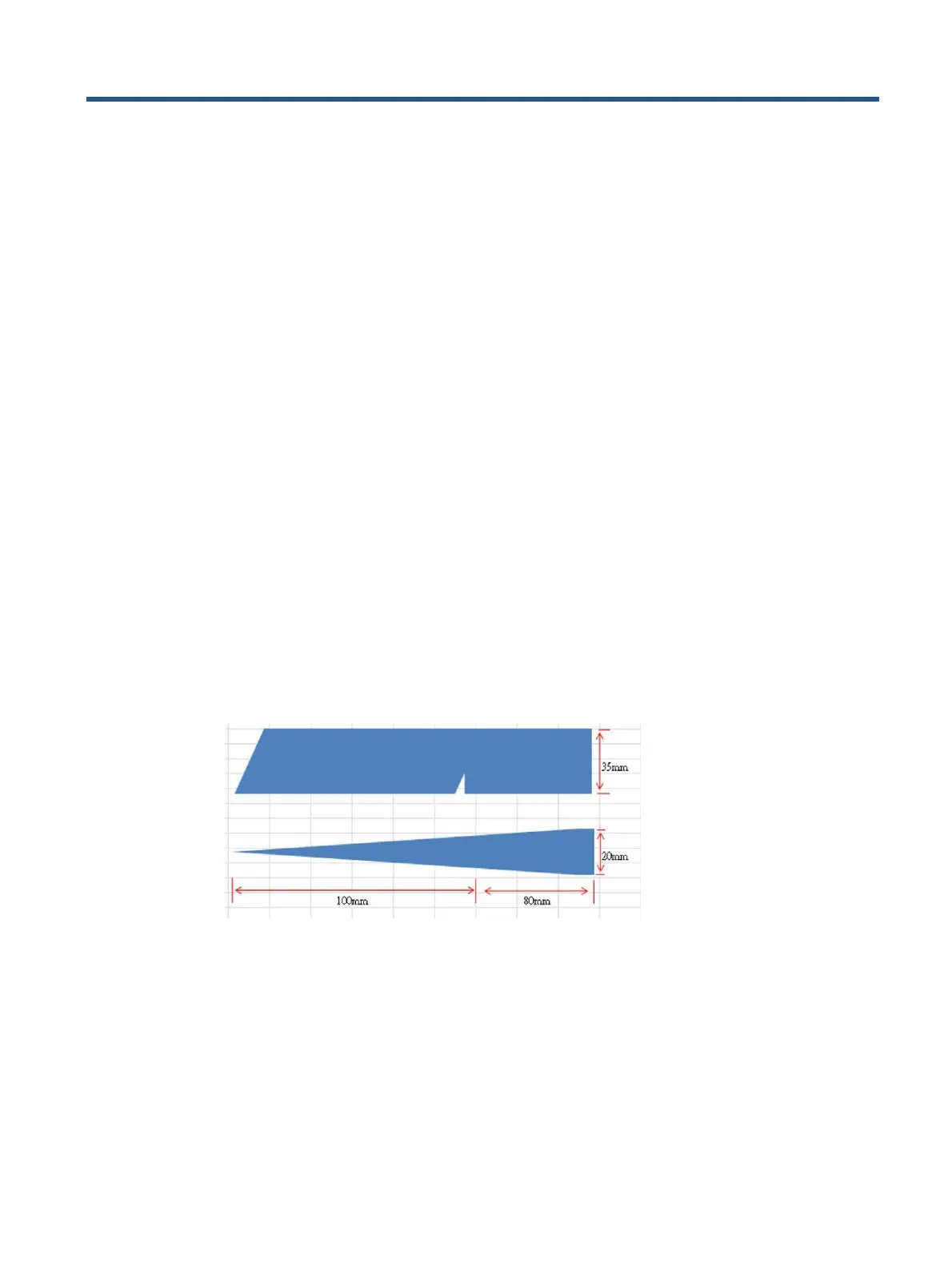

 Scraper bar in the following dimensions:
Rear Cover
Before removing the Rear Cover, follow these steps:
▲ Prepare the monitor for disassembly. See Preparation for disassembly on page 12.
1) Push the release button, then pull the stand to remove stand base from display Head

HP Z24m G3 Specifications

General

Color depth	8 bit
Color gamut	99 %
Pixel pitch	0.21 x 0.21 mm
Screen shape	Flat
Pixel density	123 ppi
Display diagonal	23.8 \
Anti-glare screen	Yes
Native aspect ratio	16:9
Maximum refresh rate	90 Hz
Contrast ratio (typical)	1000:1
Display number of colors	1.07 billion colors
Display diagonal (metric)	60.45 cm
Digital horizontal frequency	30 - 140 kHz
Display brightness (typical)	400 cd/m²
Supported graphics resolutions	640 x 480 (VGA), 720 x 400, 800 x 600 (SVGA), 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1280 x 720 (HD 720), 1440 x 900, 1600 x 900, 1680 x 1050 (WSXGA+), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA)
HDMI version	1.4
USB upstream port type	USB Type-C
USB Type-A downstream ports quantity	4
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (max)	170 W
Power consumption (standby)	0.5 W
Power consumption (typical)	38 W
Operating temperature (T-T)	5 - 35 °C
Operating relative humidity (H-H)	20 - 80 %
Package type	Box
Package depth	48.4 mm
Package height	311.7 mm
Package weight	8200 g
Pivot angle	-90 - 90 °
Tilt angle range	-5 - 20 °
Height adjustment	150 mm
Panel mounting interface	100 x 100 mm
Product color	Silver
Market positioning	Business
Megapixel	5 MP
RMS rated power	10 W
Number of speakers	2

Weight and Dimensions

Depth (with stand)	195 mm
Width (with stand)	538.3 mm
Height (with stand)	489.3 mm
Weight (with stand)	5700 g
Depth (without stand)	141 mm
Width (without stand)	625 mm
Height (without stand)	387 mm
