3) Lift the HDMI connector from the PCB.
4) Place the new component on the PCB. Be sure that it matches the PCB footprint.
5) Solder the new component.
DP connector DP1

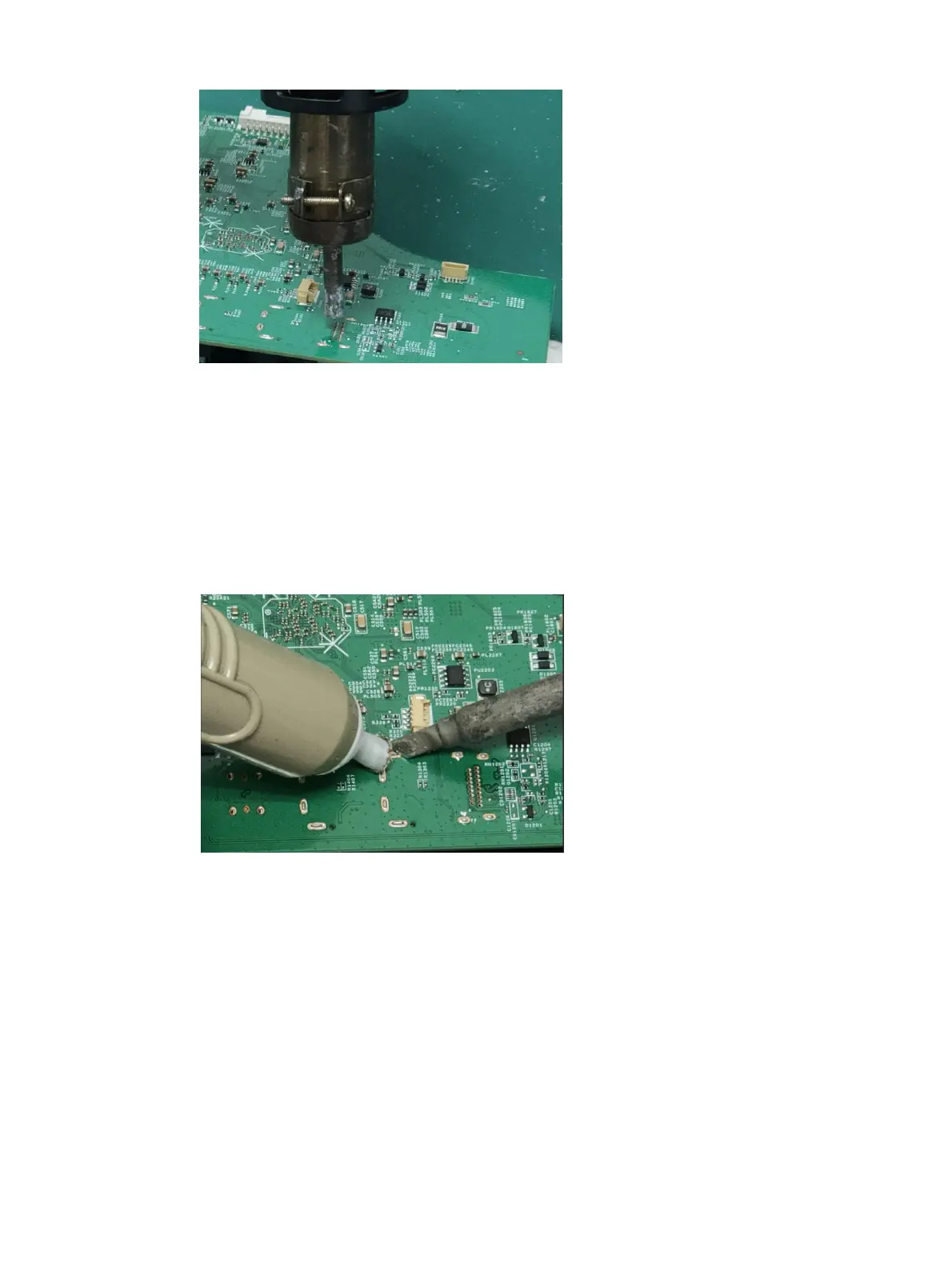

Repair the DP connector:
1) Use a soldering iron and a de-soldering pump to remove as much solder as possible from the pin.
2) Use a hot air gun to melt the solder on the pins.
3) Lift the DP connector from the PCB.
4) Place the new component on the PCB. Be sure that it matches the PCB footprint.
5) Solder the new component.
DP out connector DP2
Repair the DP out connector:
1) Use a soldering iron and a de-soldering pump to remove as much solder as possible from the pin.
