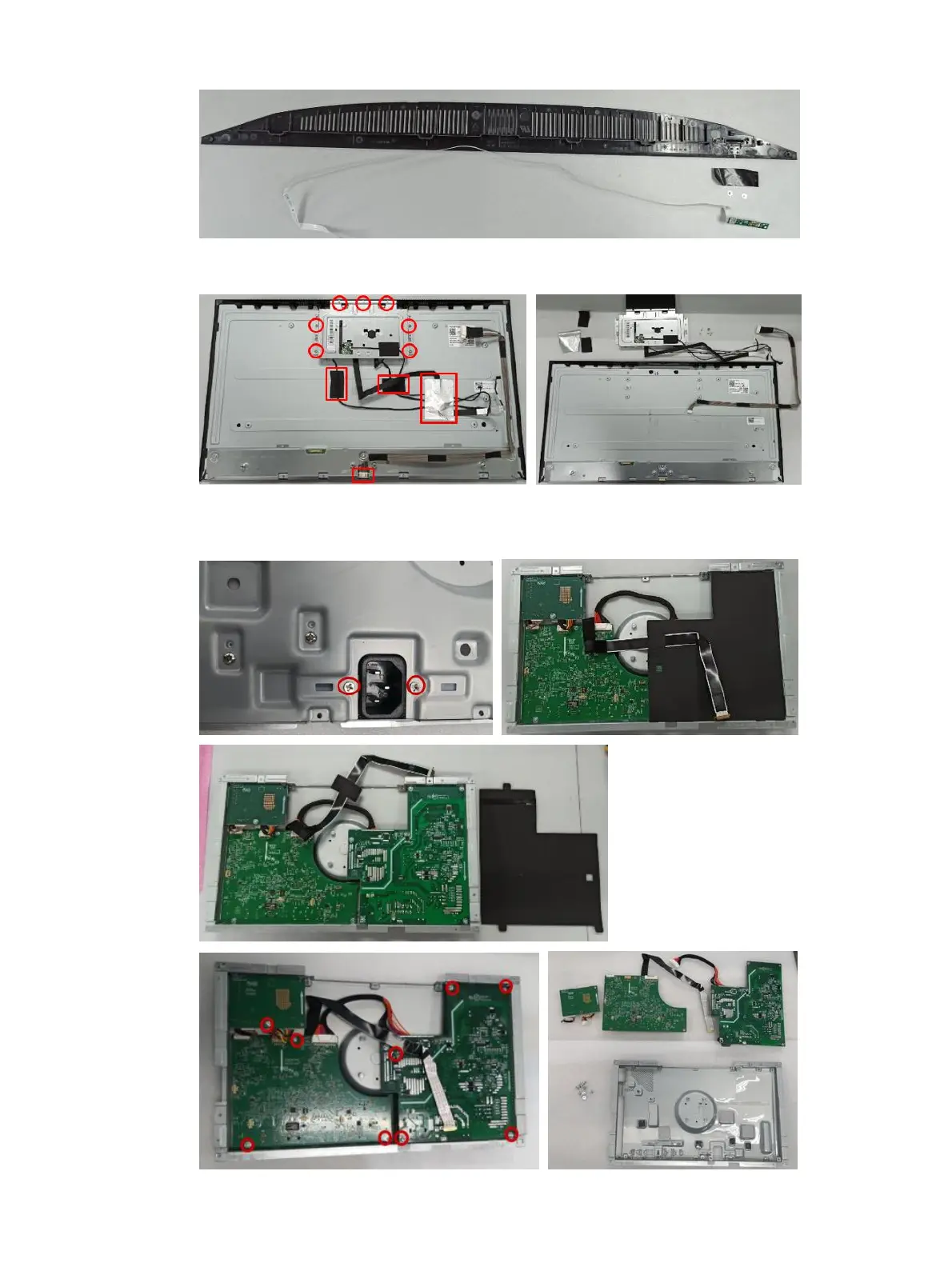

11) Remove Webcam Module: disconnect panel lamp cable from the connector of the panel, then tear off 1pcs
AL foil and 2pcs acetate tape, then unlock 4pcs screws with panel and 3pcs screws with the middle bezel.
12) Disassemble bracket chassis module: Remove 2pcs screws for unlocking the AC power outlet, then remove
the Mylar tape from the bracket, and use a screwdriver to remove 9pcs screws, then remove power board,
driver board and interface board from main bracket and disconnect all cables.
