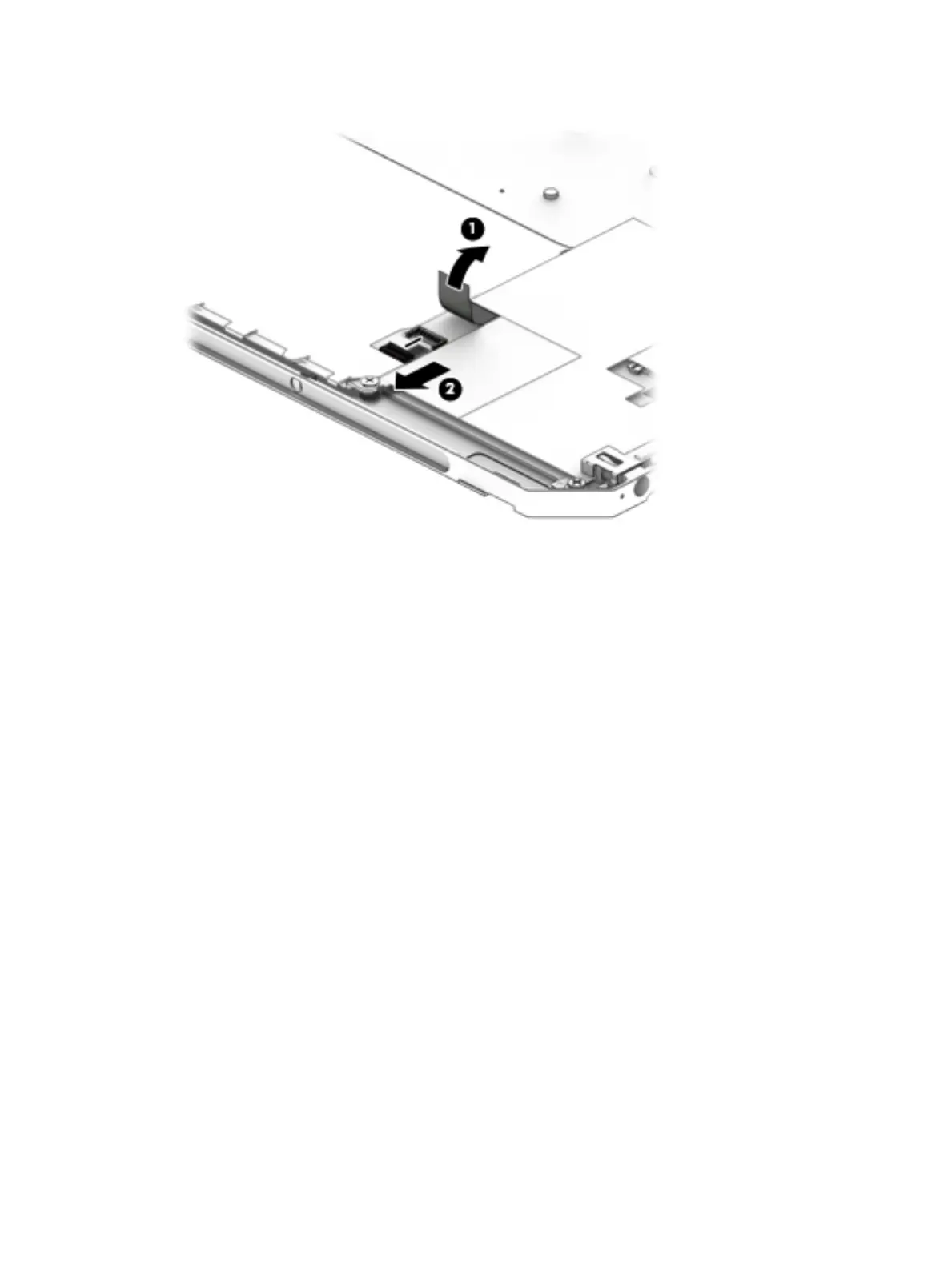

11. Disconnect the battery cable (2) from the system board.
12. Position the tablet with the top edge toward you.
13. Release the zero insertion force (ZIF) connector (1) to which the right QuickKey button board cable is
connected, and then disconnect the right QuickKey button board cable from the system board.
14. Release the ZIF connector (2) to which the left QuickKey button board cable is connected, and then
disconnect the left QuickKey button board cable from the system board.
34 Chapter 5 Removal and replacement procedures
