POGO pin connector cable
Description Spare part number
POGO pin connector cable (includes POGO connector and double-sided adhesive) L03262-001
Before removing the POGO pin connector cable, follow these steps:
1. Shut down the tablet. If you are unsure whether the tablet is o or in Hibernation, turn the tablet on,
and then shut it down through the operating system.
2. Disconnect all external devices connected to the tablet.
3. Disconnect the power from the tablet by rst unplugging the power cord from the AC outlet, and then
unplugging the AC adapter from the tablet.
4. Remove the display panel assembly (see Display panel assembly on page 30).
5. Remove the battery (see Battery on page 40).
Remove the POGO pin connector cable:

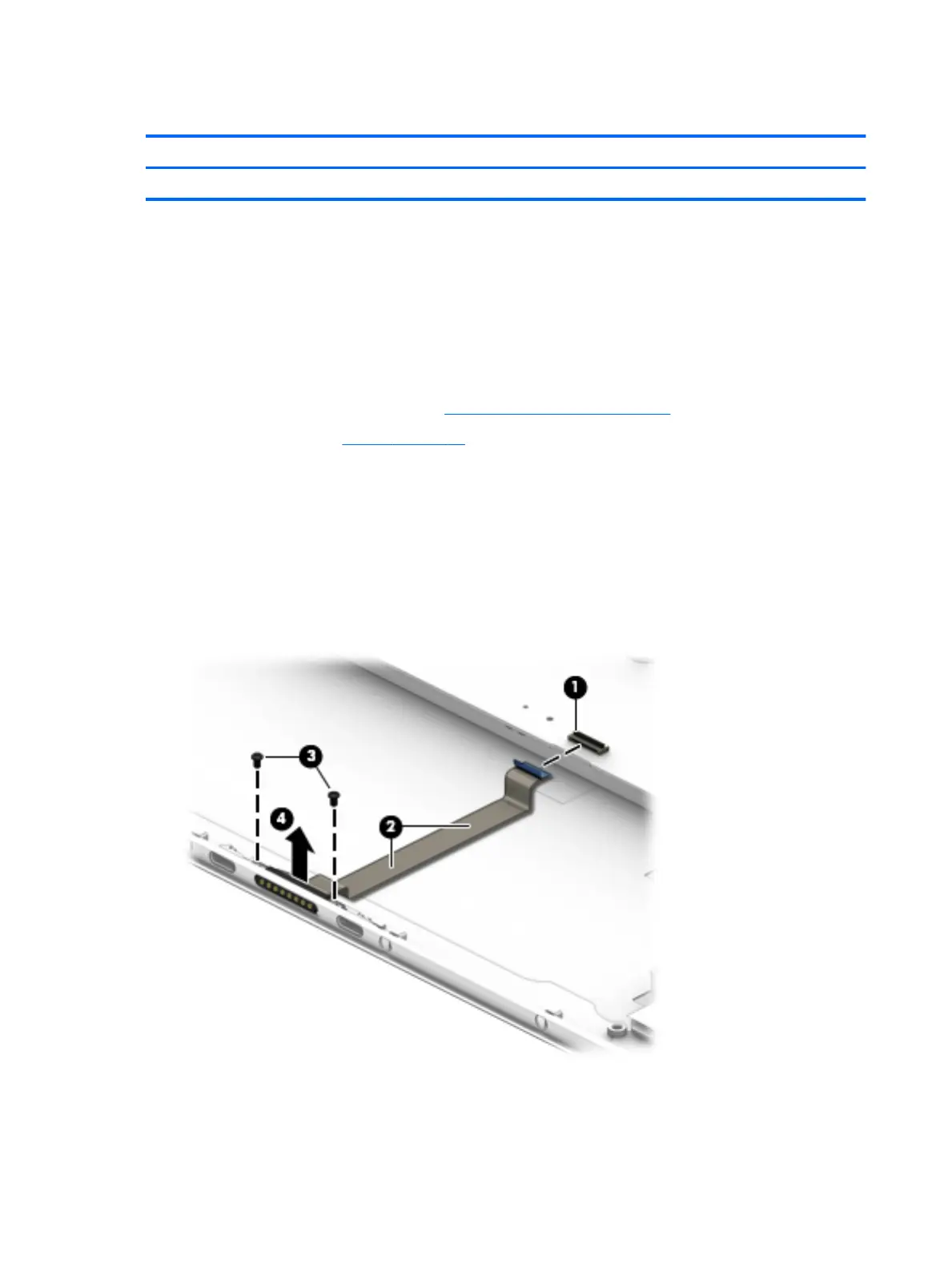

1. Release the ZIF connector (1) to which the POGO pin connector cable is connected, and then disconnect
the POGO pin connector cable from the system board.
2. Detach the POGO pin connector cable (2) from the back cover. (The POGO pin connector cable is attached to
the back cover with double-sided adhesive in two locations.)
3. Remove the two Phillips M1.5×3.0 screws (3) that secure the POGO pin connector to the back cover.
4. Remove the POGO pin connector cable (4).
5. Remove the POGO pin connector cable.
Reverse this procedure to install the POGO pin connector cable.
46 Chapter 5 Removal and replacement procedures
