Front-facing webcam/microphone module
Description Spare part number
Front-facing webcam/microphone module (includes camera bracket, cables, and double-sided adhesive) L03250-001
Microphone module (includes cable and double-sided adhesive) L03252-001
Before removing the front-facing webcam/microphone module, follow these steps:
1. Shut down the tablet. If you are unsure whether the tablet is o or in Hibernation, turn the tablet on,
and then shut it down through the operating system.
2. Disconnect all external devices connected to the tablet.
3. Disconnect the power from the tablet by rst unplugging the power cord from the AC outlet, and then
unplugging the AC adapter from the tablet.
4. Remove the display panel assembly (see Display panel assembly on page 30).
Remove the front-facing webcam/microphone module:

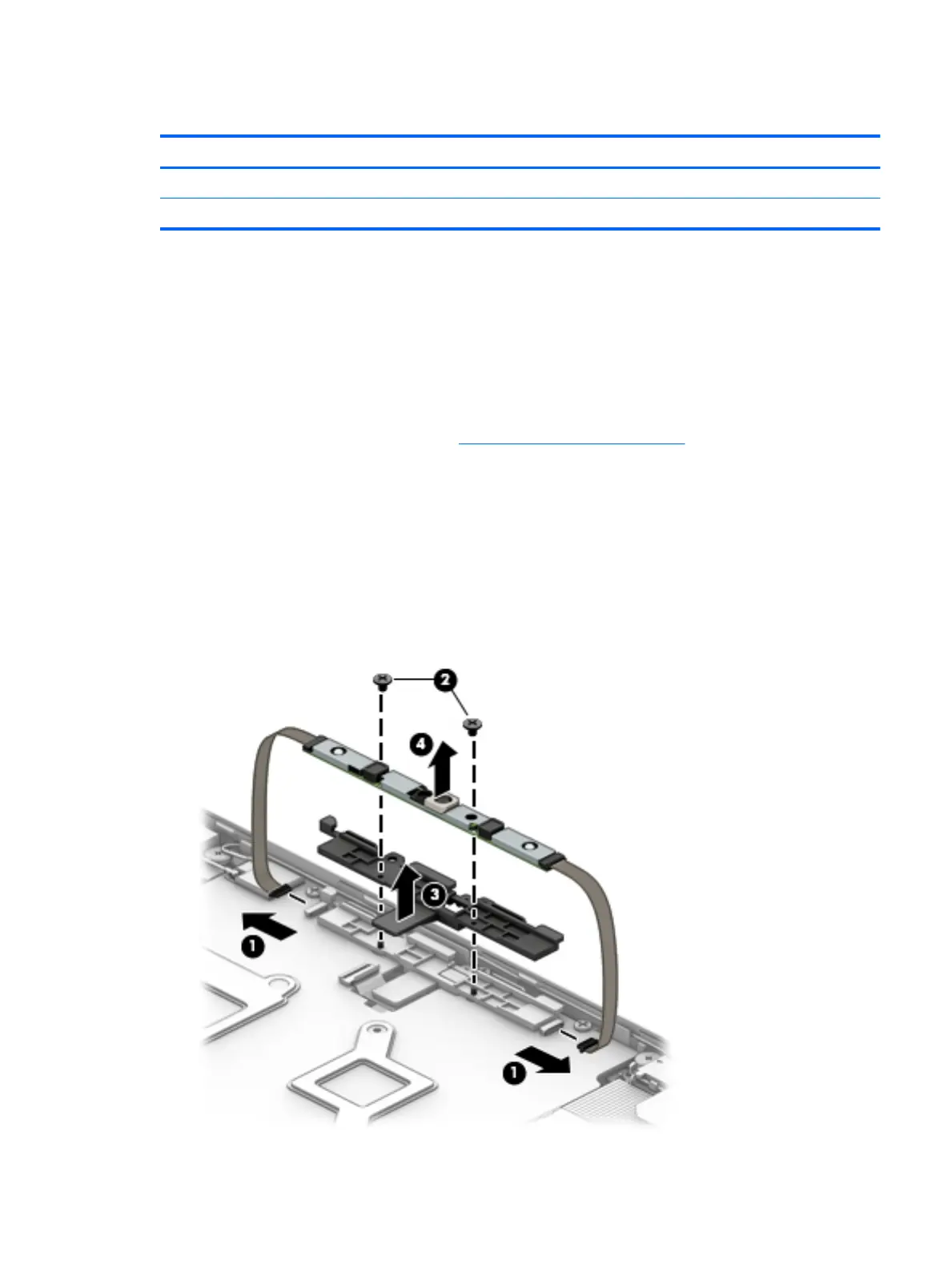

1. Disconnect the front-facing webcam/microphone module cables (1) from the system board.
2. Remove the two Phillips M2.0×3.0 screws (2) that secure the camera bracket to the back cover.
3. Remove the camera bracket and front-facing webcam/microphone module (3).
The camera bracket is included in the front-facing webcam/microphone module spare part kit.
4. Detach the front-facing webcam/microphone module (4) from the camera bracket. (The front-facing
webcam/microphone module is attached to the camera bracket with double-sided adhesive.)
Component replacement procedures 43
