3. Disconnect the power from the tablet by rst unplugging the power cord from the AC outlet, and then
unplugging the AC adapter from the tablet.
4. Remove the display panel assembly (see Display panel assembly on page 30), and then remove the
following components:
a. Front-facing webcam/microphone module (see Front-facing webcam/microphone module
on page 43)
b. Battery (see Battery on page 40)
c. System board (see System board on page 47)
Remove the speakers:

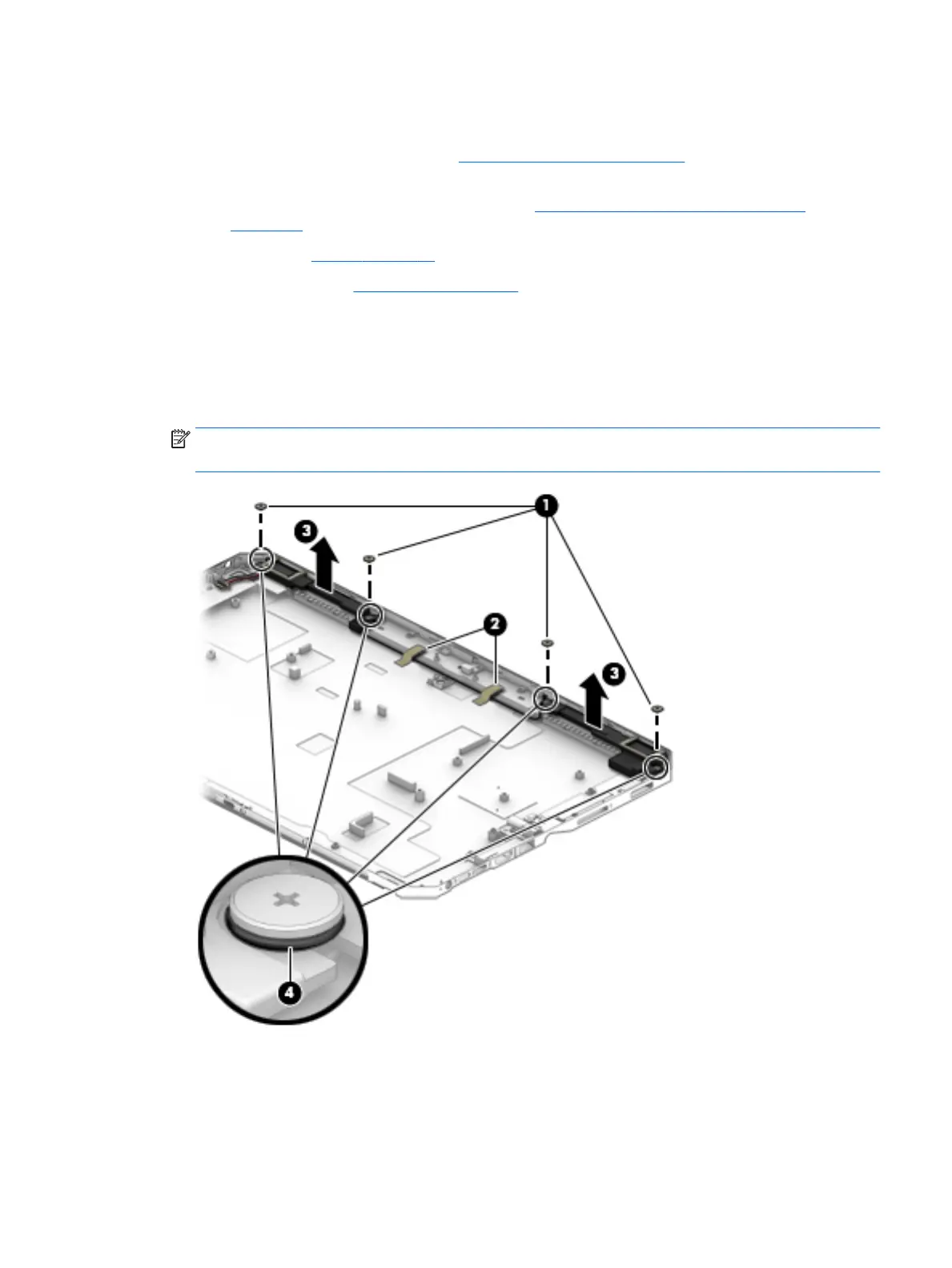

1. Remove the four Phillips M2.0×3.5 screws (1) that secure the speakers to the back cover.
2. Release the retention tape (2) that secures the speaker cable to the back cover.
3. Remove the speakers (3).
NOTE: When removing the speakers, make note of the location of the four rubber isolators (4). Failure to
properly install or damage to these isolators can result in degraded speaker performance.
Reverse this procedure to install the speakers.
Component replacement procedures 57
