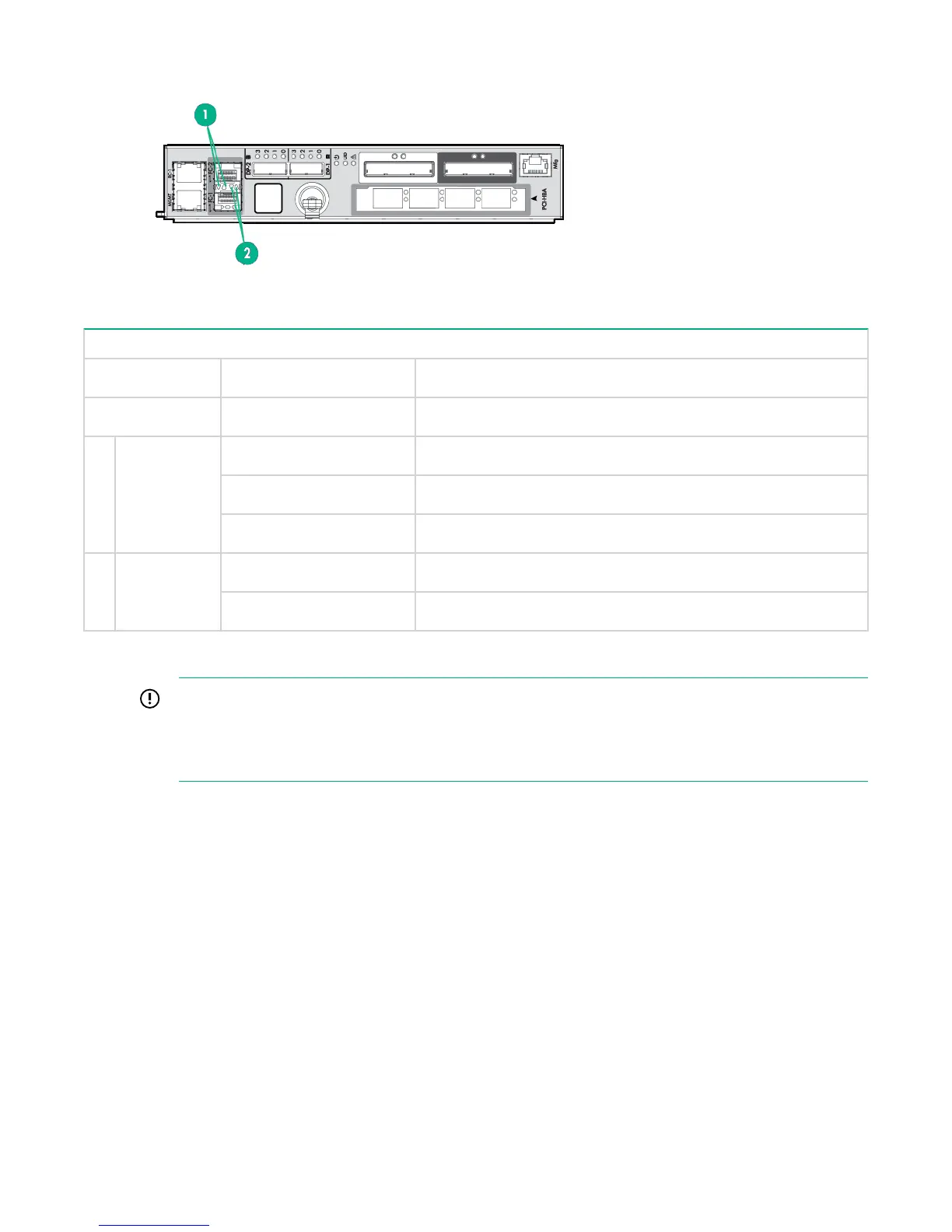

Figure 67: FC onboard ports LEDs
FC onboard ports LEDs
LED Function Status Meaning
All ports Off Wake up failure (dead device) or power not applied
1 Port Speed Off Not connected
3 Fast amber flashes Connected at 8 Gb/s
4 Fast amber flashes Connected at 16 Gb/s
2 Link Status On Normal/Connected—link up
Green flashing Link down or not connected
SAS onboard ports
IMPORTANT:
For the SAS DP-2 port with no SAS cable attached, the amber LED will be illuminated and the
green LED will be off. This behavior is expected for the DP-2 port. For the SAS DP-1 port with no
SAS cable attached, both amber and green LEDs will be off.
The Controller Node has two SAS onboard ports (DP-1 and DP-2) and each includes four LEDs.
126 Component LEDs
