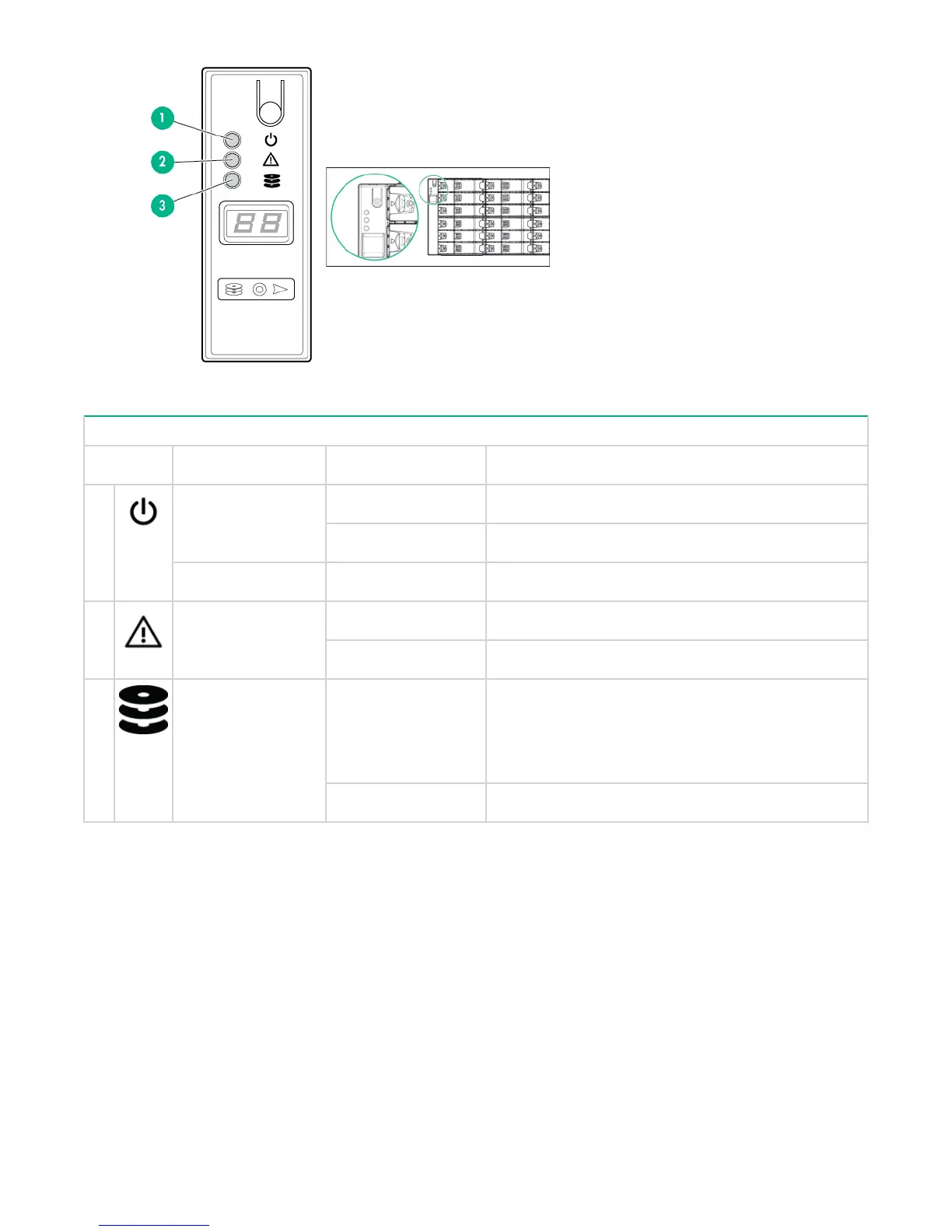

Figure 85: LEDs on the left Ear Cap (bezel), LFF enclosures front view
LEDs on the left Ear Cap (bezel)
LED Function Status Meaning
1
System Power Green solid Power
Off No power
System Standby Amber solid Enclosure powered by the battery
2
Module Fault Amber solid Fault
Off No fault
3
Drive Status Amber solid Fault—An issue exists with one or more drives within
the enclosure. To determine the affected drives,
inspect the LEDs on each drive.
This LED applies only to drives.
Off No fault
Component LEDs 139
