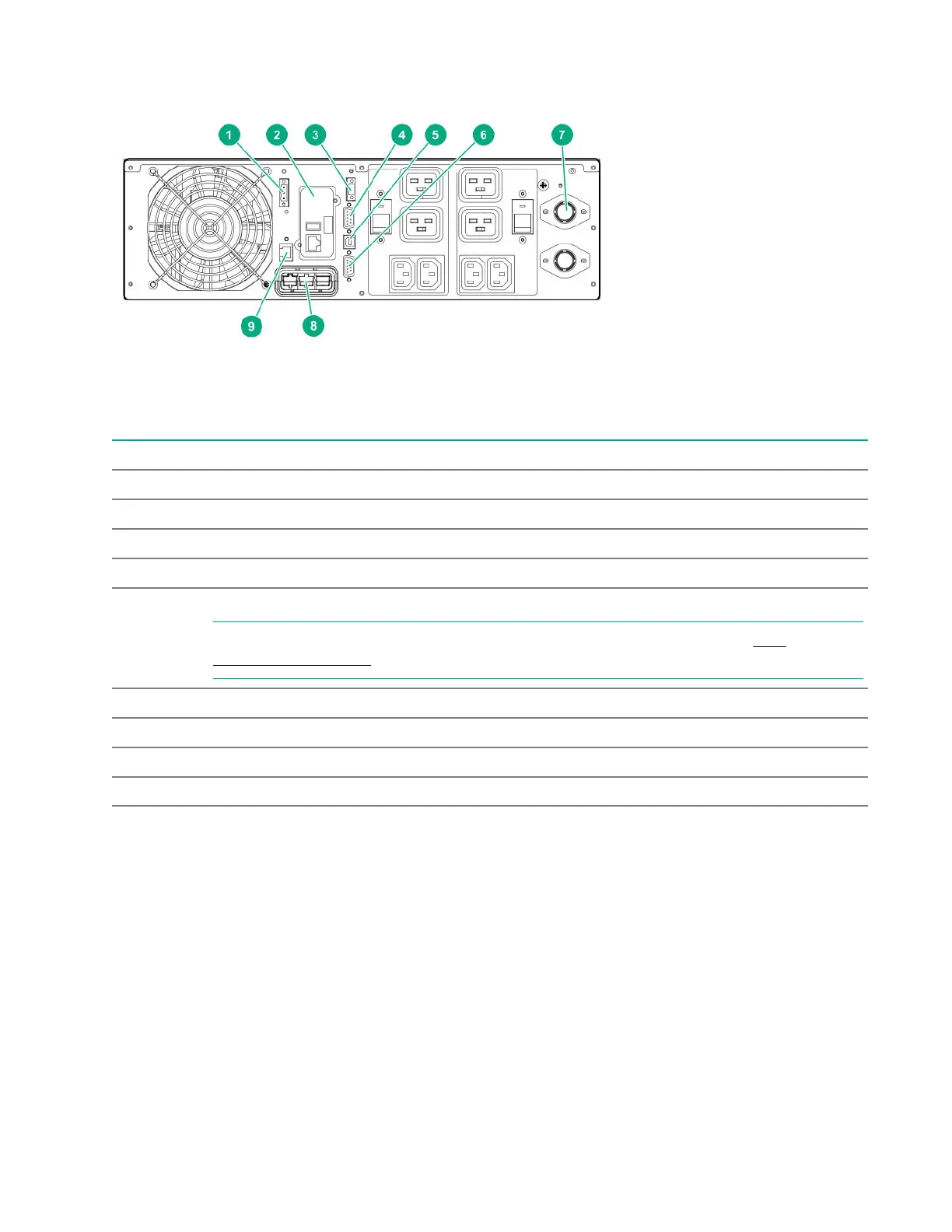

Figure 3: G2 R6000 INTL model
Item Description
1 Remote Power Off (RPO) terminal block
2 1GB UPS Network Management Module
3 Remote On/Off (ROO) terminal block
4 Dry contacts communications port
5 USB communications port
NOTE: This port is used for UPS firmware updates. For more information, see USB
communications port.
6 Serial communications port
7 Power I/O interface
8 ERM to UPS connection
9 Automatic battery recognition port (ERM)
