HPE ProLiant DL385 - Cable Routing: Rear 3 LFF SAS;SATA Drive Option for SAS Expander; Cable Routing: HPE 12 G SAS Expander

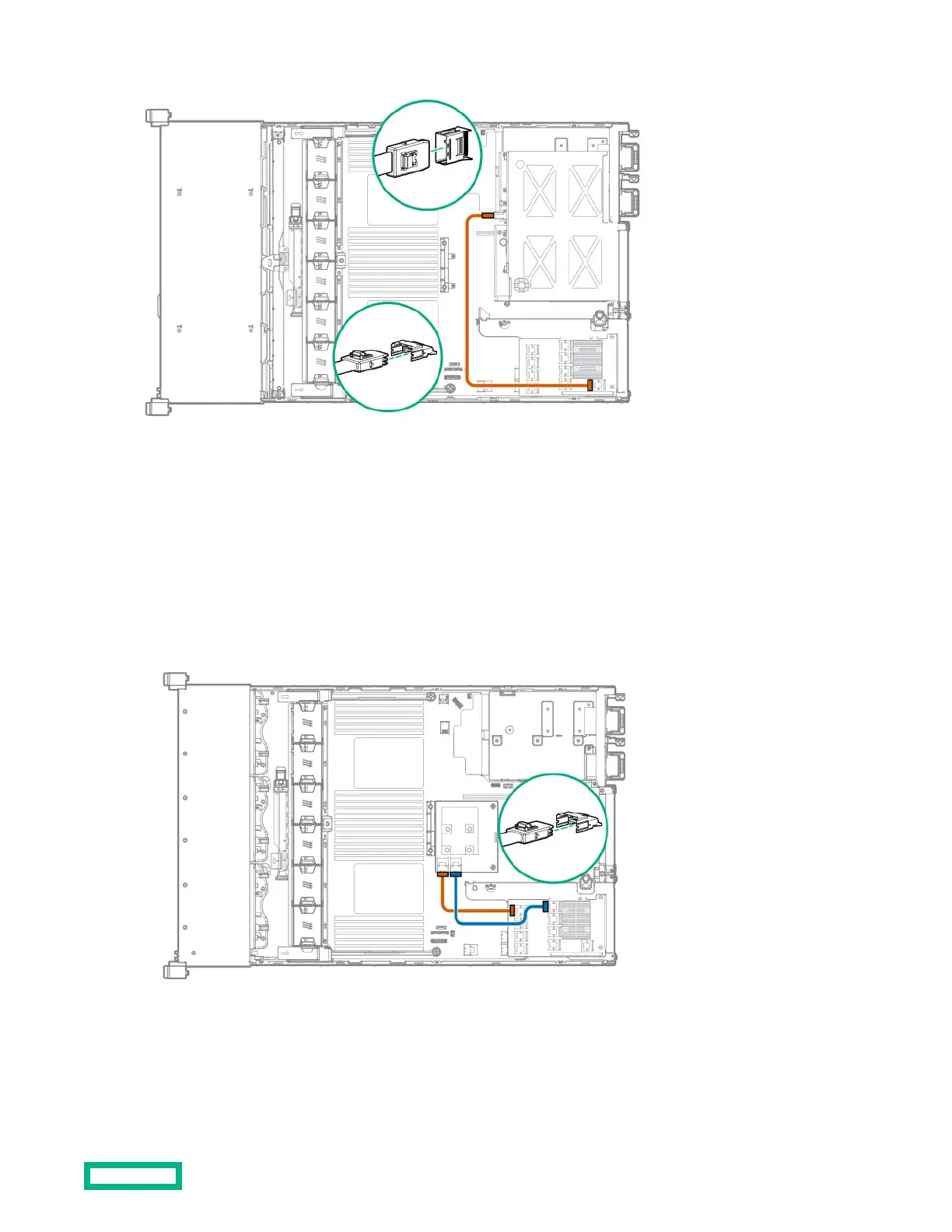

Cable routing: Rear 3LFF SAS/SATA drive option for SAS Expander
Controller option not shown.
Cable routing: HPE 12G SAS Expander
Observe the following:
• Port 1 always connects to port 1 of the controller.
• Port 2 always connects to port 2 of the controller.
SAS expander to a type -a controller
SAS expander to a type -p controller
