Platform components
• A system motherboard that features a PowerPC 440EPx RISC CPU running at 667 MHz, with
integrated peripherals, and provides high performance with low power consumption
• An RJ-45 10/100 Base-T Ethernet system management port that supports switch IP address discovery
and configuration
• One RS-232 serial port with an RJ-45 connector for initial switch setup and factory default restoration,
(the integral LEDs remain unlit at all times)
• A USB port that provides storage for firmware updates, supportsave command output, and storage
for configuration uploads and downloads
• Two hot-swappable, redundant power supply and fan assemblies. There are two fans per power
supply
• Designed for rack mounting in a 19-inch EIA rack (1U high)
• One LED (green/amber) per FC port to indicate status
• One LED (green) for system power
• One LED (green/amber) for system status
• Two Ethernet LEDs (integrated with RJ-45) for speed and activity status
• SEEPROM for switch identification
• Voltage and temperature monitoring
• RTC with battery
Port side of the switch

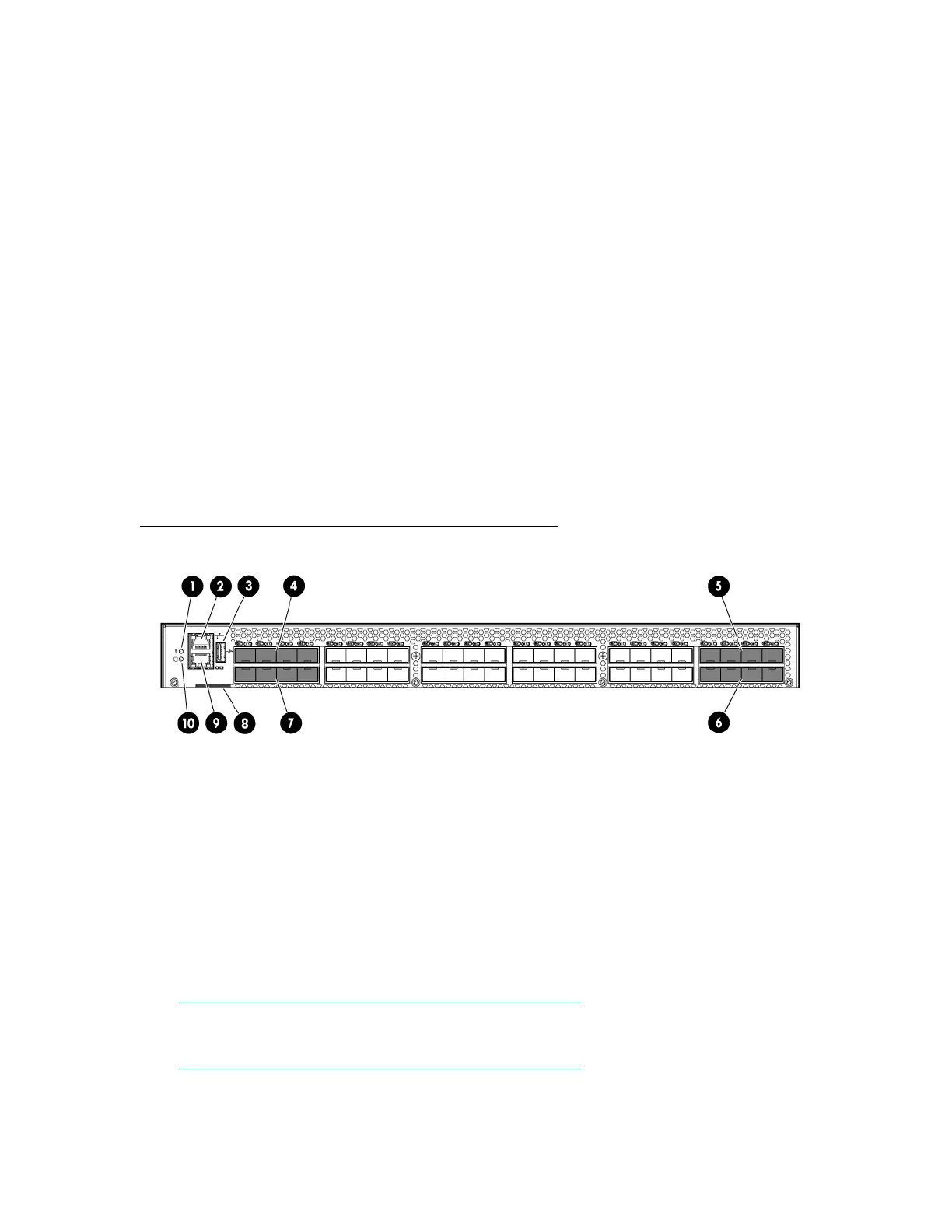

Figure 3: Port side of the HPE SN6000B 16Gb FC Switch on page 13 shows the port side of the
SN6000B 16Gb FC Switch.
1. System status LED 2. Management Ethernet port with LEDs
3. USB port 4. FC ports (0-3)
5. FC ports (40-43) 6. FC ports (44-47)
7. FC ports (4-7) 8. Switch ID pull-out tab
9. Serial console port 10. System power LED
Figure 3: Port side of the HPE SN6000B 16Gb FC Switch
NOTE:
The two LEDs on the serial console port are nonfunctional.
Platform components 13
