Operating HPE 16Gb FC switches
This chapter discusses switch power, LEDs, maintenance, and management.
Powering the switch on and off
Power switches are located on the nonport side of the switch.
If either the SN3000B or SN6000B 16Gb FC switch is mounted in a rack, you must remove the plenum
to access the power switches.
Power is supplied to the switch as soon as the first power supply is connected and powered on.
To power the switch off, power off the power supplies present by setting the AC power switch to O. All
devices are returned to their initial state the next time the switch is powered on.
LEDs
The switch LEDs indicate system activity and status. There are three LED states: no light, a steady light,
and a flashing light. Flashing lights can be slow, fast, or flickering. The lights are green or amber.
The LEDs can flash green or amber during boot, POST, or other diagnostic tests. This is normal; it does
not indicate a problem unless the LEDs do not indicate a healthy state after all boot processes and
diagnostic tests are complete.

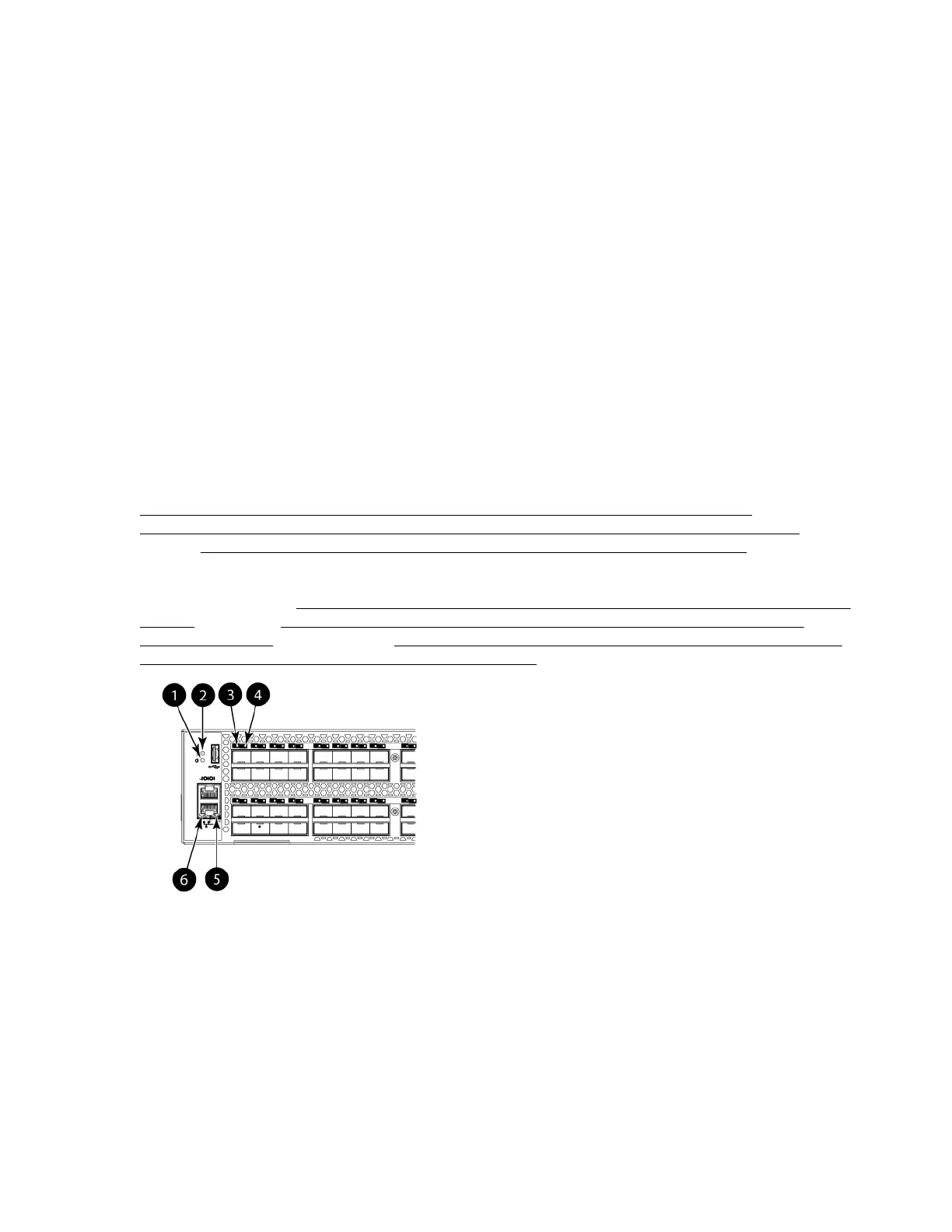

Figure 33: LEDs on the port side of the HPE StoreFabric SN6500B 16Gb FC Switch on page 54,
Figure 34: LEDs on the port side of the HPE StoreFabric SN4000B SAN Extension Switch on page
55 , and Figure 37: Port side of the HPE SN6000B and SN3000B 16Gb FC switches on page 59
show the LEDs on the port side of the switches. The port status LEDs for the FC ports are arranged left to
right, and correspond to the upper and lower ports in each pair. The LEDs on the nonport side of the
switches are shown in Figure 35: LEDs on nonport side of the HPE StoreFabric SN6500B 16Gb FC
Switch on page 55, Figure 36: LEDs on nonport side of the HPE StoreFabric SN4000B SAN
Extension Switch on page 56 , and Power supply/fan assembly status LEDs on the nonport side
of the HPE SN6000B and SN3000B 16Gb FC switches .
1. System power LED 2. System status LED
3. FC port status LED (port 0) 4. FC port status LED (port 4)
5. Ethernet port activity LED 6. Ethernet port speed LED
Figure 33: LEDs on the port side of the HPE StoreFabric SN6500B 16Gb FC Switch
54 Operating HPE 16Gb FC switches
