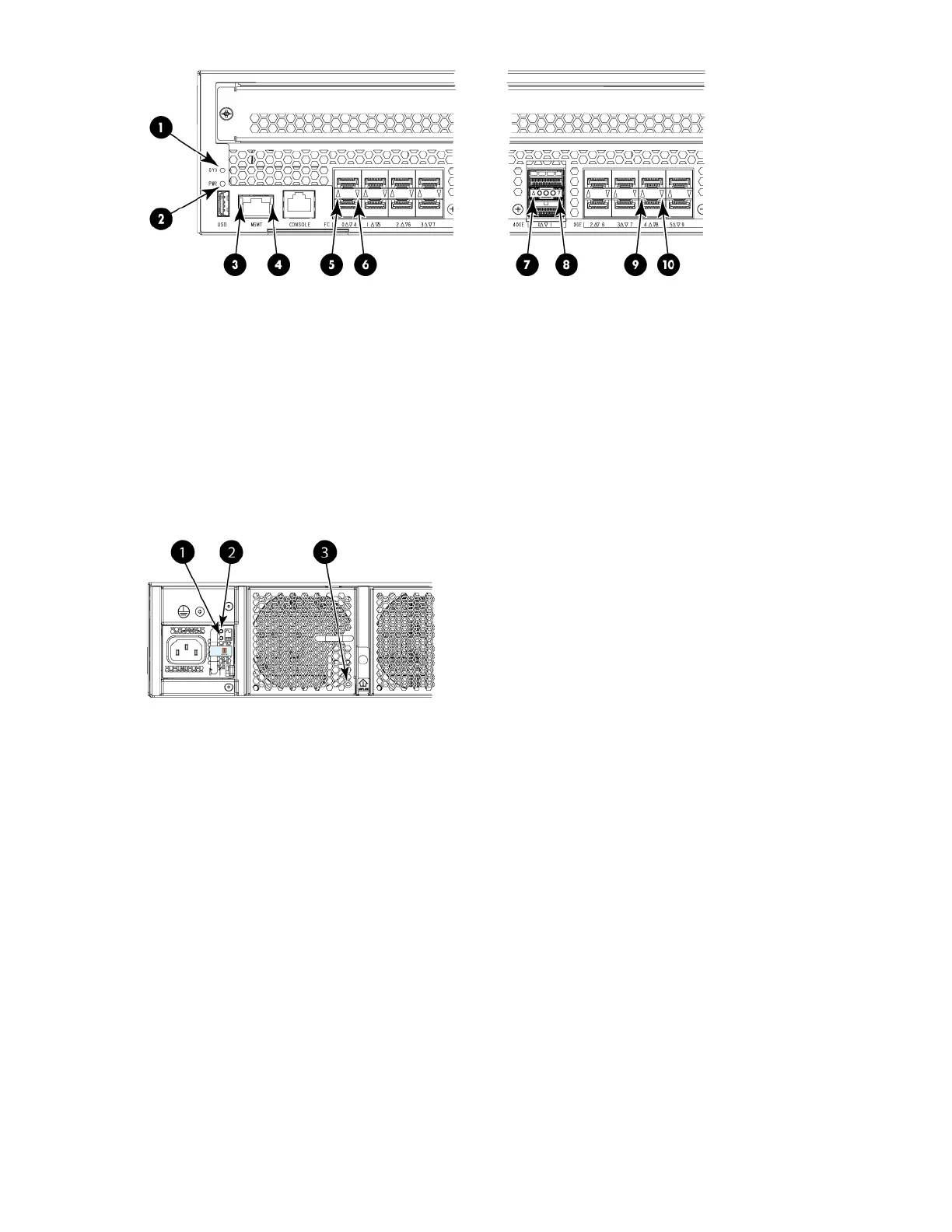

1. System status LED 2. System power LED
3. Ethernet link LED 4. Ethernet status LED
5. FC port status LED (port 0) 6. FC port status LED (port 4)
7. 40 GbE FCIP port status LED (port 0) 8. 40 GbE FCIP port status LED (port 1)
9. 1/10 GbE FCIP port status LED (port 4) 10. 1/10 GbE FCIP port status LED (port 8)
Figure 34: LEDs on the port side of the HPE StoreFabric SN4000B SAN Extension Switch
1. Power supply DC status LED 2. Power supply AC status LED
3. Fan status LED
Figure 35: LEDs on nonport side of the HPE StoreFabric SN6500B 16Gb FC Switch
Operating HPE 16Gb FC switches 55
