Port side of the switch

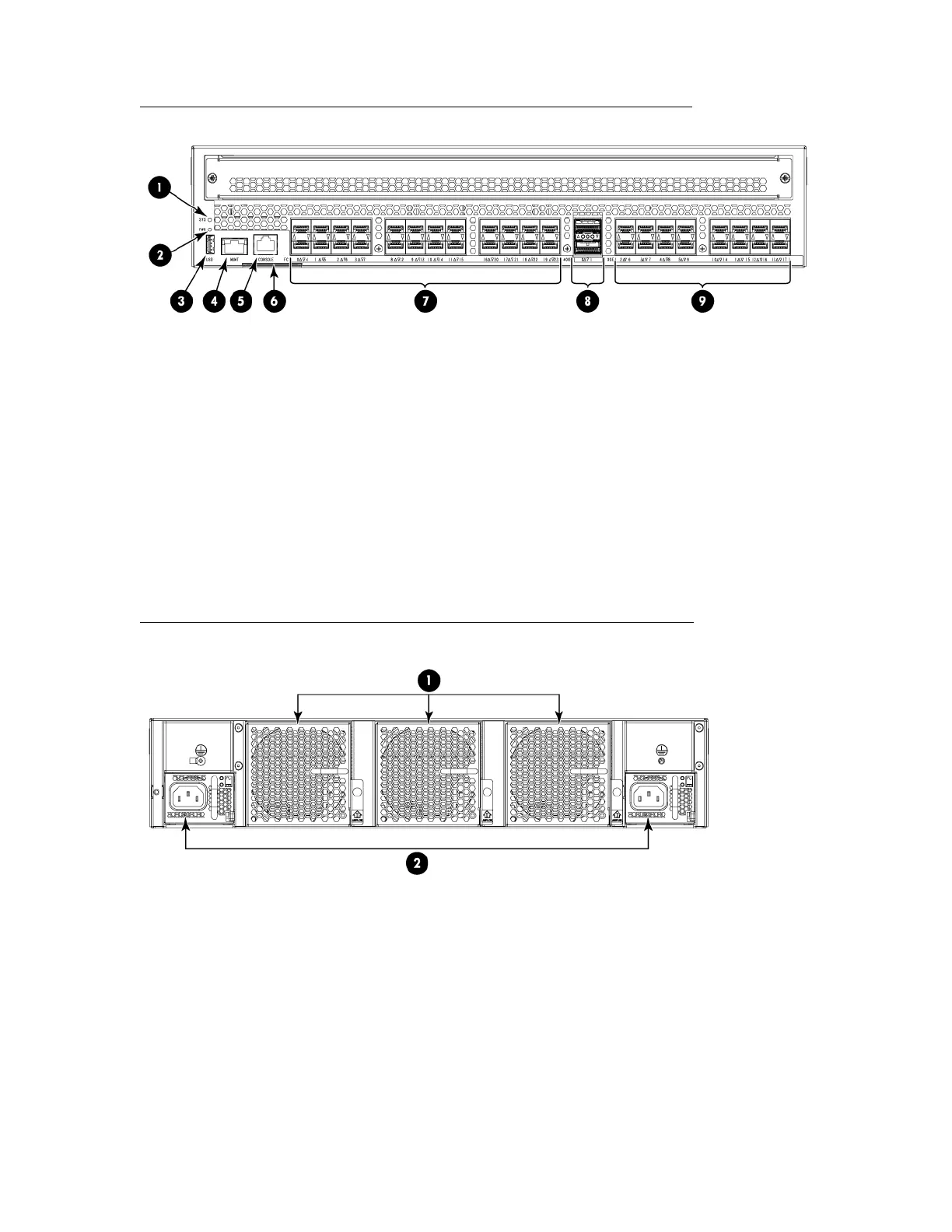

Figure 9: Port side of the HPE StoreFabric SN4000B SAN Extension Switch on page 22 shows the
port side of the StoreFabric SN4000B SAN Extension Switch.
Figure 9: Port side of the HPE StoreFabric SN4000B SAN Extension Switch
1. System status LED 2. Power Status LED
3. USB port 4. Ethernet management Port
5. Console port (RJ-45) 6. Switch ID pull-out tab
7. 16 GbE FC ports (24) 8. 40 GbE FCIP ports (QSFP) (2)
9. 1/10 GbE FCIP ports (16)
Nonport side of the switch
Figure 10: Nonport side of the StoreFabric SN4000B SAN Extension Switch on page 22 shows the
nonport side of the StoreFabric SN4000B SAN Extension Switch.
Figure 10: Nonport side of the StoreFabric SN4000B SAN Extension Switch
1. Fan FRUs 2. Power supply FRUs with integral fans
Software options
The following optional software kits and licenses are available:
• HPE StoreFabric SN4000B 10Gb WAN Rate Upgrade LTU
• HPE StoreFabric SN4000B 40Gb WAN Rate Upgrade LTU
• HPE StoreFabric SN4000B FICON Accelerator LTU
