Port side of the switch

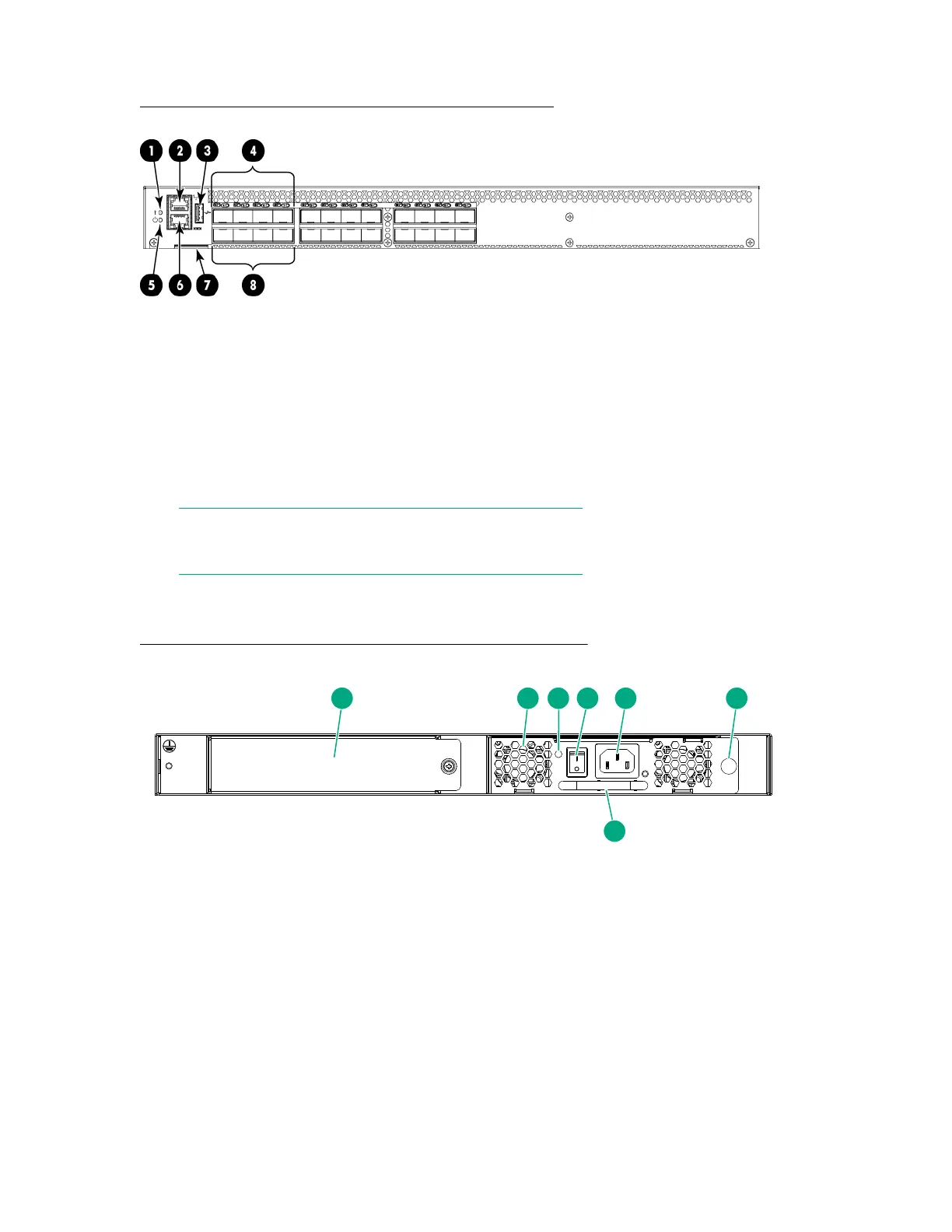

Figure 6: Port side of the HPE SN3000B 16Gb FC Switch on page 18 shows the port side of the
SN3000B 16Gb FC Switch.
Figure 6: Port side of the HPE SN3000B 16Gb FC Switch
1. System status LED 2. Management Ethernet port with LEDs
3. USB port 4. FC ports (0-3)
5. System power LED 6. Serial console port
7. Switch ID pull-out tab 8. FC ports (4–7)
NOTE:
The two LEDs on the serial console port are nonfunctional.
Nonport side of the switch
Figure 7: Nonport side of the HPE SN3000B 16Gb FC Switch on page 18 shows the nonport side of
the SN3000B 16Gb Switch.
Figure 7: Nonport side of the HPE SN3000B 16Gb FC Switch
1. Filler panel (Optional Power supply and fan
assembly can be added in this slot)
2. Power supply and fan assembly #1
3. Power supply and fan assembly LED 4. On/off switch
5. Power plug receptacle 6. Thumbscrew
7. Handle
18 Port side of the switch
