Figure 26: Assembling the outer rails
5. Use the screw type #8-32 x 5/16-inch (in the screw holes marked 16) to attach the two inner rails to
the switch. Eight screws are required for each rail.
Inner rails attachment shows how the inner rails are attached to the switch.

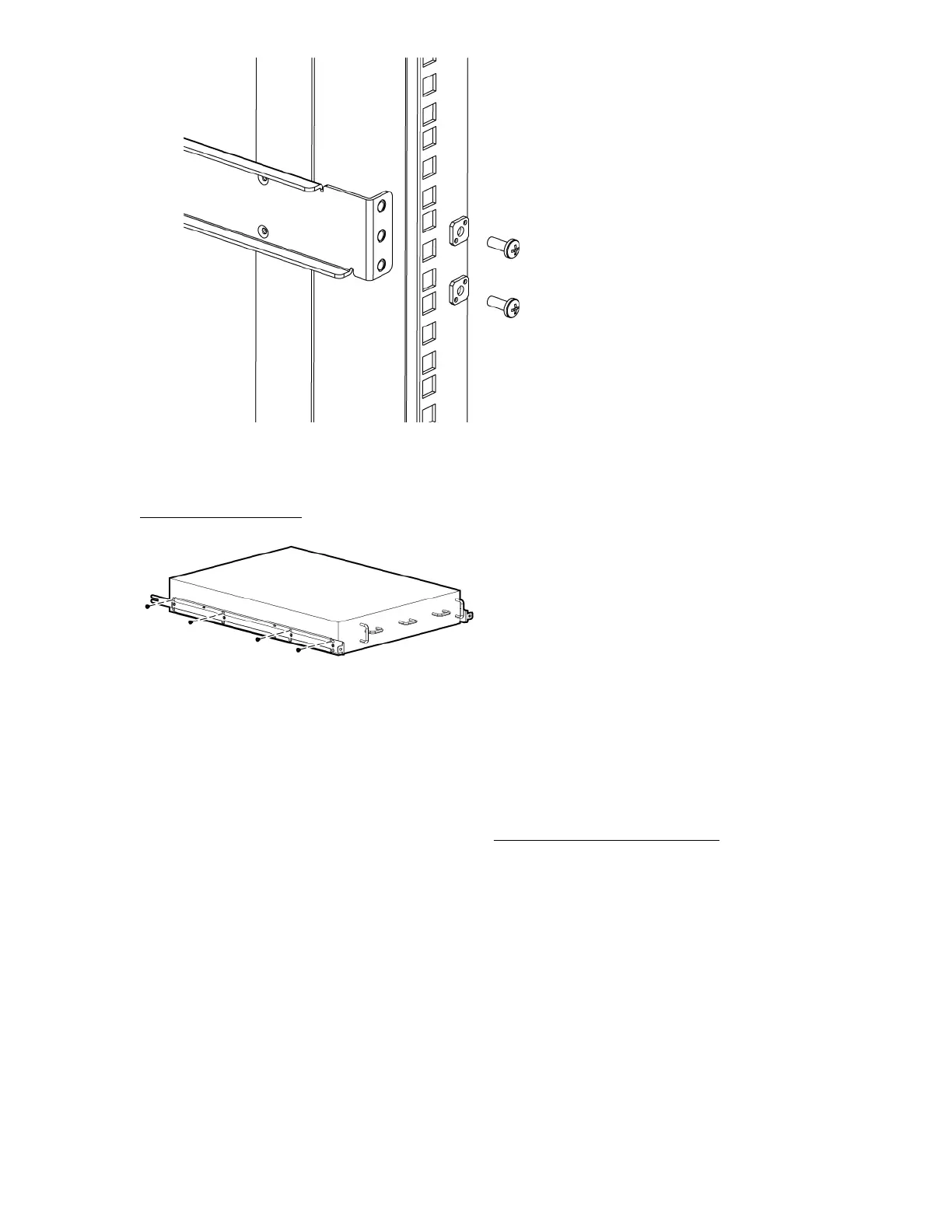

Figure 27: Inner rails attachment
Securing the switch to the outer rails
Procedure
1. Insert the switch with the attached inner rails to the outer rails.
2. Insert the switch into the rack and install one #10-32 x 1/2-inch Phillips panhead screw with captive
star lock washer. Repeat for the other side. See Figure 28: Securing the switch on page 41.
40 Securing the switch to the outer rails
