3. Attach the rear mounting brackets to the rear rack uprights.
• Assemble each of the brackets using two #10-32 x 1/2-inch Phillips panhead screws with captive
star lock washers and two #10 adapter washers, as shown in Installing the rear mounting
brackets.

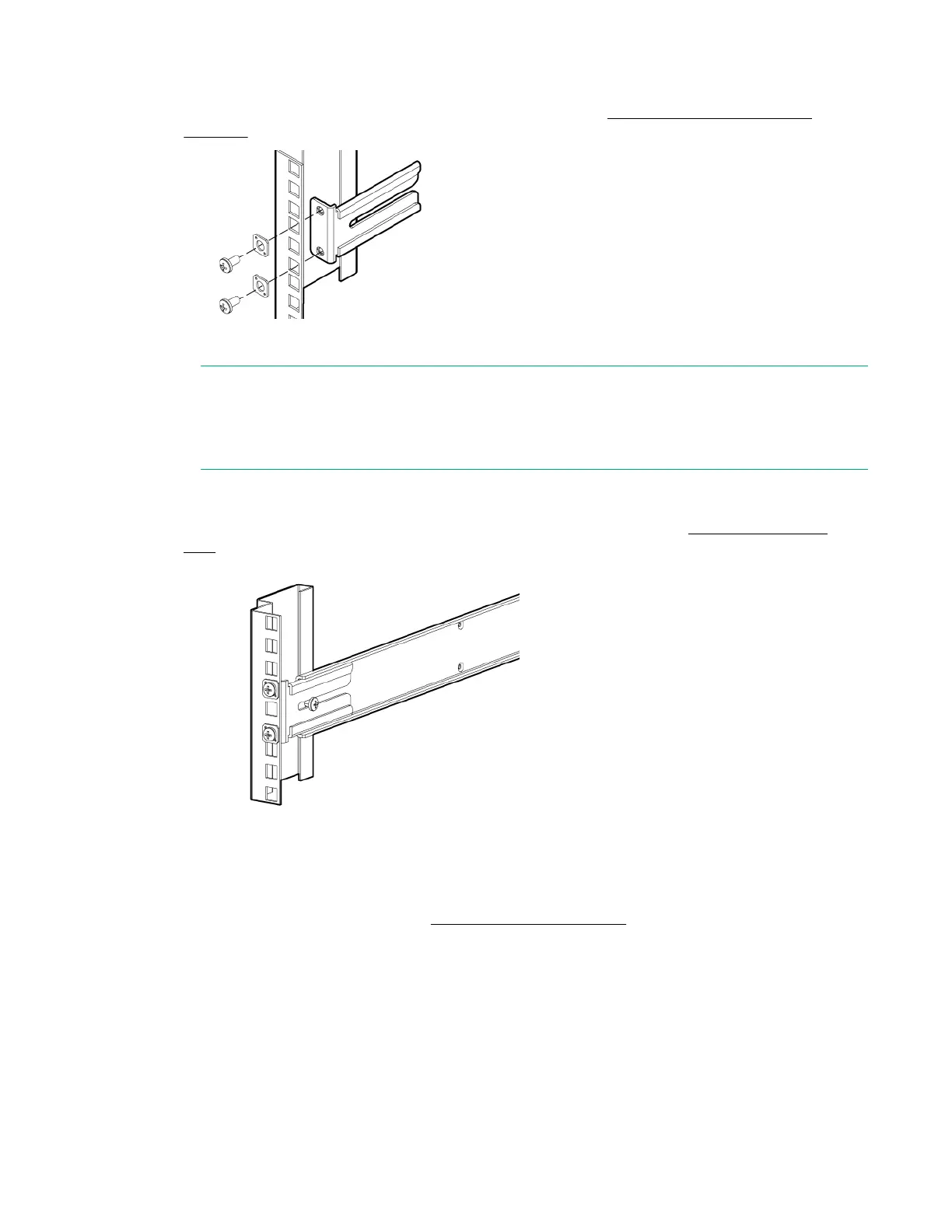

Figure 24: Installing the rear mounting brackets
NOTE:
The SAN Switch Rack Mount Kit contains outer rails labeled Left and Right to designate the left
side and right side of the device or cabinet as viewed from the front of the cabinet. The inner rails
are interchangeable and can be used on either side of the switch.
4. Assemble the outer rails as follows:
a. Attach the left outer rail and right outer rail to the rear mounting brackets using the #10-32 x 1/2-
inch Phillips panhead screws with captive star lock washers, as shown in Installing the outer
rails. Four screws are required for attaching the outer rails.
Figure 25: Installing the outer rails
b. Install two #10-32 x 1/2-inch Phillips panhead screws with captive star lock washers and two #10
adapter washers in the upper and lower holes on the right rail. Then, install two #10-32 x 1/2-inch
Phillips panhead screws with captive star lock washers and two #10 adapter washers in the upper
and lower holes on the left rail. See Assembling the outer rails.
Installing and configuring HPE 16Gb FC switches 39
