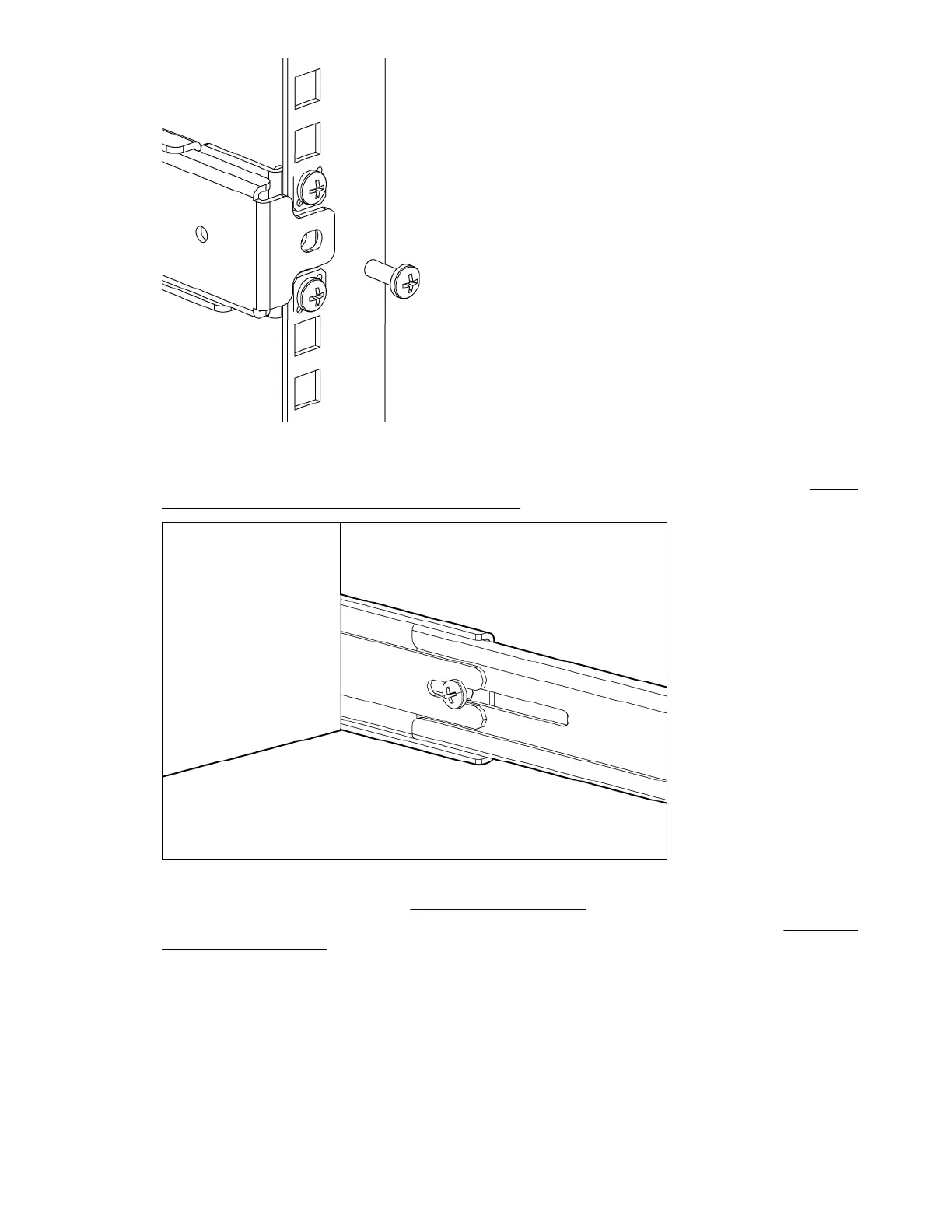

Figure 28: Securing the switch
3. Install one #10-32 x 1/2-inch Phillips panhead screw with captive star washer through the front of the
inner rail, through the rear bracket, and secure to the outer rail. Repeat for the other side. See Figure
29: Securing the front of the switch to outer rails on page 41.
Figure 29: Securing the front of the switch to outer rails
4. Tighten the screws as mentioned in Installing the outer rails.
5. Verify that the switch power and status LEDs on the port side of the switch are green. See Figure 30:
LEDs on the port side on page 42.
Installing and configuring HPE 16Gb FC switches 41
