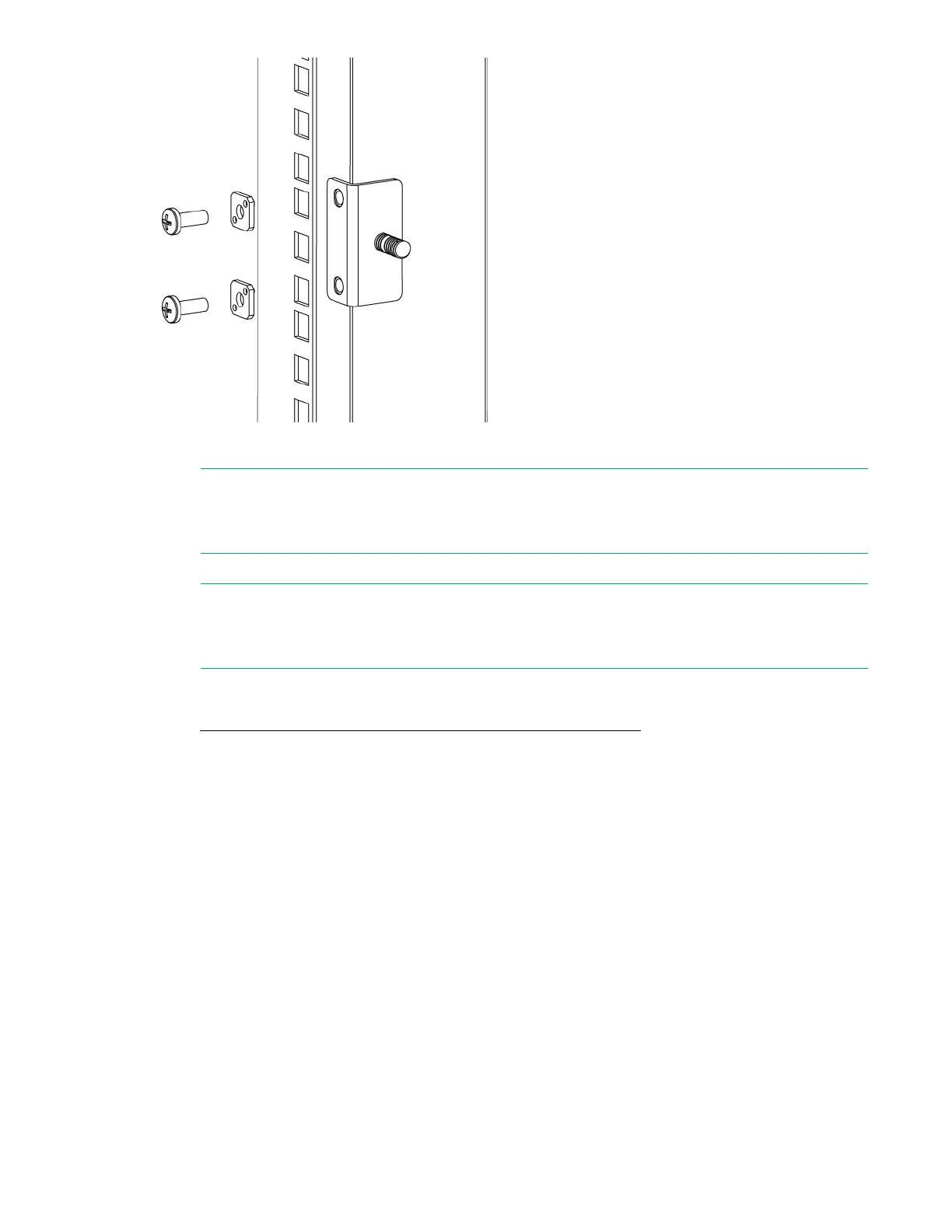

Figure 11: Installing the rear mounting brackets (HPE 10000 Series Rack)
NOTE:
The SAN Switch Rack Mount Kit contains rails labeled Left and Right to designate the left side
and right side of the switch or cabinet, as viewed from the front of the cabinet.
4. Assemble the outer rails as follows:
NOTE:
For switches with Port Side Air Intake, attach Left outer rail to the right side of the rack and Right
outer rail to the left side of the rack.
a. For switches with Port Side Air Intake, attach the left outer rail and right outer rail to the rear
mounting brackets using two 1/4-20 hex with captive star lock washers attached loosely, as shown
in Figure 12: Installing the outer rails (HPE 10000 Series Rack) on page 30. Do not tighten the
nuts.
Installing and configuring HPE 16Gb FC switches 29
