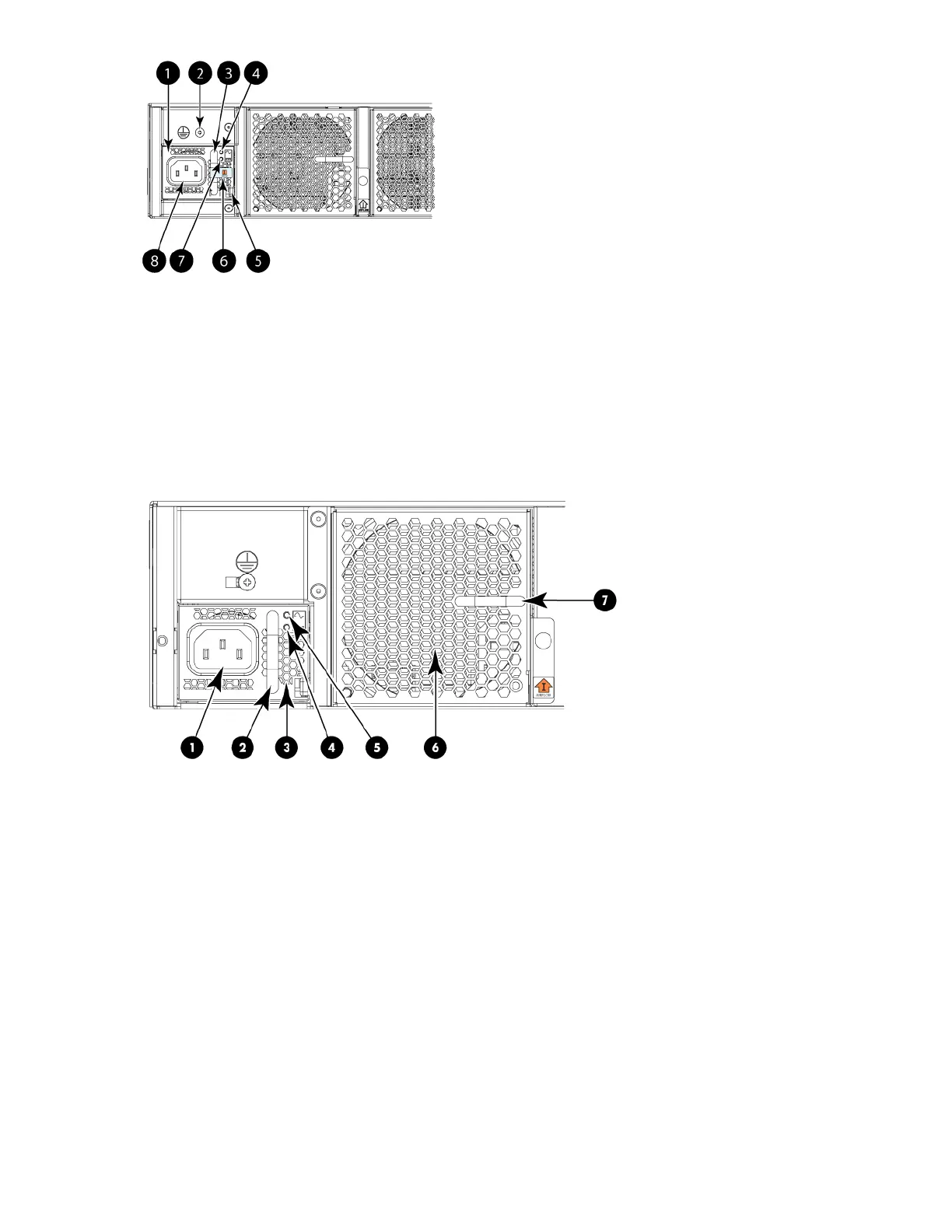

HPE SN6500B

1. Power supply #2 2. Grounding screw
3. Handle 4. AC input status LED
5. Locking tab 6. Airflow label
7. DC output status LED 8. Power cord receptacle
Figure 39: HPE StoreFabric SN6500B 16Gb FC Switch power supply
1. AC power socket 2. Handle
3. Integral fan air inlet 4. DC status LED
5. AC status LED 6. Fan air inlet
7. Handle
Figure 40: HPE StoreFabric SN4000B SAN Extension Switch power supply
66 Operating HPE 16Gb FC switches
