FC53-Li/FC53-Lc/FC53-Ri/FC53-Rc User Manual
Rev.2.0
This is the name requested when executing the select job command. Job creation is done
through the Format Designer.
Note: After selecting a job in producing mode, a short period of time (1 second) appears,
during which printing will be disabled while the system will be updated to print the new
image.
1.5 Retrieving and Downloading Jobs
There are 3 methods to download job information:
Use the software, Format Designer.
Use Format Designer (for networking) and a direct link to the PC.
Use a USB flash drive.
Use a USB Flash Drive
Once the required image is loaded on the USB flash drive, the relevant image can be
downloaded to the local database of FC53-Li/FC53-Lc/FC53-Ri/FC53-Rc.

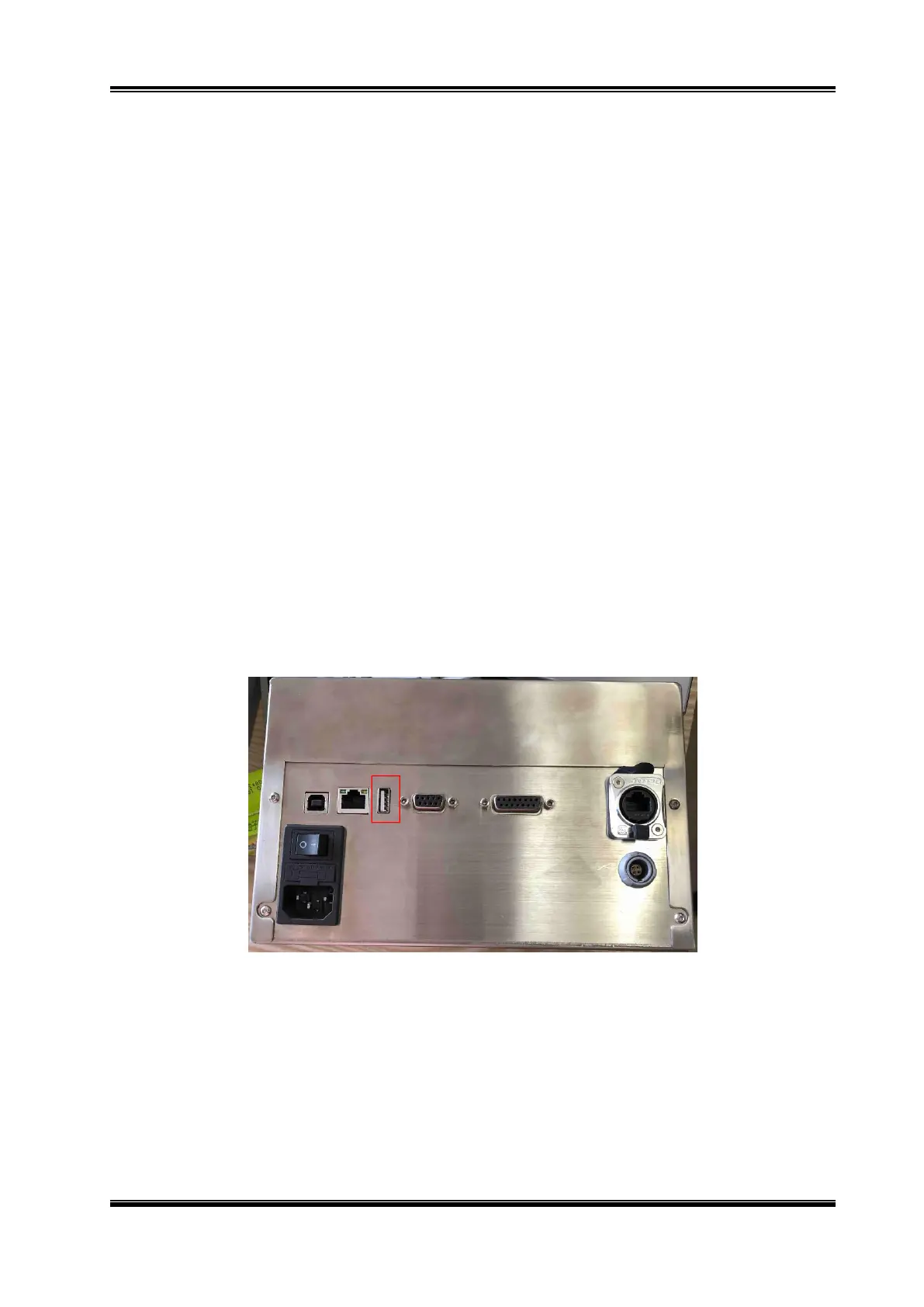

1. Insert the pre-loaded USB flash drive into the USB connector on the back of the controller.
To Next Page
