FC53-Li/FC53-Lc/FC53-Ri/FC53-Rc User Manual
Rev.2.0
6. Interface Function Definition/ Signal Function
Definition

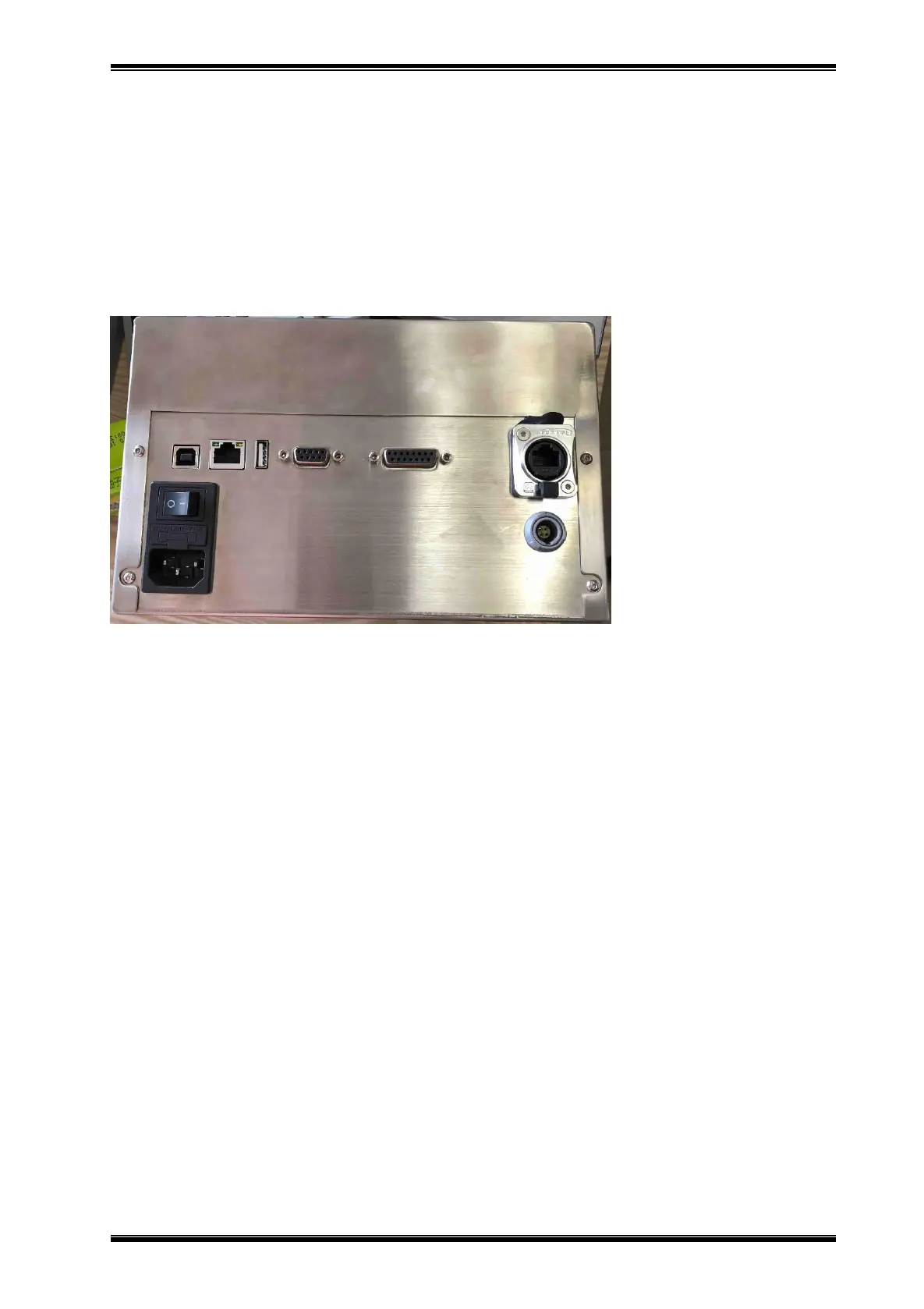

6.1 Controller Interfaces
① Interface Type
1. USB-B type interface
2. RJ-45 Ethernet interface
3. USB-A type interface
4. RS-232 DB9 serial communication interface
5. External input / output DB15 control connector interface
6. RJ-45 water-proof Ethernet interface
7. DC: 24V power connection port
8. AC: 220V mains input port, fuse protection box, power switch
Precautions:
When installing D-type connectors 4, 5 and DC power connector 7, do not supply power to the
device without ensuring that the connection is secure!
②Interface Function and Signal Definition
1. USB_Device 2.0 High Speed, transmission bandwidth 480Mbps
2. RJ-45 10M/100Mbps （IEEE802.3 10/100BASE-T）
3. USB_Host 2.0 High Speed, transmission bandwidth 480Mbps
4. RS-232 communication, baud rate can be changed
5. External input / output control DB15 cable function:
(1) Connect to the "Start Print" input port
(2) Allow access to "Fault" and "Warning Status" output information
(3) Access to user-configurable digital input/ output
To Next Page
