MINIKEY User Manual Reference Section
Page 65 of 66 HSA SYSTEMS
Fuses
The MiniKey controller has 4 fuses, 2 on the outside and 2 on the inside.
On the outside are the mains fuses 5x20mm glass 2A T
The controller can supply external equipment with 5 and 12V DC from the internal
power supply.
F1 is the 5V fuse and F2 is the 12V fuse both are 0,5A SMD Fast acting. The value of
the fuses is related to the power available from the PCB. Use only 0,5A - if you need
more power you must use an external power supply.
F1 and F2 are located on the inside of the MiniKey right behind the USB connector.
You can buy the fuses from HSA or locally, if you choose locally make sure you get
the right fuses, warranty does not cover replacement of burned PCB’s because of
wrong fuses.

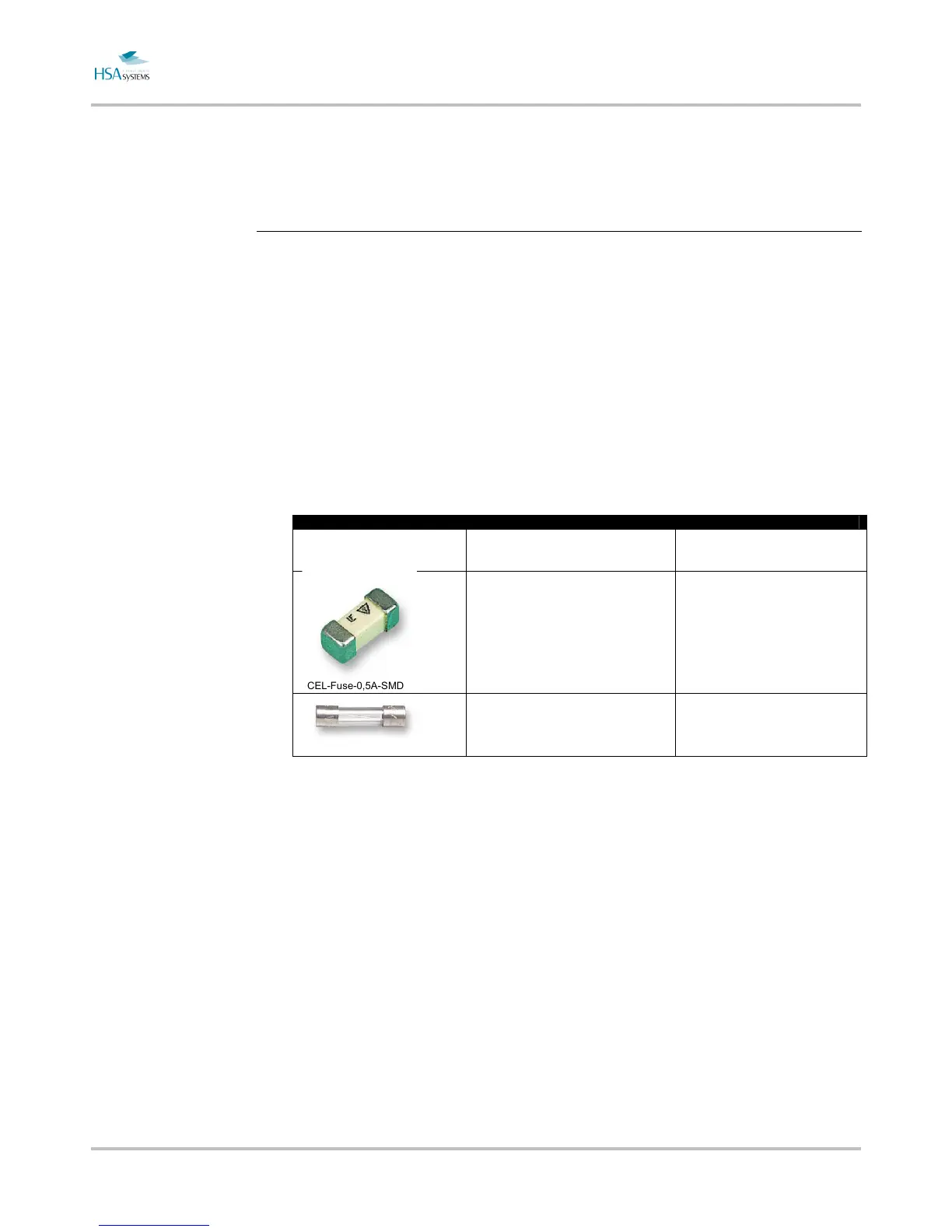

Part numbers
HSA
FARNELL
MOUSER
ACEL-Fuse-0,5A-SMD 9922156 576-0451.500MRL
ACEL-Fuse-2A-5x20 1123244 504-BK/S506-2-R
